  5. Keystone 12315
63 watt 120/277 volt Exclusionary Mogul Screw Base 3000K Natural White Non-Dimmable LED
Click to view larger photo
Click to watch video
Keystone Ballasts

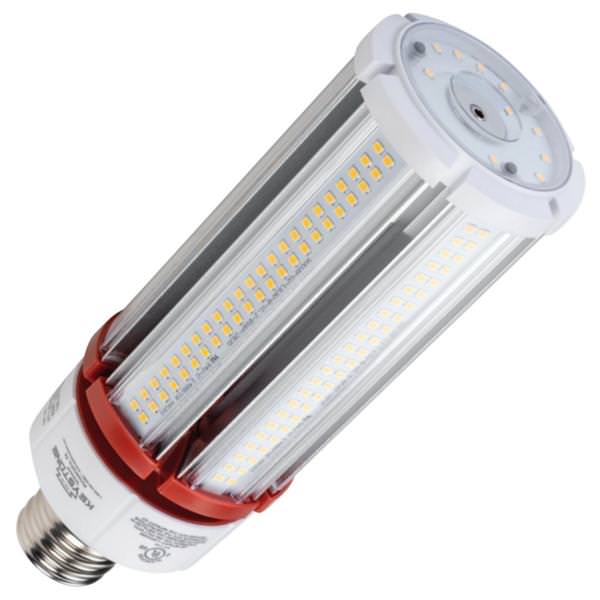

Keystone LED Light Bulb (12315 / KT-LED63HID-EX39-830-D /G3)

63 watt - 120/277 volt - Exclusionary Mogul Screw (EX39) Base - 3,000K - Natural White - Ballast Bypass - Smart Port - DirectDrive - Non-Dimmable

$116.99
  Retail: $171.38
Quantity:
Should ship by September 19
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 250 watt
Incandescent Bulb
Ballast Bypass /
Direct Wire
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT12315
Manufacturer: Keystone
Manufacturer Part #: 12315
Manufacturer Description:

KT-LED63HID-EX39-830-D /G3
UPC Code: 843654123158
Case Size: 16    ($1,871.84/Case)
The pricing of $116.99 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: 8,820 lumens
Energy Used: 63 watts (replaces 250 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Base Type: Exclusionary Mogul Screw (EX39)
Color / Finish: Natural White
Color Temperature: 3,000K
CRI: 80
Length: 10.4 inches
Width: 3.3 inches
Beam Angle: 360°
LpW: 140
Applications
Suitable for use in a fully enclosed fixture
Features
On the top of the lamp is a low-voltage AUX port for Smart Port LED sensors
Not for use with standard dimmers
No mercury used
Instant startup
Operating temperature is -40ºC/-40ºF to 60ºC/140ºF
Integral driver eliminates the need for external driver or ballast; includes 4kV surge protection
Manufacturer's Warranty
5 Years
