26 watt 120/277 volt 11" 3000K Dimmable Field Selectable LED Retrofit Kit
Click to view larger photo
Click to watch video
Keystone Ballasts

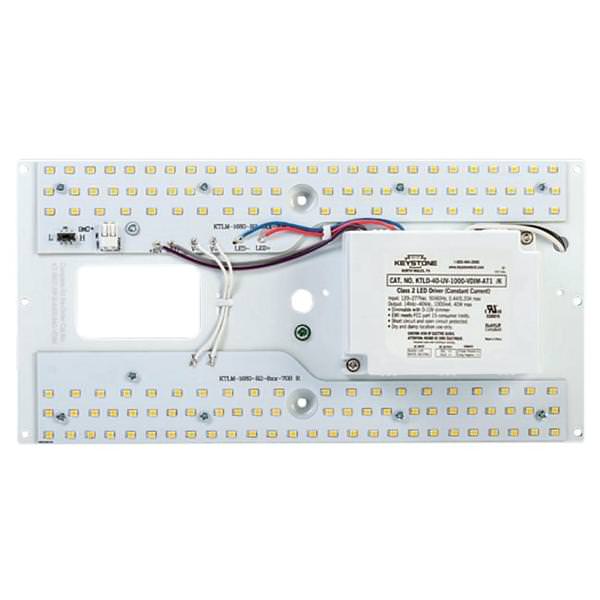

Keystone LED Retrofit Kit (01838)

26 watt - 120/277 volt - 11" - 3,000K - Dimmable - Field Selectable - Future Fit

$86.99
  Retail: $134.75
Quantity:
Should ship by September 26
UL Classified
RoHS Compliant
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT01838
Manufacturer: Keystone
Manufacturer Part #: 01838
Manufacturer Description:

KT-RKIT-RP-11-4000-830-VDIM
UPC Code: 890949018385
Case Size: 20    ($1,739.80/Case)
The pricing of $86.99 is per item, not per case
Light Output: 3,030 lumens
Energy Used: 26 watts
Average Lifetime: 54,000 hours
Volts: 120/277
Color / Finish: Natural White
Color Temperature: 3,000K
Length: 11 inches
Width: 5.5 inches
Beam Angle: 120°
LpW: 117
2nd Mode: 3,850 lumens (112 LpW), 34.5 watts
Applications
For use in Class 2 lighting systems
Type 1 Outdoor, suitable for dry and damp locations
Features
Can be switched to either 3000 lumens or 4000 lumens output via a toggle switch
Dimmable with 0-10V dimmer
Highly reflective white solder mask
Low profile WAGO push connectors
UL Recognized Components
3-step MacAdam color binning
Maximum board temperature at Tc point is 85ºC
Over current, short circuit, and open circuit protection
Up to 194ºF/90ºC maximum case temperature
Includes
(1) LED Driver
(1) LED Module
(1) Metal Pan
Mounting Accessories (mounting hardware, and wiring hardware)
Manufacturer's Warranty
10 Year
