Part #:
|
KT01790
|
|
Manufacturer:
|
Keystone
|
|
Manufacturer Part #:
|
01790
|
|
Manufacturer Description:
|
KT-RKIT-24-5000-850-VDIM /G2
|
|
UPC Code:
|
890949017906
|
|
Case Size:
|
20
($2,289.80/Case)
|
|
The pricing of $114.49 is per item, not per case
|
|
|
|
|
|
Size:
|
2' x 4'
|
|
Light Output:
|
5,000 lumens
|
|
Energy Used:
|
44
watts
|
|
Average Lifetime:
|
36,000 hours
|
|
Volts:
|
120/277
|
|
Color / Finish:
|
Daylight
|
|
Color Temperature:
|
5,000K
|
|
Length:
|
43.1 inches
|
|
Width:
|
0.7 inches
|
|
Height:
|
0.7 inches
|
|
Beam Angle:
|
120°
|
|
LpW:
|
114
|
|
|
Applications
|
| For use in Class 2 lighting systems |
| Type 1 outdoor, suitable for dry and damp locations
|
|
|
|
Features
|
| Highly reflective white solder mask |
| Low profile WAGO push connectors |
| UL recognized components |
| 3-Step MacAdam color binning |
| Maximum board temperature at Tc point is 85°C |
| Over current, short circuit, and open circuit protection |
| Up to 194°F/90°C maximum case temperature |

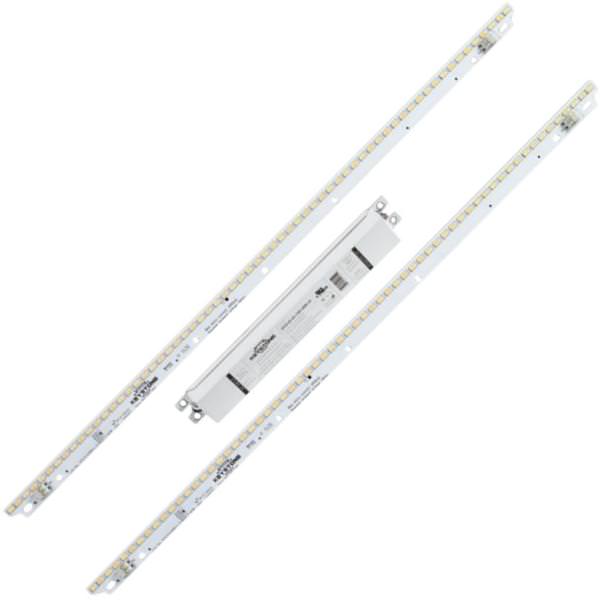

| | Includes |
| LED driver |
| 2 LED modules |
| Mounting accessories (jumper wires, tek screws with rubber grommets, power quick-disconnect)
|
|
|
|
Manufacturer's Warranty
|
|
|
|
|
Related Documents
|
|
|
