Part #:
|
IN14882
|
|
Manufacturer:
|
Intermatic
|
|
Manufacturer Part #:
|
14882
|
|
Manufacturer Description:
|

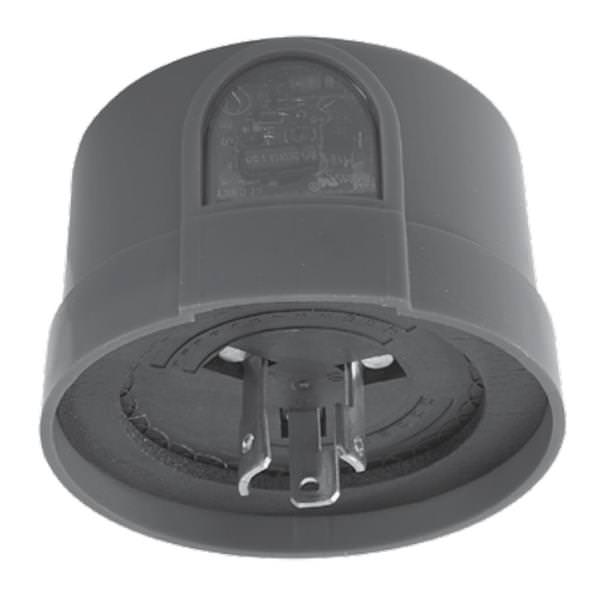

LC2100 Multivoltage Twistlock Photocontrol 105-305VAC, 50/60Hz
|
|
UPC Code:
|
078275148826
|
|
|
|
|
|
Voltage:
|
105-305 VAC, 50/60Hz
|
|
Operating ambient temperature range:
|
-40°F to 158°F (-40°C to 70°C)
|
|
Activation:
|
ON: 1.0 fc with 12-120s delay OFF: 6.0 fc with 2-15s delay
|
|
Construction:
|
Size: 80mm Dia x 66mm H Color: Blue with Transparent Acrylic window Material: UV Polycarbonate cap, Polybutylene base, Neoprene Gasket
|
|
|
Features
|
| Non-drifting silicon light sensor IR filtered for human eye response |
| Bimetal, thermal switch mechanism |
| Delay turn OFF reaction prevents switching OFF from temporary light sources, such as car headlights. |
| Ideal for tungsten or other HID light fixtures |
| ANSI C136.10 compliant |
| UL certified to U.S. (UL773) and Canadian (TIL A15) safety standards |
| 110 Joule MOV surge protection component
|
|
|
|
Manufacturer's Warranty
|
|
|
