60 watt 120 volt LED Driver
Click to view larger photo
Hatch Transformers, Ballasts and Drivers

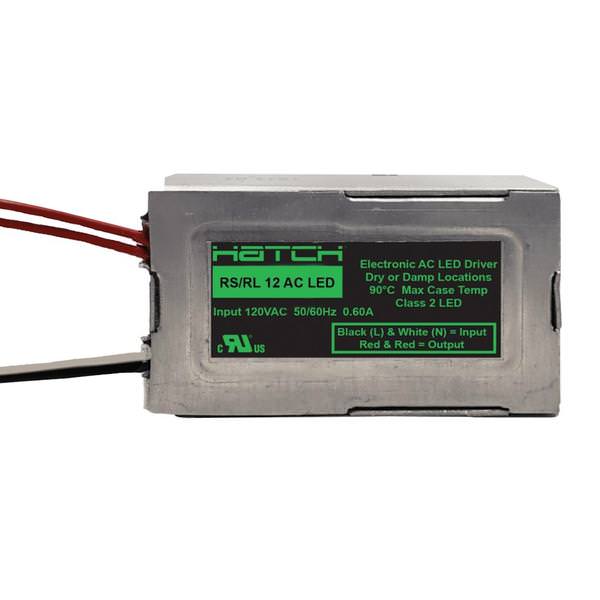

Hatch LED Driver (60504)

60 watt - 120 volt - RL Series - Phase Dimming

$49.99

Quantity:
Should ship by September 16
UL Listed
UL Recognized
RoHS Compliant
Details
Part #: HC60504
Manufacturer: Hatch
Manufacturer Part #: 60504
Manufacturer Description:

RL12-60M-LED

UPC Code: 797281605047
Case Size: 100    ($4,999.00/Case)
The pricing of $49.99 is per item, not per case
Energy Used: 60 watts
Volts: 120
Length: 2.2 inches
Width: 1.2 inches
Height: 0.75 inches
Efficiency: 90%
Output Voltage: 12 VAC
Applications
Suitable for AC LED or halogen loads
Suitable for dry and damp locations
Features
Multiple units supported per circuit
Short circuit protection
Withstanding voltage: I/P – O/P 2kVAC
Surge rating: NEMA SSL1-2010 non-roadway 2.5kV
Operating temperature range: -20°C to 90°C (measured at Tcase)
Minimum Load: 2W/120V
Wide dimming range
Recommended ELV dimming
Related Documents
Spec Sheet
