39 watt 120/277 volt Metal HID Ballast
Hatch Transformers, Ballasts and Drivers

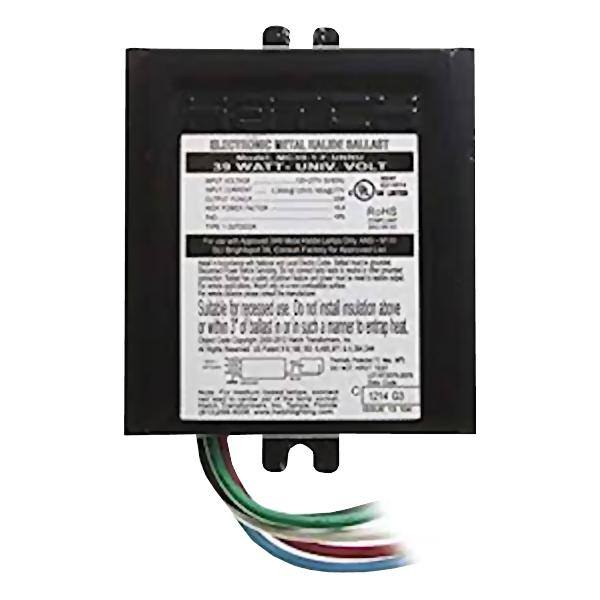

Hatch HID Ballast (21043)

39 watt - 120/277 volt - Metal - Universal Voltage - Thermal Protection

$188.59
  Retail: $261.76
Quantity:
In Stock - Ships Fast!
UL Listed
RoHS Compliant
Details
Part #: HC21043
Manufacturer: Hatch
Manufacturer Part #: 21043
Manufacturer Description:

MC39-1-F-UNNU

UPC Code: 797281210432
Case Size: 50    ($9,429.50/Case)
The pricing of $188.59 is per item, not per case
Energy Used: 39 watts
Volts: 120/277
Length: 3.8 inches
Width: 1.5 inches
Applications
Approved for recessed use
Features
Thermal protection
Micro Processor Controlled
Safety Shut Down Features
Superior Hot Lamp Restrike Characteristic
Low Voltage Lamp Shutdown
Sound Rated: A
Minimum Starting Temperature: -30°C
Maximum Case Temperature: 80°C
Complies with FCC Part 18 (Class B) Consumer limits
Lamp end-of-life protected
Transient Protection Meets ANSI/IEEE C62.41 Cat A
Short Circuit Protection
Open Circuit/No Lamp/ Hot Lamp Shutdown, Retry and Ignition Failure Protection Ignition failure shutdown in 5 seconds followed by multiple timed restrikes with lamp ignition or timed shutdown until power is reset (restrike timing is lamp wattage dependent)
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
