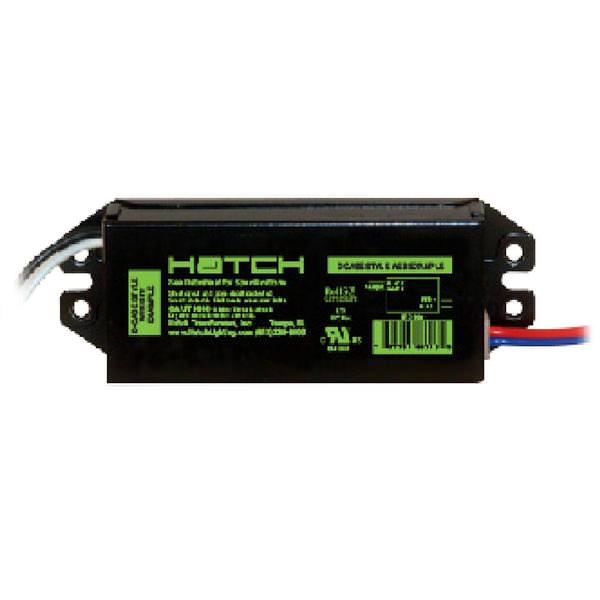

16 watt 120/277 volt Constant Current LED Driver
Click to view larger photo
Hatch Transformers, Ballasts and Drivers

Hatch LED Driver (16035)

16 watt - 120/277 volt - Metal - Constant Current - 0-10V Dimmable

$54.99
  Retail: $65.14
Quantity:
Should ship by September 19
UL Listed
UL Recognized
RoHS Compliant
Works with
approved dimmers
Details
Part #: HC16035
Manufacturer: Hatch
Manufacturer Part #: 16035
Manufacturer Description:

LC16-0350P-120-D

Case Size: 6    ($329.94/Case)
The pricing of $54.99 is per item, not per case
Energy Used: 16 watts
Volts: 120/277
Length: 4.4 inches
Width: 1.6 inches
Height: 1 inch
Weight: 0.5 pounds
Applications
Suitable for wet locations
Features
Short circuit and overload protection
Withstanding voltage: I/P – O/P 2.8kVDC, 2mA
Operating temperature range: -40°C to 90°C (measured at Tcase)
MTBF: 376,000 hours
40°C ambient (
70°C case temp)
Surge voltage rating: L-N 2kV, L/N-GND 4kV
Inrush Current: <7A Max
120VAC for 120V input models, cold start 25°C
Inrush Current: <10A Max
230VAC for Universal input models, cold start 25°C
Output Current tolerance +/- 5%
25°C
FCC Compliant
Manufacturer's Warranty
5 Year Limited
