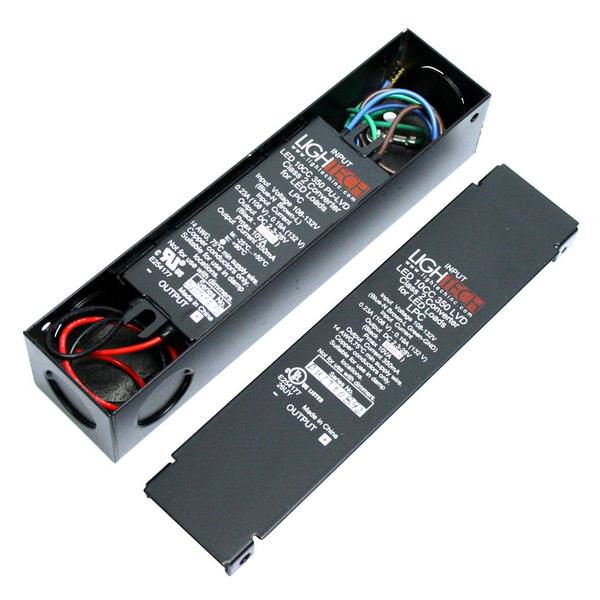

GE LED Driver (66870)
10 watt Output - 120 volt Input - Constant Current - Non-Dimming - Secondary Housing - Lightech
| $29.09 |
| Retail: $34.65 |
Should ship by October 8
Details
| Part #: | GL66870 | ||||||||
| Manufacturer: | GE | ||||||||
| Manufacturer Part #: | 66870 | ||||||||
| Manufacturer Description: |
GELD10D120350LVD 66870 |
||||||||
| UPC Code: | 043168668705 | ||||||||
| Case Size: | 6 ($174.54/Case) | ||||||||
| The pricing of $29.09 is per item, not per case | |||||||||
| Energy Used: | 10 watts | ||||||||
| Volts: | 120 | ||||||||
| Length: | 6.5 inches | ||||||||
| Width: | 1.7 inches | ||||||||
| Height: | 1.4 inches | ||||||||
| Input Frequency (Hz): | 50-60 | ||||||||
| Efficiency (%): | 78 | ||||||||
| Output Type: | DC | ||||||||
| Output Current (mA): | 350 | ||||||||
| Output Voltage Range: | 2.3-28.0 | ||||||||
| Output Wattage Range: | 0.81-9.8 | ||||||||
| Dimmability: | None | ||||||||
| Ambient Temperature Min (°C): | -25° | ||||||||
| Ambient Temperature Max (°C): | 50° | ||||||||
| Case Temperature (°C): | 90° | ||||||||
| Lead Exit Type: | Side | ||||||||
