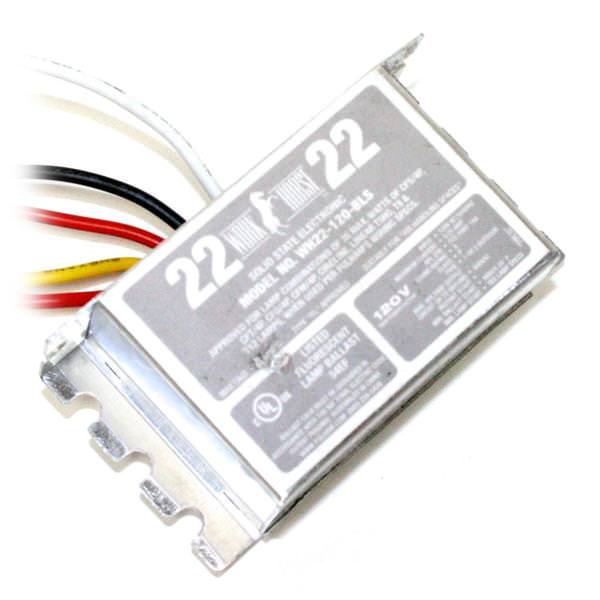

1-2 Lamp 120 volt Workhorse 22 Electronic Ballast
Click to view larger photo
Fulham Ballasts and Drivers

Fulham Fluorescent Ballast with Bottom Leads and Studs (10006)

1-2 Lamp - 120 volt - Instant Start - Workhorse 22 - Electronic

$19.19
  Retail: $25.40
Quantity:
Should ship by February 11
Details
Part #: FB10006
Manufacturer: Fulham
Manufacturer Part #: 10006
Manufacturer Description:

WH22-120-BLS

UPC Code: 872180100067
Case Size: 50    ($959.50/Case)
The pricing of $19.19 is per item, not per case
Volts: 120
Length: 3.3 inches
Width: 1.75 inches
Height: 1 inch
# of Lamps: 1-2
Applications
Please see Lamp Chart PDF below for all applicable lamp types
Features
Maximum Power: 35W
Maximum Current: .32 AMP
Operating Voltage: 120 VAC
Compact with bottom leads & 8/32" studs on bottom
Frequency: 50/60 Hz
Weight: 7 oz.
Related Documents
Fulham Lamp Chart Wiring Diagram WH-LH
