  5. Eiko 11684
70 watt 100/277 volt 5000K Daylight Bronze Square PowerSet Selectable Wattage Dimmable LED Canopy Fixture
Click to view larger photo
EiKO Light Bulbs

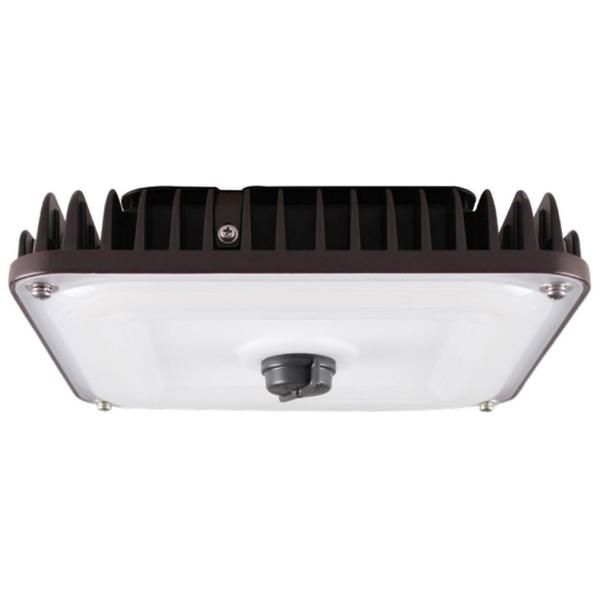

Eiko LED Canopy Fixture (11684)

70 watt - 100/277 volt - 5,000K - Daylight - Bronze - Square - PowerSet - Dimmable

$149.99
  Retail: $165.00
Quantity:
Should ship by September 12
Design Lights Consortium Premium QUALIFIED
UL Listed
RoHS Compliant
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: EK11684
Manufacturer: Eiko
Manufacturer Part #: 11684
Manufacturer Description:

SCS/70W/850/UD
UPC Code: 031293116840
Light Output: 9,725 lumens
Energy Used: 70 watts
Average Lifetime: 72,000 hours
Volts: 100/277
Color Temperature: 5,000K
Length: 10 inches
Width: 10 inches
Height: 2.8 inches
Efficacy: 138 LpW
Ambient Operating Temp Rang: -40° C (-40° F) to 50° C (122° F)
Applications
Suitable for wet locations
Entryways
Garages
Plazas
Utility Closets
Public Restrooms
Eaves
Features
0-10V dimming
Quick mount design simplifies installation
Standard Z10 receptacle simplifies adding controls
Low profile is ideal in applications with low mounting heights
PowerSet feature allows for multiple “set and forget” lumen stops
IP65 rated
IK10 Impact Rated
Die-cast aluminum construction
Impact-resistant polycarbonate lens
1/2” NPS entry point for conduit and accessories
3/4” NPS pendant mount
Quick mount surface bracket included
Manufacturer's Warranty
5 Year Limited
Related Documents
Instructions
Spec Sheet
