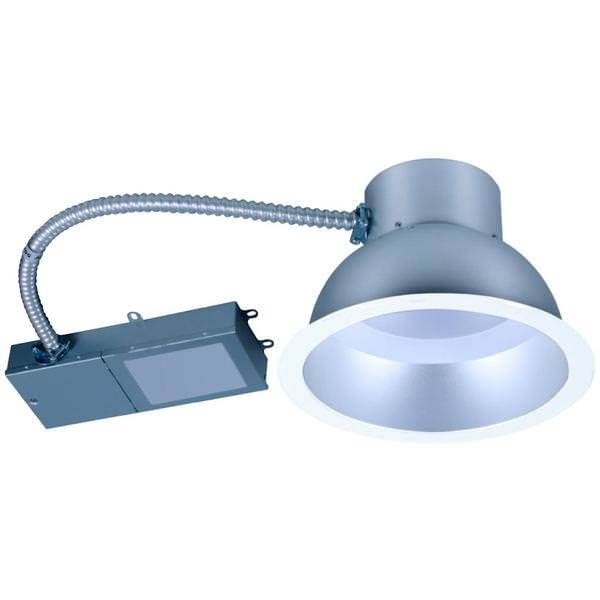

8" 12 watt 100/277 volt 4000K Dimmable Down Light Retrofit Kit

Eiko Down Light Retrofit Kit (10117)

8" - 12 watt - 100/277 volt - 4,000K - Cool White - Silver and White - Commercial - Dimmable

$42.59

This product is discontinued with no replacement or is completely out of stock with no estimated in-stock date.

Write the First Review

Works with
approved dimmers

Details

Part #:

EK10117

Manufacturer:

Eiko

Manufacturer Part #:

10117

Manufacturer Description:

CDR-8-10/85/840-SSW-DIM-U

UPC Code:

031293101174

Case Size:

8 ($340.72/Case)

The pricing of $42.59 is per item, not per case

Type:

Round

Light Output:

1,000 lumens

Energy Used:

12 watts

Average Lifetime:

50,000 hours

Volts:

100/277

Color / Finish:

Silver and White

Color Temperature:

4,000K

CRI:

Length:

9.3 inches

Width:

7.8 inches

Height:

6.3 inches

Weight:

3.5 pounds

Beam Angle:

85°

LpW:

Applications

	UL listed for dry/damp locations
	Hotel lobby
	Shopping center
	Supermarket
	Recreation center
	Public areas
	Corridors
	Offices
	Schools
	Hospitality
	Retail

Features

	Provides comfortable diffused light with no dark spots
	Dimmable to 5% with most Lutron and Leviton 0-10V dimmers
	Pre-wired conduit and quick connector allow for easy installation
	Clips for secure installation into multiple housing types included
	Operating temperature is -13°F to 104°F (-25°C to 40°C)
	Silver satin finish with white trim
	Frosted lens for diffuse lighting

Manufacturer's Warranty

5 Years Limited

Related Documents

		Installation Instructions
		Spec Sheet
