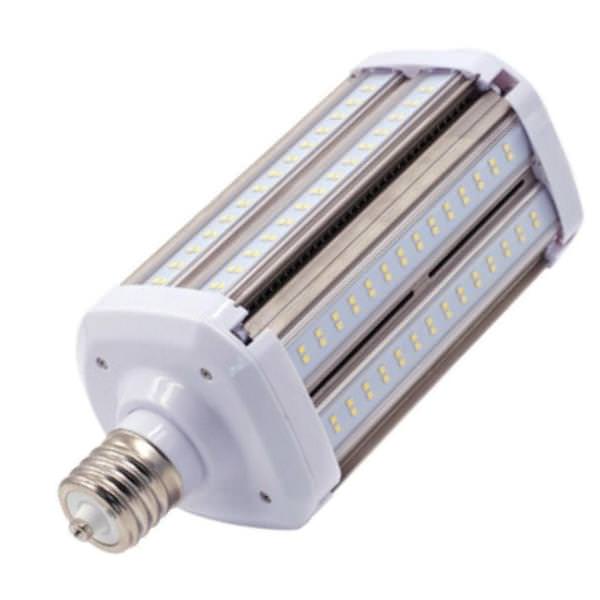

110 watt 120/277 volt Corn Cob Exclusionary Mogul Screw Base 3000K Natural White Non-Dimmable LED
Click to view larger photo
EiKO Light Bulbs

Eiko LED HID Area Light Bulb (09646 / LED110WAL30KMOG-G7)

110 watt - 120/277 volt - Corn Cob - Exclusionary Mogul Screw (EX39) Base - 3,000K - Natural White - Semi-directional - Ballast Bypass - Post Top - LiteSpanLED - Non-Dimmable

$49.99
  Retail: $55.00
Quantity:
Should ship by September 19
Design Lights Consortium QUALIFIED
UL Listed
Replaces a 600 watt
Incandescent Bulb
Ballast Bypass /
Direct Wire
Details
Part #: EK09646
Manufacturer: Eiko
Manufacturer Part #: 09646
Manufacturer Description:

LED110WAL30KMOG-G7

UPC Code: 031293096463
Case Size: 6    ($299.94/Case)
The pricing of $49.99 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: 14,300 lumens
Energy Used: 110 watts (replaces 600 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: Corn Cob
Base Type: Exclusionary Mogul Screw (EX39)
Color / Finish: Natural White
Color Temperature: 3,000K
CRI: 80
Length: 11.1 inches
Width: 4.4 inches
Weight: 4.79 pounds
Beam Angle: 180°
LpW: 130
Applications
Parking areas
Automotive dealerships
Roadways
Campuses
Streetscapes
Airports
Area security lighting
Wet locations
Enclosed fixtures
Features
Cost-effective solid state solution for area light applications
Replaces high-wattage HID luminaires
Lamp body folds out to provide directional lighting
Ballast bypass; connects to line voltage
Flame-retardant casing
Instant-on with no warm-up
0-10 volt dimmable
Operating temperature is -40°F to 140°F (-40°C to 60°C)
IP64 rated for wet locations
Manufacturer's Warranty
5 Year
Related Documents
Installation Instructions
Spec Sheet
