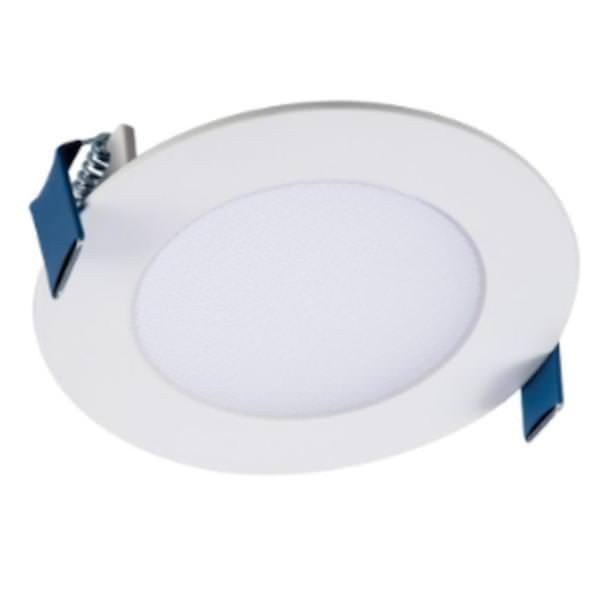

Cooper LED Downlight (40691)

4" - 12 watt - 120 volt - 2,700K-5,000K - Remote Driver - Junction Box - Aluminum Frame - Dimmable

$39.99

Should ship by December 19

Write the First Review

Works with
approved dimmers

Optional field selectable color temperature, select 2700K, 3000K, 3500K, 4000K or 5000K CCT; color accuracy within 4 SDCM

Details

Part #:

CO40691

Manufacturer:

Cooper

Manufacturer Part #:

40691

Manufacturer Description:

UPC Code:

080083848140

Case Size:

6 ($239.94/Case)

The pricing of $39.99 is per item, not per case

Recessed Housing:

Shape:

Round

Light Output:

600 lumens

Energy Used:

12 watts

Volts:

120

Color / Finish:

White

Color Temperature:

Selectable

CRI:

Efficacy:

60 LpW

Applications

	Suitable for wet locations
	Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements

Features

	IP44 rated
	Contains no mercury or lead
	Die-cast aluminum mounting frame with integral flange provides passive thermal cooling
	Achieves L70 at 50,000 hours in IC and non-IC applications
	High impact diffuse lens provides shielding to the light guide minimizing pixilation
	Closed cell gasket achieves restrictive airflow and wet locations listing without additional gaskets or caulking
	Precision acrylic light guide organizes source flux into wide distribution with 1.4 spacing criteria, useful for general area illumination
	Plurality of mid power LED’s provides a uniform source with high efficiency and long life
	Pre-galvanized steel driver/junction box with captive hinged junction box cover
	Listed for six #12 AWG 90° C splice conductors: two in, two out plus two ground
	Two 1?2" conduit pry-outs
	Two Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box
	Accepts NM cable types: 14-2, 14-3, 12-2, 12-3 (U.S.) and 14-2, 14-3, 12-2 (Canadian)
	Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections
	Integral mounting holes facilitate direct mounting to building structure or mounting frame

Manufacturer's Warranty

5 Year Limited

Related Documents

Spec Sheet
