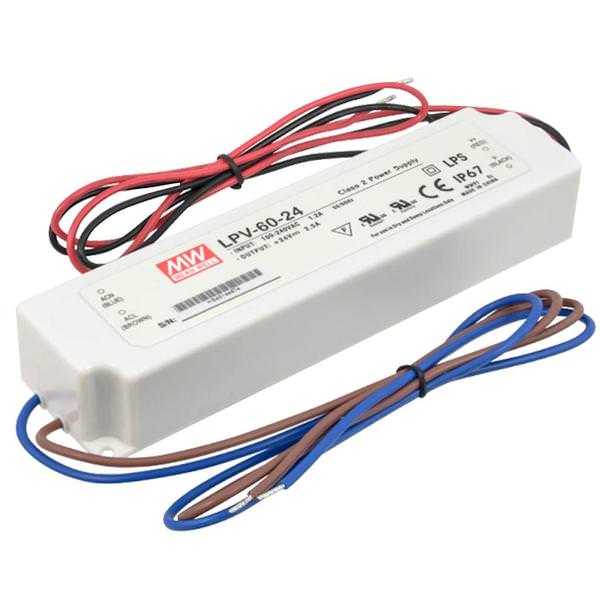

Part #:
|
AS99826
|
|
Manufacturer:
|
American Lighting
|
|
Manufacturer Part #:
|
99826
|
|
Manufacturer Description:
|
LED-DR60-12
|
|
UPC Code:
|
714176998268
|
|
Case Size:
|
20
($1,599.80/Case)
|
|
The pricing of $79.99 is per item, not per case
|
|
|
|
|
|
Function:
|
Driver
|
|
Volts:
|
100/240
|
|
Length:
|
6.4 inches
|
|
Width:
|
1.7 inches
|
|
Height:
|
1.2 inches
|
|
Mounting:
|
Set upon flat surface or house in an enclosure
|
|
Rated Current:
|
2.5A
|
|
Dimming:
|
Non-dimmable on primary side; Utilize secondary side for Trulux™ controls or PWM dimming
|
|
Maximum Load:
|
60W (non-dimming); 57W (dimming)
|
|
Minimum Load:
|
12W (non-dimming); 1W (dimming)
|
|
|
Applications
|
| For indoor applications |
| Suitable for LED lighting
|
|
|
|
Features
|
| Universal AC input / Full Range |
| Protections: Short Circuit / Overload / Over Voltage |
| Built-in constant current limiting circuit |
| Fully isolated plastic case; Fully encapsulated with IP67 level |
| Class 2, Class II (no FG) |
| Input via 22” 18AWG conductors |
| Output via 22” 16AWG conductors |
| Operating temperature of -22°F to 158°F (-30°C to 70°C)
|
|
|
|
Manufacturer's Warranty
|
|
|
|
|
