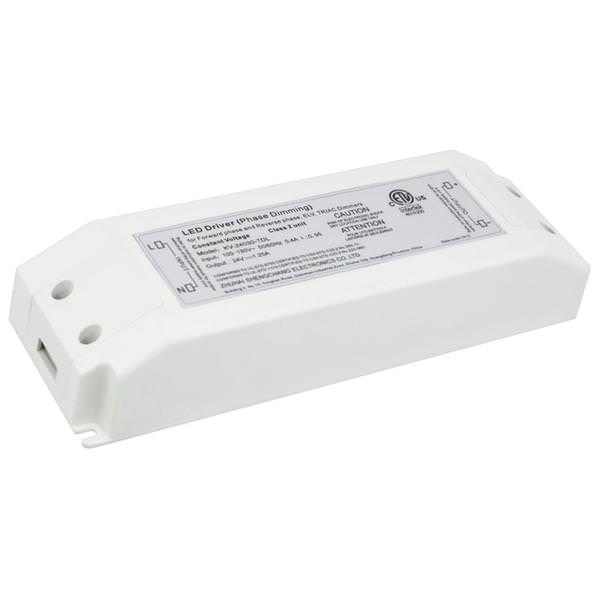

Part #:
|
AS00195
|
|
Manufacturer:
|
American Lighting
|
|
Manufacturer Part #:
|
00195
|
|
Manufacturer Description:
|
ELV-30-24
|
|
UPC Code:
|
714176001951
|
|
Case Size:
|
20
($1,479.80/Case)
|
|
The pricing of $73.99 is per item, not per case
|
|
|
|
|
|
Function:
|
Driver
|
|
Volts:
|
100/130
|
|
Color / Finish:
|
White
|
|
Dimming:
|
Dimmable with most standard leading edge dimmers (MLV, Incandescent, TRIAC) and trailing edge dimmers (aka 2-wire reverse phase, ELV)
|
|
Mounting:
|
Set upon flat surface or house in an enclosure; Use built-in mounting tabs for attaching to surface
|
|
Maximum Load:
|
30W
|
|
Minimum Load:
|
1W (non-dimming); 18W (dimming)
|
|
|
Applications
|
| Suitable for LED lighting |
| Suitable for Indoor applications
|
|
|
|
Features
|
| Over Current Protect |
| Short Circuit Protect |
| Over Voltage Protect |
| Over Temp Protect |
| cETLus Listed (indoor, dry locations) |
| Slim compact housing design features built-in terminal blocks with |
integrated wire cover strain reliefs
| FCC Compliant |
| Output Current at Max Load - 1.25A |
| Operating temperature ranges from -22°F to 122°F (-30°C to 50°C)
|
|
|
|
