Part #:
|
AS00193
|
|
Manufacturer:
|
American Lighting
|
|
Manufacturer Part #:
|
00193
|
|
Manufacturer Description:
|
ELV-60J-12
|
|
UPC Code:
|
714176001937
|
|
Case Size:
|
20
($2,453.80/Case)
|
|
The pricing of $122.69 is per item, not per case
|
|
|
|
|
|
Function:
|
Driver
|
|
Volts:
|
100/130
|
|
Color / Finish:
|
Black
|
|
Dimming:
|
Dimmable with most standard leading edge dimmers (MLV, Incandescent, TRIAC) and trailing edge dimmers (aka 2-wire reverse phase, ELV)
|
|
Mounting:
|
Use built-in mounting tabs for attaching to flat surface
|
|
Maximum Load:
|
60W
|
|
Minimum Load:
|
1W (non-dimming); 36W (dimming)
|
|
Input Current at Max Load:
|
0.779A
|
|
Output Current at Max Load:
|
5A
|
|
|
Applications
|
| Suitable for LED lighting |
| Suitable for indoor and outdoor applications |
| Suitable for wet locations
|
|
|
|
Features
|
| Over Current Protect |
| Short Circuit Protect |
| Over Voltage Protect |
| Over Temp Protect |

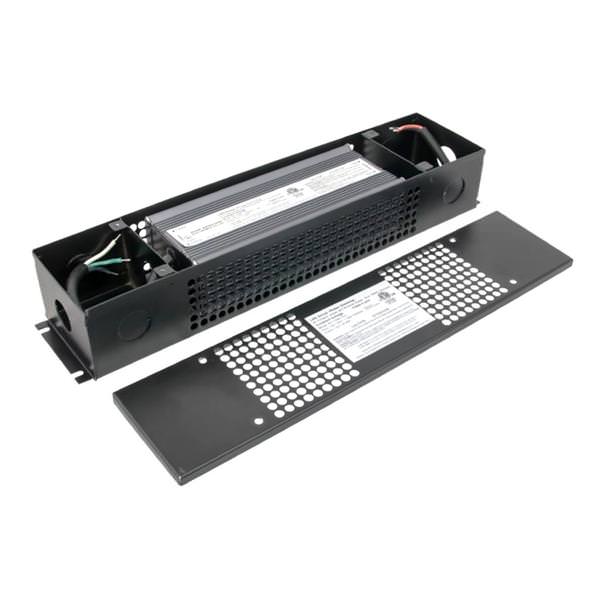

| Class 2 24V constant voltage driver inside metal housing |
| 1/2” knockouts on both primary and secondary ends |
| cETLus Listed (Wet locations) |
| Input via 5” 18AWG SJOW x3C conductors |
| Output via 5” 18AWG SJOW x2C conductors |
| FCC Compliant |
| Operating temperature ranges from -22°F to 122°F (-30°C to 50°C)
|
|
|
|
