About

Specs
SKUTC29160
ManufacturerTCP
Manufacturer Part #DTF1UZD2335KEB
Manufacturer DescriptionDTF1UZD2335KEB
UPC Code762148291602
Case Size1
Size1' x 4'

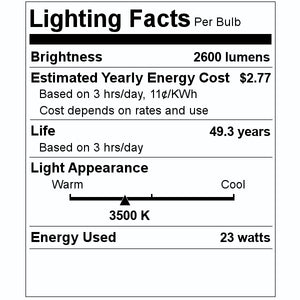

Lumens2600
Watts23
Volts120/277
Color Temp3500
Color FinishWhite
Life54000
Beam Angle120
Length48
Height1.25
Width12
FeaturesIP20 rated, IC rated for direct contact with insulation, Designed for easy drop into T-bar grid ceilings, 0-10V dimming driver, LED driver with integrated junction box, Back-lit technology provides even uniform lighting, Frosted diffuser for reduced glare and aesthetic appeal
ApplicationsUL/cUL damp location rated
Warranty text

~5 Year Limited

Files
Spec Sheet

wf226855_direct_troffer_fixed_wattage.pdf

TCP logo TCP

PART NUMBER: TC29160

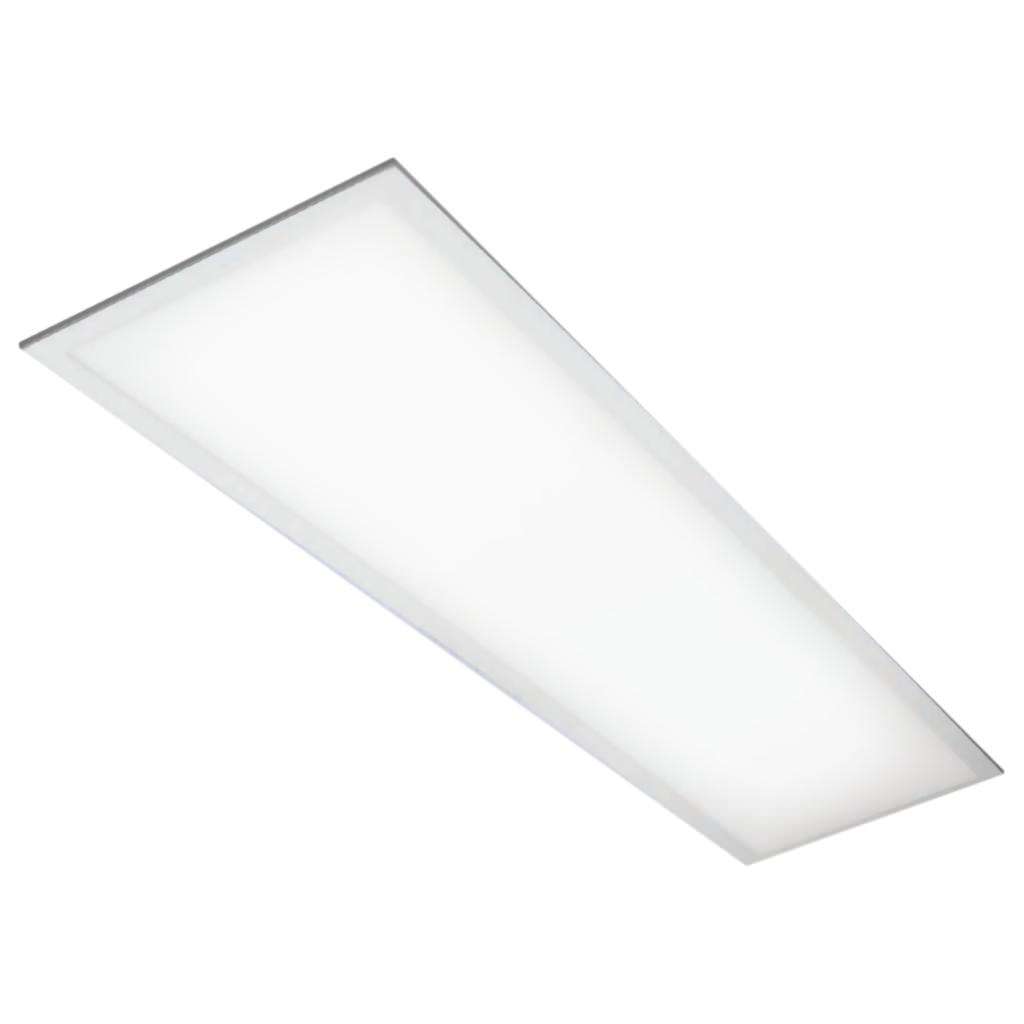

TCP 1' x 4' 23 watt 120/277 volt 3500K Neutral White Dimmable LED Troffer

1' x 4' - 23 watt - 120/277 volt - 3,500K - Neutral White - White - Frosted - Back-Lit - Battery Back-up - DT Series - Dimmable

MPN#: DTF1UZD2335KEB

Ships in 7 – 10 business days

$219.99
$219.99
$219.99
Shipping calculated at checkout.

Works with
approved dimmers
