About

Specs
SKUTC27845
ManufacturerTCP
Manufacturer Part #DTF1UZD2341K
Manufacturer DescriptionDTF1UZD2341K
UPC Code762148278450
Case Size1
Size1' x 4'

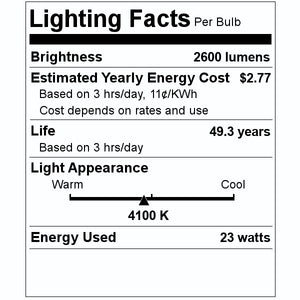

Lumens2600
Watts23
Volts120/277
Color Temp4100
Color FinishWhite
Life54000
Beam Angle120
Length48
Height1.25
Width12
FeaturesIP20 rated, IC rated for direct contact with insulation, Designed for easy drop into T-bar grid ceilings, 0-10V dimming driver, LED driver with integrated junction box, Back-lit technology provides even uniform lighting, Frosted diffuser for reduced glare and aesthetic appeal
ApplicationsUL/cUL damp location rated
Warranty text

~5 Year Limited

Files
Spec Sheet

wf226855_direct_troffer_fixed_wattage.pdf

TCP logo TCP

PART NUMBER: TC27845

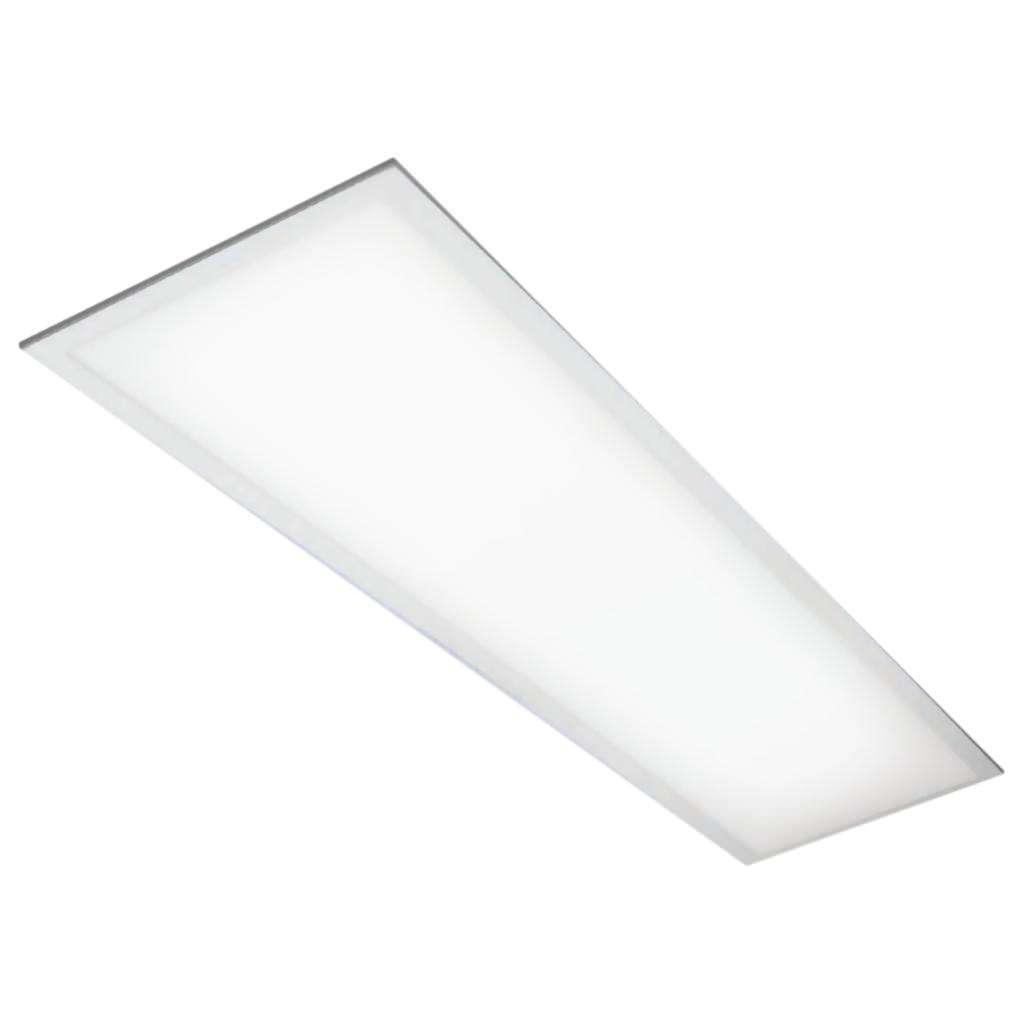

TCP 1' x 4' 23 watt 120/277 volt 4100K Cool White Dimmable LED Troffer

1' x 4' - 23 watt - 120/277 volt - 4,100K - Cool White - Frosted - Back-Lit - DT Series - Dimmable

MPN#: DTF1UZD2341K

Ships in 7 – 10 business days

$62.99
$62.99
$62.99
Shipping calculated at checkout.

Works with
approved dimmers
