About

Specs
SKUTC26090
ManufacturerTCP
Manufacturer Part #DTF4UZDB130K
Manufacturer DescriptionDTF4UZDB130K
UPC Code762148260905
Case Size1
Size2' x 4'

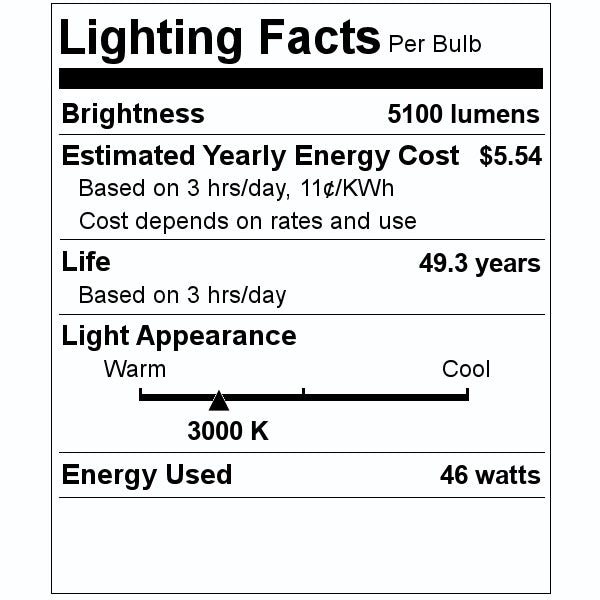

Lumens5100
Watts46
Volts120/277
Color Temp3000
Color FinishWhite
Life54000
Beam Angle120
Length48
Height1.25
Width24
Additional SpecsLpW, 110Low, 29W (3300 lumens)Medium, 39W (4400 lumens)High, 46W (5100 lumens)
FeaturesRectangular white frame, IP20 rated, IC rated for direct contact with insulation, Designed for easy drop into T-bar grid ceilings, 0-10V dimming driver, Selectable wattage driver with quick connect to the panel, Back-lit technology provides even uniform lighting, Frosted white diffuser for reduced glare and aesthetic appeal, Meets or exceeds the look and performance of edge-lit panels
ApplicationsUL/cUL damp location rated, Offices, Schools, Retail locations, Healthcare, Hospitality
Warranty text

~5 Year Limited

Files
Spec Sheet

TCP_2025994_20Specs.pdf

TCP logo TCP

PART NUMBER: TC26090

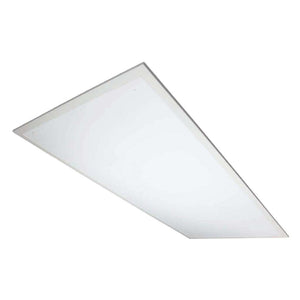

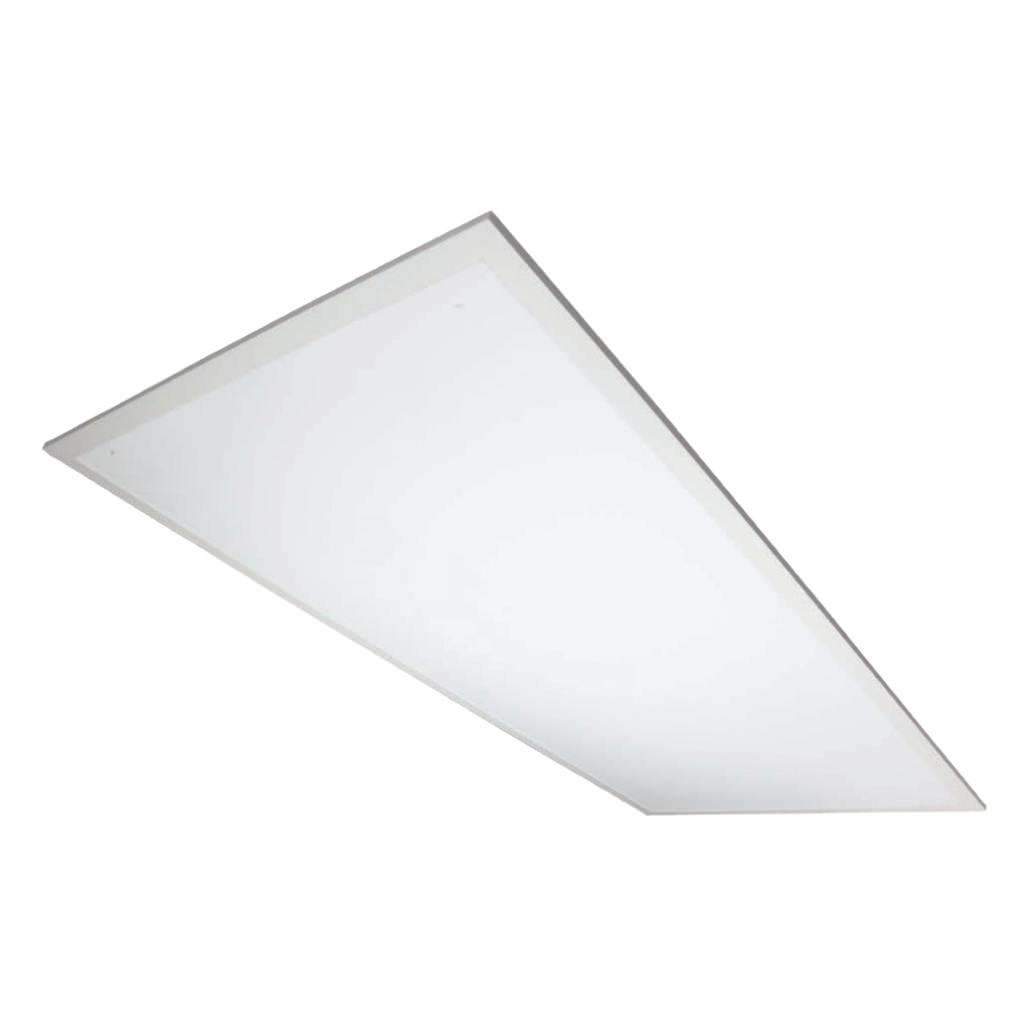

TCP 2' x 4' 46 watt 120/277 volt 3000K Natural White Dimmable LED Troffer

2' x 4' - 46 watt - 120/277 volt - 3,000K - Natural White - Color and Wattage Seletable - Backlit - DT Series - Dimmable

MPN#: DTF4UZDB130K

Ships in 7 – 10 business days

$79.99
$79.99
$79.99
Shipping calculated at checkout.

Works with
approved dimmers
