About

Specs
SKUTLP594752
ManufacturerTask Lighting
Manufacturer Part #LR1PX24V18-03W3
Manufacturer DescriptionLR1PX24V18-03W3
UPC Code840002594752
Case Size1
Lumens101
Watts2
Volts24
Color Temp3000
Color FinishWhite
CRI90
Life50000
Beam Angle120
Length12.6
Height0.5
Width0.9
Additional SpecsRecommended Cabinet Size, 18"Mounting Orientation, Vertical HorizontalLED Type, 2835 SMDEfficacy, 64 LpW
FeaturesMounting clips with screws, This compact light fixture fits into a 1/2" deep by 5/8" wide recessed groove, Dimmable with compatible dimmer or dimming system, Wire Entry Left & Right Side, Designed to easily match up to standard cabinet widths, Fully assembled LED light fixture with frosted light-diffusing lens, 50000 hour LED life at 70% lumen maintenance means long-lasting illumination, 24-volt DC plug-in or hardwired power supply required (order separately), OLR Eligible
ApplicationsUnder cabinet, Suitable for dry and damp locations , Indoor/Outdoor
Files
Instructions

dqc2xinskklldzsfl6eb_20_7.pdf

Spec Sheet

tu979hmbnhjxldal86st.pdf

Task Lighting logo Task Lighting

PART NUMBER: TLP594752

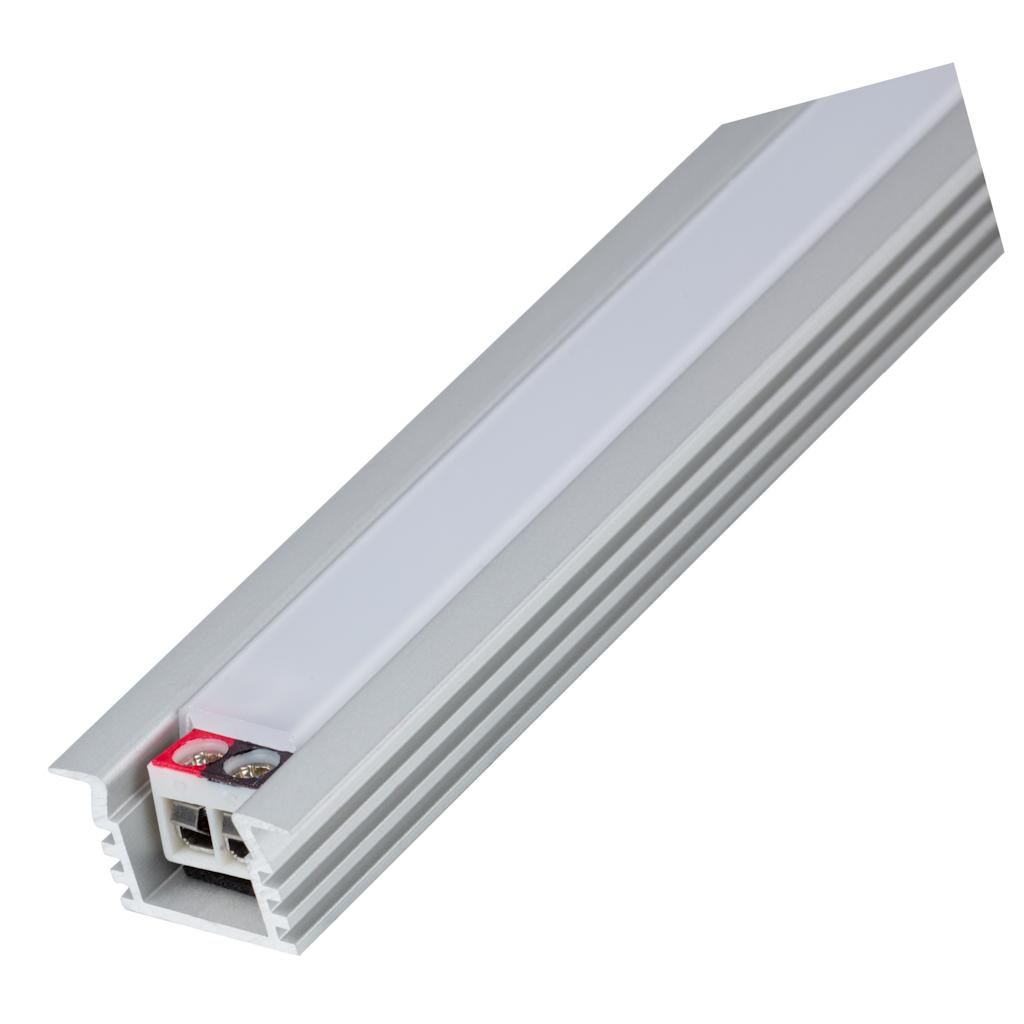

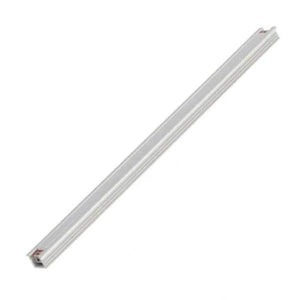

Task Lighting 12.6" 2 watt 24 volt 3000K Natural White Recessed Radiance Series LED Under Cabinet Fixture

12.6" - 2 watt - 24 volt - 3,000K - Natural White - Frosted - Recessed Profile - Aluminum - Mounting Hardware Included - Accent Output - Radiance Series - Dimmable

MPN#: LR1PX24V18-03W3

Ships in 7 – 10 business days

$30.09
$30.09
$30.09
Shipping calculated at checkout.

Works with
approved dimmers
