About
Specs
SKUPG262113
ManufacturerProgress Lighting
Manufacturer Part #P841-ICAT
Manufacturer Description5" SHALLOW NEW CONSTRUCTION HOUSING (P841-ICAT)
UPC Code785247262113
Case Size6
Watts50
Volts120
Length13.2
Height5.4
Weight2.4
Width14.8
Additional SpecsMax wattage, 50 watt
FeaturesThe housing and frame are constructed from die-formed corrosion resistant galvanized steel, Its gasketed air-tight lamp housing prevents conditioned air from escaping into the attic space reducing unnecessary HVAC energy usage and the lamp housing compartment can be adjusted to fit ceiling thicknesses from ½ in. to 1 ¼ in., Wiring is made easy with the included wiring quick-connects that allow simple installation of 12-20 AWG wire without using separate wire nuts - simply strip supply wires and push in, The housing has pre-installed nails on the adjustable hanger bars which are easily installed in regular lumber engineered lumber and laminated beams, Hanger bars include t-bar mounting clamps for use in suspended t-grid ceilings and the bar hangers have a maximum span of 24 in. and are scored in two locations for fast clean breaking allowing housing installation in very narrow joist spacings, Housing is provided with a medium base socket for a variety of bulbs - which are based on the trim used.
ApplicationsSuitable for damp locations
Warranty text
Files
Instructions
PROG_93147583_C_install_20_1.pdf
Spec Sheet
Progress Lighting
PART NUMBER: PG262113

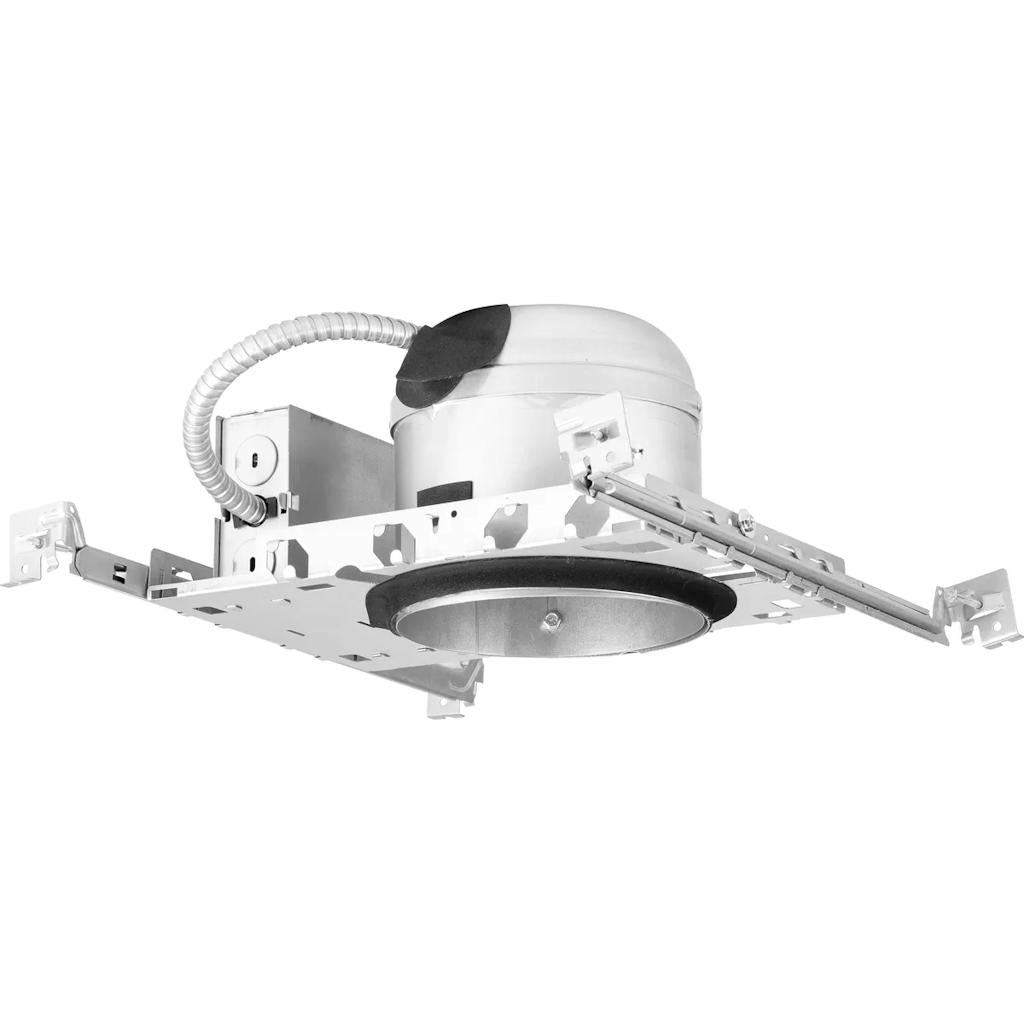

Progress Lighting 5" 120 volt Shallow Recessed Airtight Quick Link Connector for 5” Trim Housing
5" - 120 volt - Shallow Recessed - Airtight - Quick Link Connector for 5” Trim - New Construction
MPN#: P841-ICAT
Ships in 7 – 10 business days
