About

Specs
SKUNC10474
ManufacturerNicor
Manufacturer Part #DLS56-3009-120-4K-WH
Manufacturer DescriptionDLS56-3009-120-4K-WH
UPC Code767706104745
Case Size1
Housing Size5"-6"

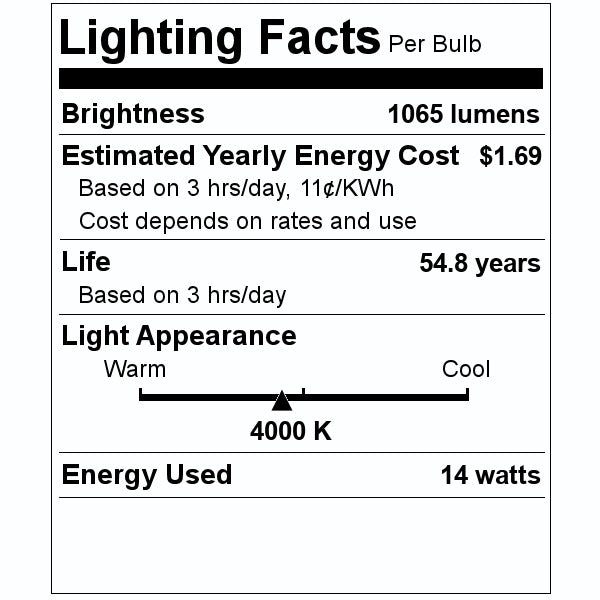

Lumens1065
Watts14
Volts120
Color Temp4000
Color FinishWhite
CRI94
Life60000
Beam Angle104
Length7.5
Width2
Additional SpecsLpW, 75

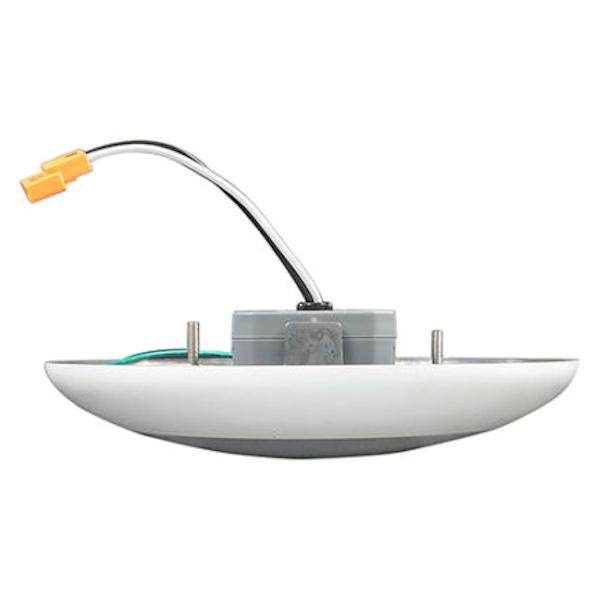

FeaturesDie cast aluminum trim routes heat away from electrical components, Low profile driver allows for surface mount installation in a 4/O J-box, Twist lock diffuser allows for easy removal during installation, White polycarbonate diffuser eliminates hot spots creating a pleasantly uniform light distribution, Dimmable to less than 5% with most standard TRIAC dimmers, Thermally protected high efficiency driver, Operating temperature rating of 0°F to 120°F (-18°C to 49°C)
ApplicationsSuitable for use in closets
Warranty text

~5 Year Limited

Files
Brochure

Nicor_2010288_20Brochure.pdf

Installation Instructions

Nicor_2010294_20Instructions.pdf

Spec Sheet

Nicor_2010294_20Specs.pdf

Nicor logo Nicor

PART NUMBER: NC10474

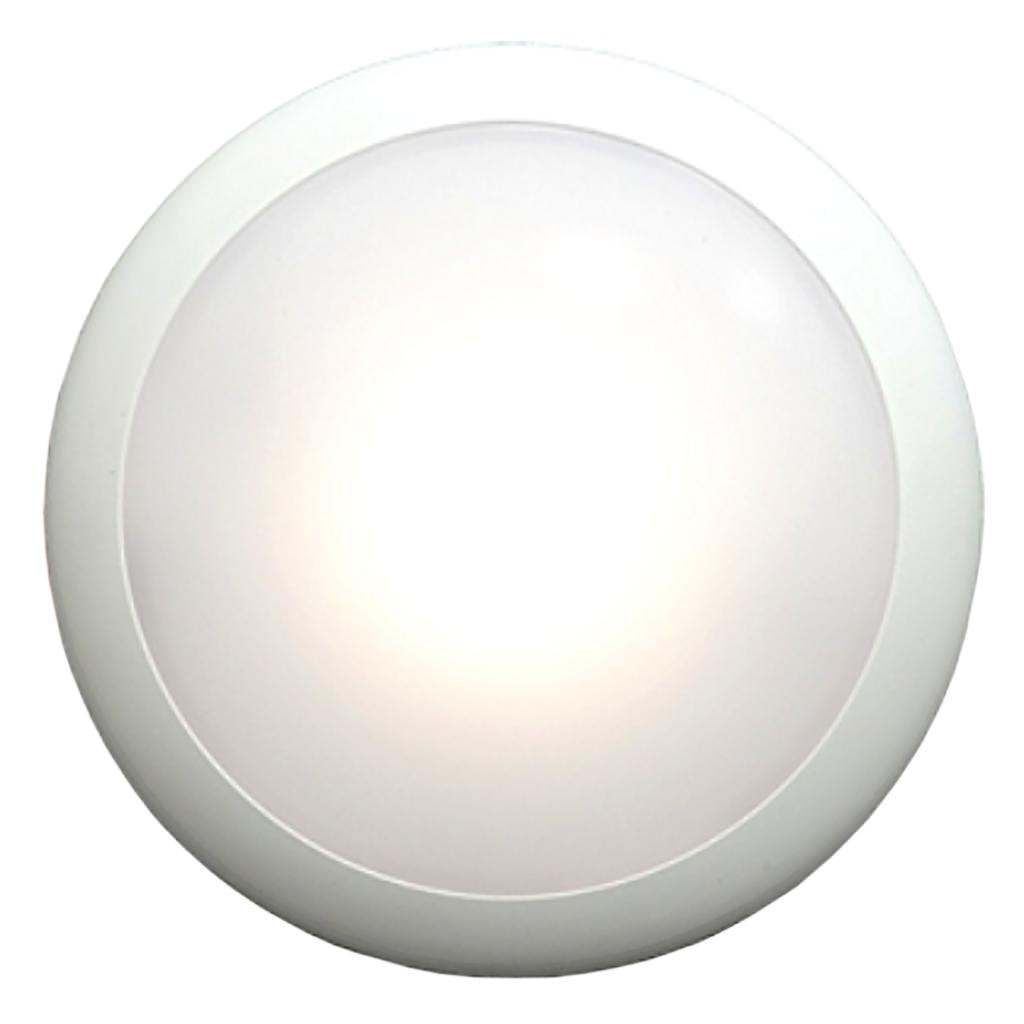

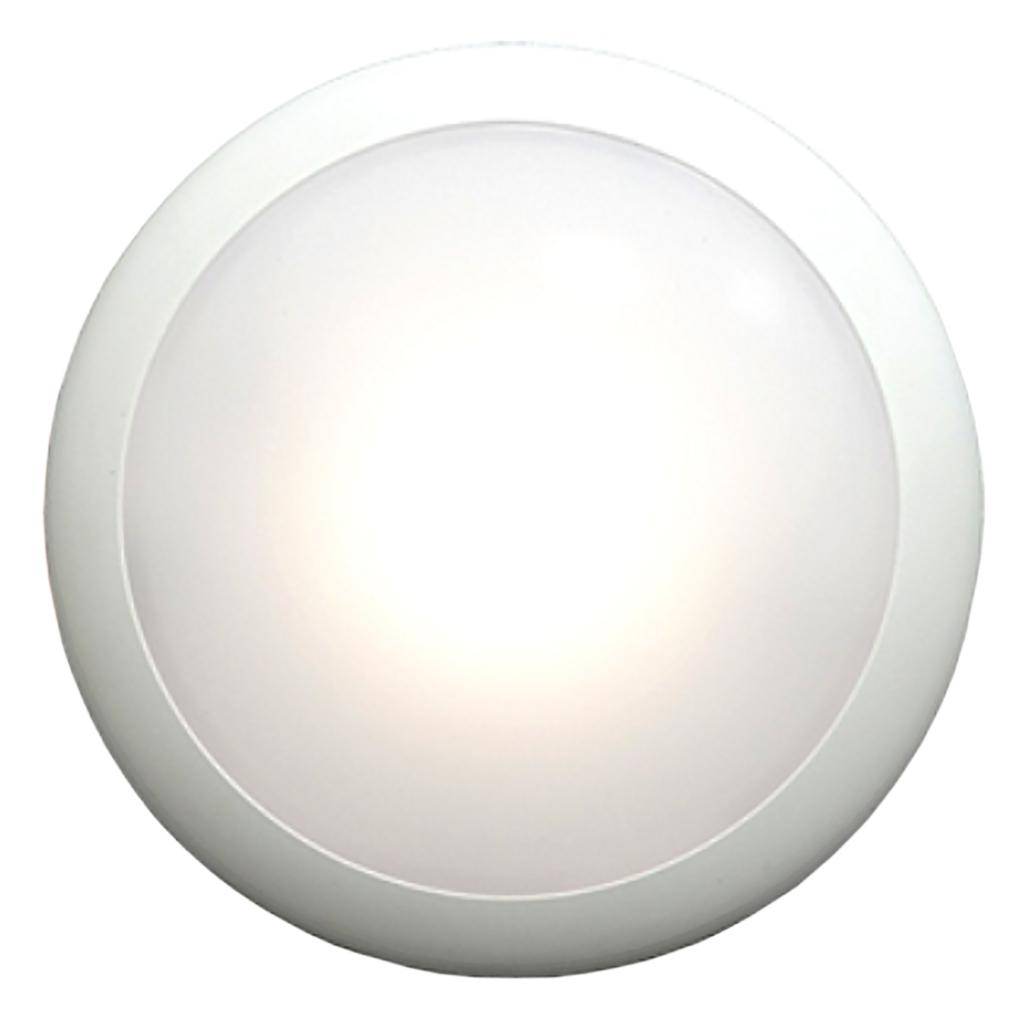

Nicor 5"-6" 14 watt 120 volt 4000K Dimmable LED Downlight

5"-6" - 14 watt - 120 volt - 4,000K - Cool White - White - Surface Mount - Dimmable

MPN#: DLS56-3009-120-4K-WH

Ships within 1 – 2 business days

$29.99
$29.99
$29.99
Shipping calculated at checkout.

Works with
