SKUNC10150
ManufacturerNicor
Manufacturer Part #10150
Manufacturer Description19000A-LED-ID
UPC Code767706101508
Case Size1
Length14.25
Height5.5
Width10.25
FeaturesAirtight housing limits the exchange of air between ceiling plenum and heated/cooled areas, Housing is secured to plaster frame with screws and can be removed for access to junction box, Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness, Listed for through branch circuit wiring and includes several 3/4" knockouts, Four pryouts with integral strain relief simplify Romex installation, Supplied with three push-in wire connectors, Heavy-gauge captive hanger bars provide greater stability allowing housing to be positioned at any point within a 24" joist span then locked in place with set screws, Four double-headed captive nails provide for ease of installation, Bars fit onto T-bar spine for quick alignment and can be permanently secured, Score lines allow bars to be shortened without tools to accommodate a 12" joist span
ApplicationsSuitable for residential and commercial applications, Suitable for new construction
Files
Installation Instructions
Nicor_2010150_20Instructions.pdf
Spec Sheet
Nicor
PART NUMBER: NC10150

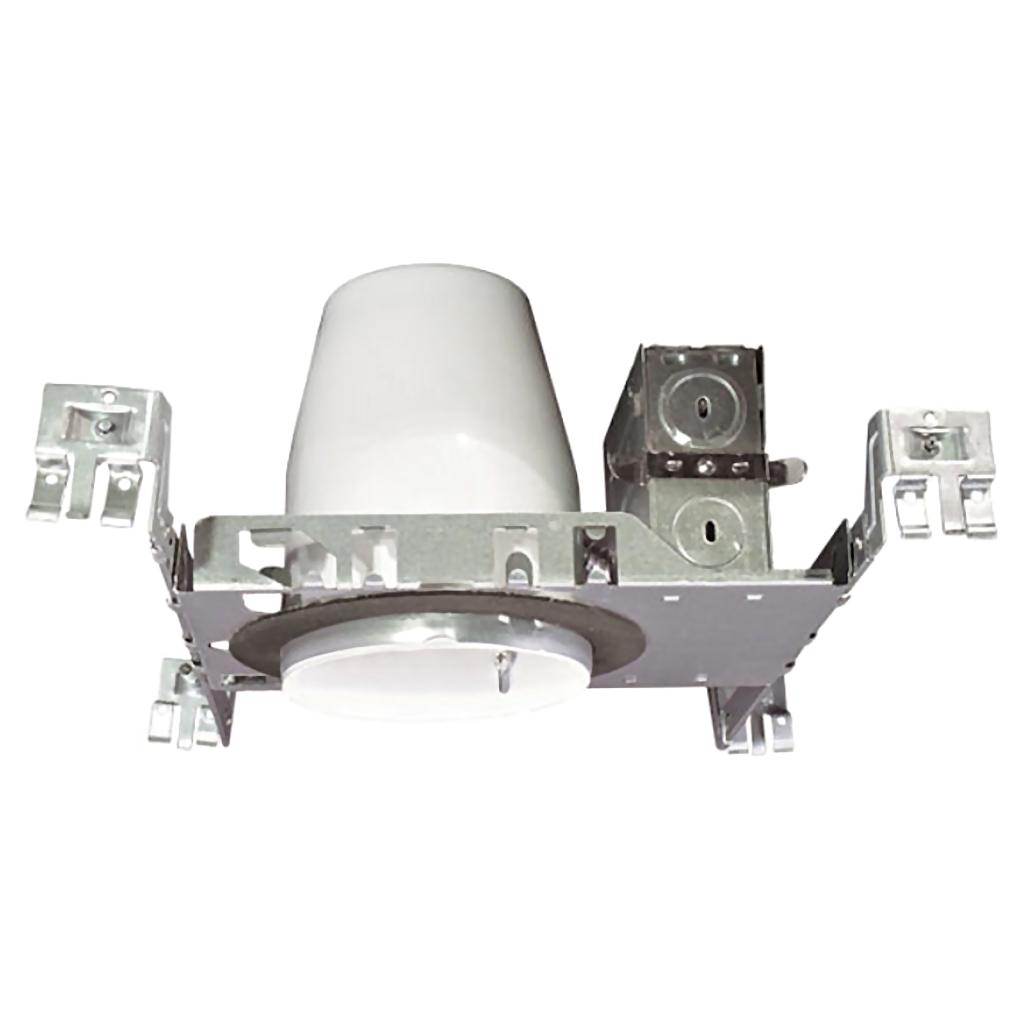

Nicor 4" IC New Construction Recessed Housing
4" - IC - New Construction - Airtight
MPN#: 10150
Ships in 7 – 10 business days
