SKUNC00223
ManufacturerNicor
Manufacturer Part #00223
Manufacturer Description19000A
UPC Code767706002232
Case Size6
ShapeRound
Housing Size4"
Volts120/277
Length8.5
Height7.5
Width5.5
FeaturesAirtight housing limits the exchange of air between ceiling plenum and heated/cooled areas, Washington State Energy Code approved to meet restricted airflow requirements, 5 1/2” height allows use in 2” x 6” joist construction, Housing is secured to plaster frame with screws and can be removed for access to junction box, Housing adjusts from 1/2” to 1 1/2” to accommodate ceiling thickness, Listed for through branch circuit wiring and includes several 3/4” knockouts, Four pryouts with integral strain relief simplify Romex installation , Supplied with three push-in wire connectors, Heavy-gauge NICOR captive hanger bars provide greater stability allowing housing to be positioned at any point within a 24” joist span then locked in place with set screws, Unique hanger bar lip design helps align can to joist, Four double-headed captive nails provide for ease of installation, Bars can be repositioned 90° on plaster frame without tools, Bars fit onto T-bar spine for quick alignment and can be permanently secured, Score lines allow bars to be shortened without tools to accommodate a 12” joist span, Suitable for direct contact with insulation, 50 Watt max, PAR20/R20
Nicor
PART NUMBER: NC00223

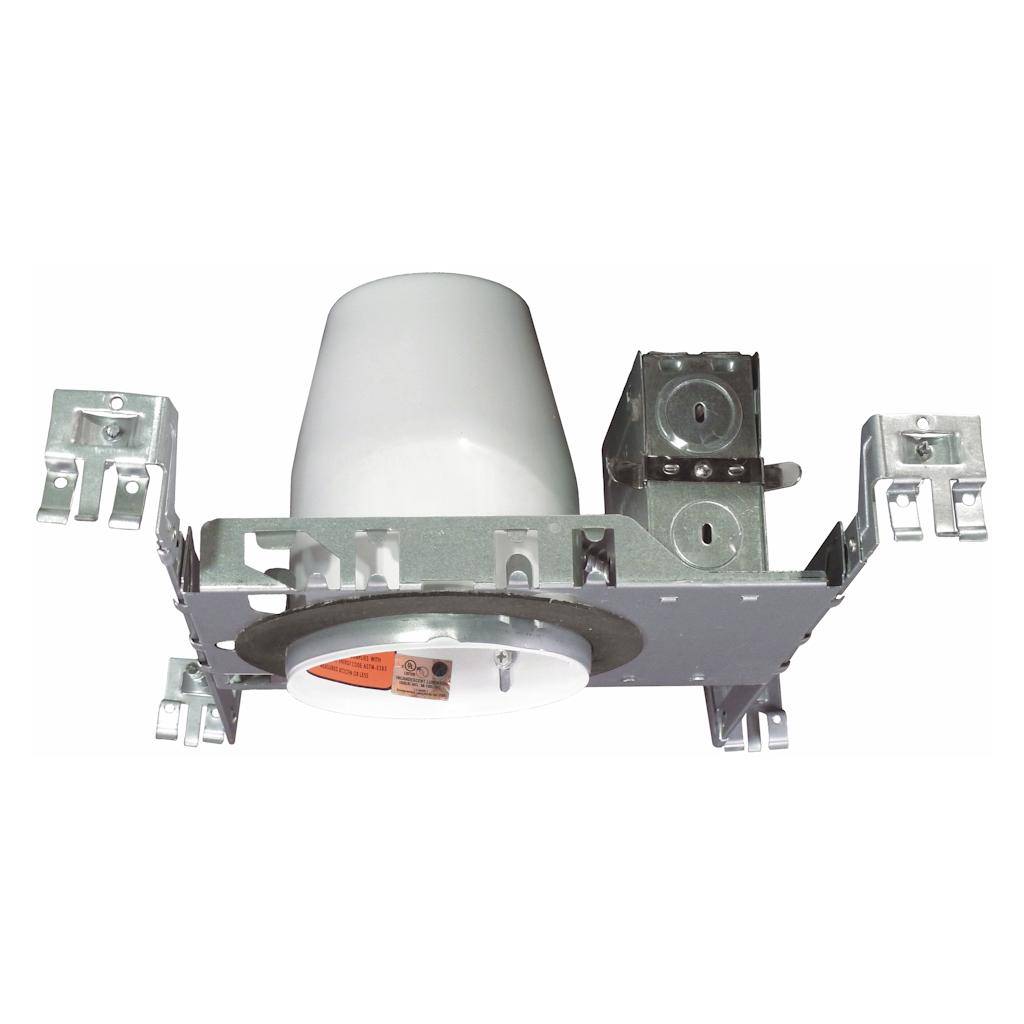

Nicor 4" 120/277 volt IC Airtight New Construction LED Housing with Molex Connector
4" - Remodel - 120/277 volt - LED Housing - IC - Recessed - Airtight - New Construction - Molex Connector
MPN#: 00223
Ships in 7 – 10 business days
- Regular price
- $19.89
- Sale price
- $19.89
- Regular price
-
$19.89
Shipping calculated at checkout.
