About
Specs
SKUMX12732
ManufacturerMaxlite
Manufacturer Part #102746
Manufacturer DescriptionL42T8DER17D835-CG
UPC Code767627127328
Case Size10
Power InputBallast Bypass / Direct Wire

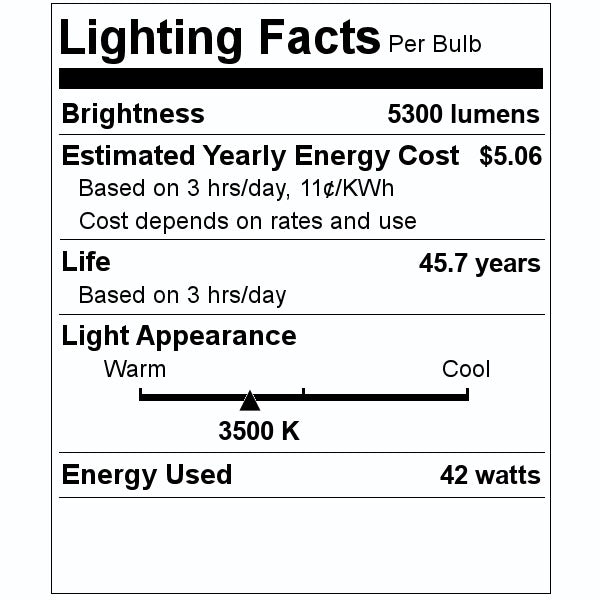

Lumens5300
Watts42
Incandescent Replacement Watts86
Volts120/277
Color Temp3500
Color FinishNeutral White
CRI80
Life50000
Bulb TypeT8
Base TypeRecessed Double Contact (R17d)
Beam Angle330
Length96
Weight1.5
Width1.1
Additional SpecsLpW, 126
FeaturesCoated glass lens, Operating temperature is -4°F to 113°F, Easy retrofit into most common linear fluorescent fixtures, Simple ballast bypass double-ended wiring schematic, Instant on, Mercury free and virtually no UV or IR light
ApplicationsSuitable for enclosed fixture, Suitable for dry and damp locations, Parking garage, Tunnels, Cove lighting, Display case
Warranty text
Files
Operating Instructions
Maxlite_2012723_20Instructions.pdf
Spec Sheet
Maxlite
PART NUMBER: MX12732

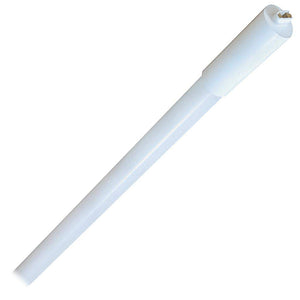

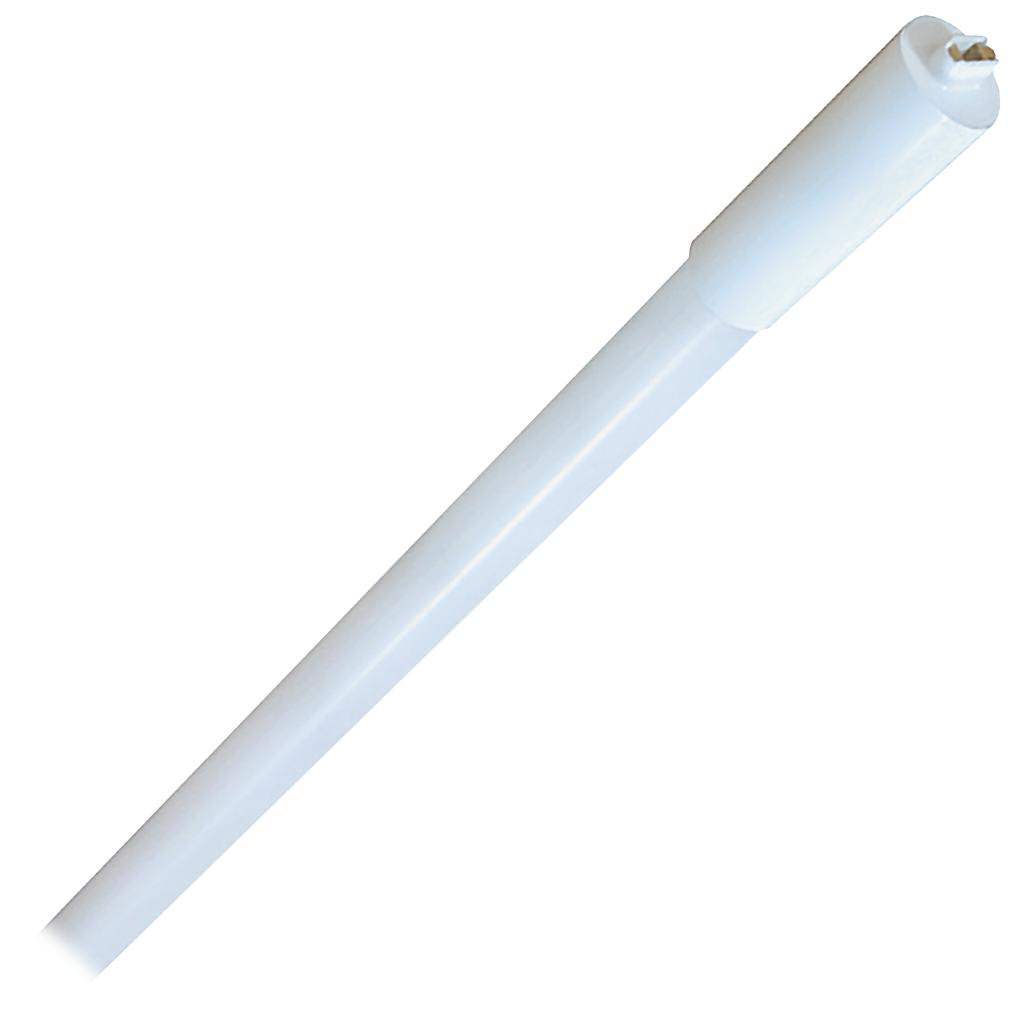

Maxlite T8 96" 5300 Lumens 3500K Ballast Bypass LED Tube
42 watt - 120/277 volt - 96" - T8 - Recessed Double Contact (R17d) Base - 3,500K - Neutral White - Ballast Bypass - Coated - Double Ended Power - Non-Dimmable
MPN#: 102746
Ships within 1 – 2 business days
- Regular price
- $23.19
- Sale price
- $23.19
- Regular price
-
$23.19
Shipping calculated at checkout.
