About

Specs
SKUMX05926
ManufacturerMaxlite
Manufacturer Part #111221
Manufacturer DescriptionFPR22D15WCSCREMTA
UPC Code767627059261
Case Size1
Size2' x 2'

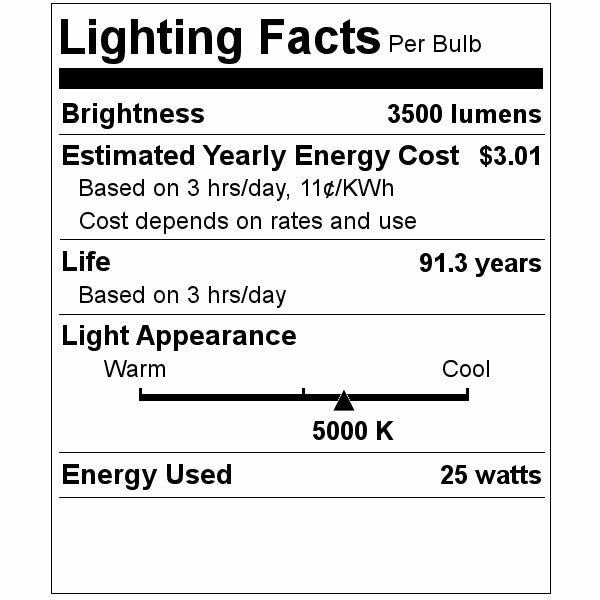

Lumens3500
Watts25
Volts120/277
Color Temp5000
Color FinishWhite
CRI80
Life100000
Length21.4
Height2.4
Weight3.75
Width22
Additional SpecsLumen Range, 2100/2800/3500Efficacy, 139-154 LpWOperating Temperature, -4°F to +122°F (-20°C to +50°C)
FeaturesQuick Installation of Flat Panel Retrofit Kit in existing luminaire without the needto break the ceiling plenum., Design prevents any gaps from the retrofit fit in the existing troffer, Includes safety cable to attach to housing, 0-10V Dimming Technology, PolyStyrene Lens, TAA Compliant, DLC Premium, Wattage and CCT select option each unit provides more than 9 variations of the product giving flexibility to the end users and distributors.
ApplicationsETL listed for damp locations
Warranty text

~10 Year Limited

Files
Instructions

FPR14D15WCSCRTA.pdf

Spec Sheet

FPR24D22WCSCREMTA.pdf

Maxlite logo Maxlite

PART NUMBER: MX05926

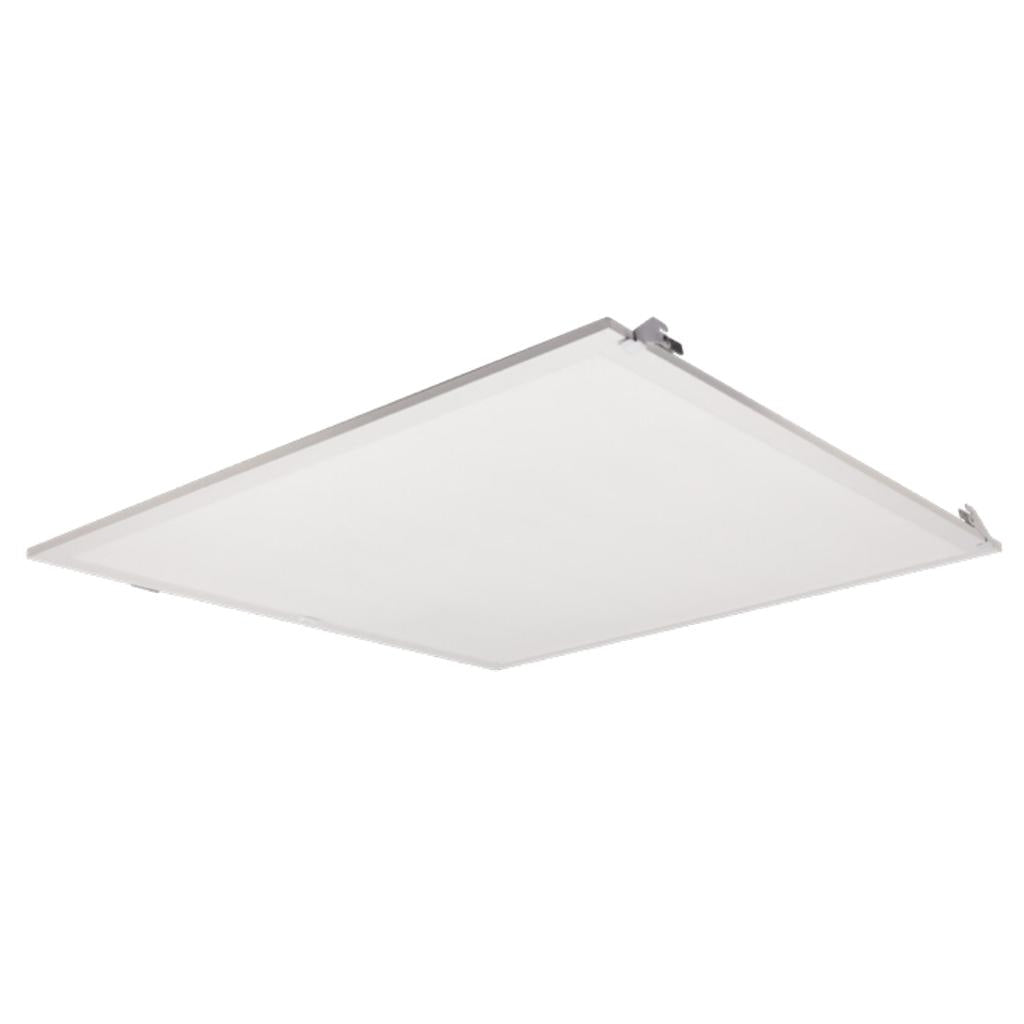

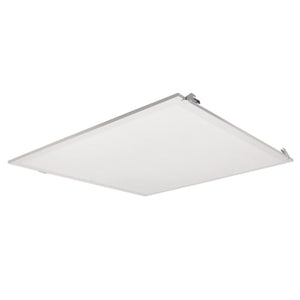

Maxlite 2' x 2' 15/20/25 watt 120/277 volt CCT Selectable Battery Back Up Dimmable LED Flat Panel Retrofit Kit

2' x 2' - 15/20/25 watt - 120/277 volt - 3,500K/4,000K/5,000K - CCT Selectable - Wattage Select - Controls Ready - Battery Back Up - Steel White Housing - FPR Series - Dimmable

MPN#: 111221

Ships in 7 – 10 business days

$228.99
$228.99
$228.99
Shipping calculated at checkout.

Works with
approved dimmers
