About

Specs
SKUMX05711
ManufacturerMaxlite
Manufacturer Part #111006
Manufacturer DescriptionFPR24D22WCSCRTA
UPC Code767627057113
Case Size1
Size2' x 4'
LumensSelectable
WattsSelectable
Volts120/277
Color TempSelectable
Color FinishWhite
CRI80
Life100000
Length45.4
Height2.4
Weight7.5
Width22
Additional SpecsLumen Range, 3080/4200/5320Efficacy, 137-152LpWOperating Temperature, -4°F to +122°F (-20°C to +50°C)
FeaturesQuick Installation of Flat Panel Retrofit Kit in existing luminaire without the needto break the ceiling plenum., Design prevents any gaps from the retrofit fit in the existing troffer, Includes safety cable to attach to housing, 0-10V Dimming Technology, PolyStyrene Lens, TAA Compliant, DLC Premium, Wattage and CCT select option each unit provides more than 9 variations of the product giving flexibility to the end users and distributors.
ApplicationsETL listed for damp locations
Warranty text

~10 Year Limited

Files
Instructions

FPR14D15WCSCRTA.pdf

Spec Sheet

FPR24D22WCSCREMTA.pdf

Maxlite logo Maxlite

PART NUMBER: MX05711

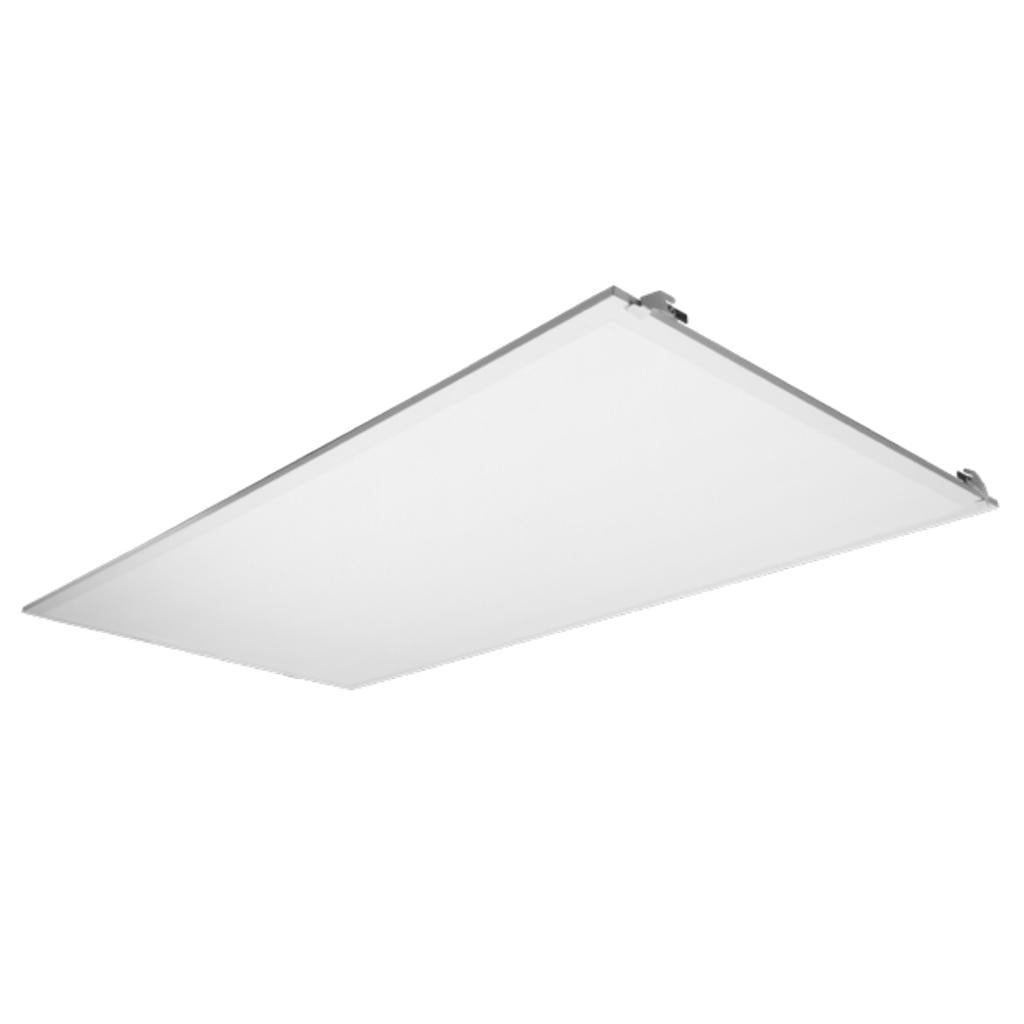

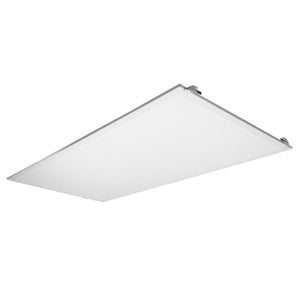

Maxlite 2' x 4' 22/30/38 watt 120/277 volt CCT Selectable Dimmable LED Flat Panel Retrofit Kit

2' x 4' - 22/30/38 watt - 120/277 volt - 3,500K/4,000K/5,000K - CCT Selectable - Wattage Select - Controls Ready - Steel White Housing - FPR Series - Dimmable

MPN#: 111006

Ships in 7 – 10 business days

$96.99
$96.99
$96.99
Shipping calculated at checkout.

Works with
