2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1
    2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1
2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1
2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1
    2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1
2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED 1

About

Specs
SKUMX00793
ManufacturerMaxlite
Manufacturer Part #105571
Manufacturer DescriptionTRK22D20WCSCR
UPC Code767627007934
Case Size1
Size2' x 2'
LumensSelectable
WattsSelectable
Volts120/277
Color TempSelectable
Color FinishWhite
CRI80
Life100000
Length23.8
Height3.1
Width23.8
Additional SpecsLumens, 2620-3810Efficacy, 125-133 LpW
FeaturesPower/Wattage selectable, Controls Ready – can be paired with the new cMax controls nodes, Quick installation of Troffer Retrofit Kit in existing luminaire without the need to break the ceiling plenum, CCT Selectable: 3500K/4000K/5000K for 20W & 25W models, Dimming: 0-10V with 5-100% Dimming Range with Dim-to-off capability
ApplicationsSuitable for damp and dry locations
Warranty text

~10 Year

Files
Installation Instructions

TRK24D2840CR_20_1.pdf

Spec Sheet

TRK24D2840CR.pdf

Maxlite logo Maxlite

PART NUMBER: MX00793

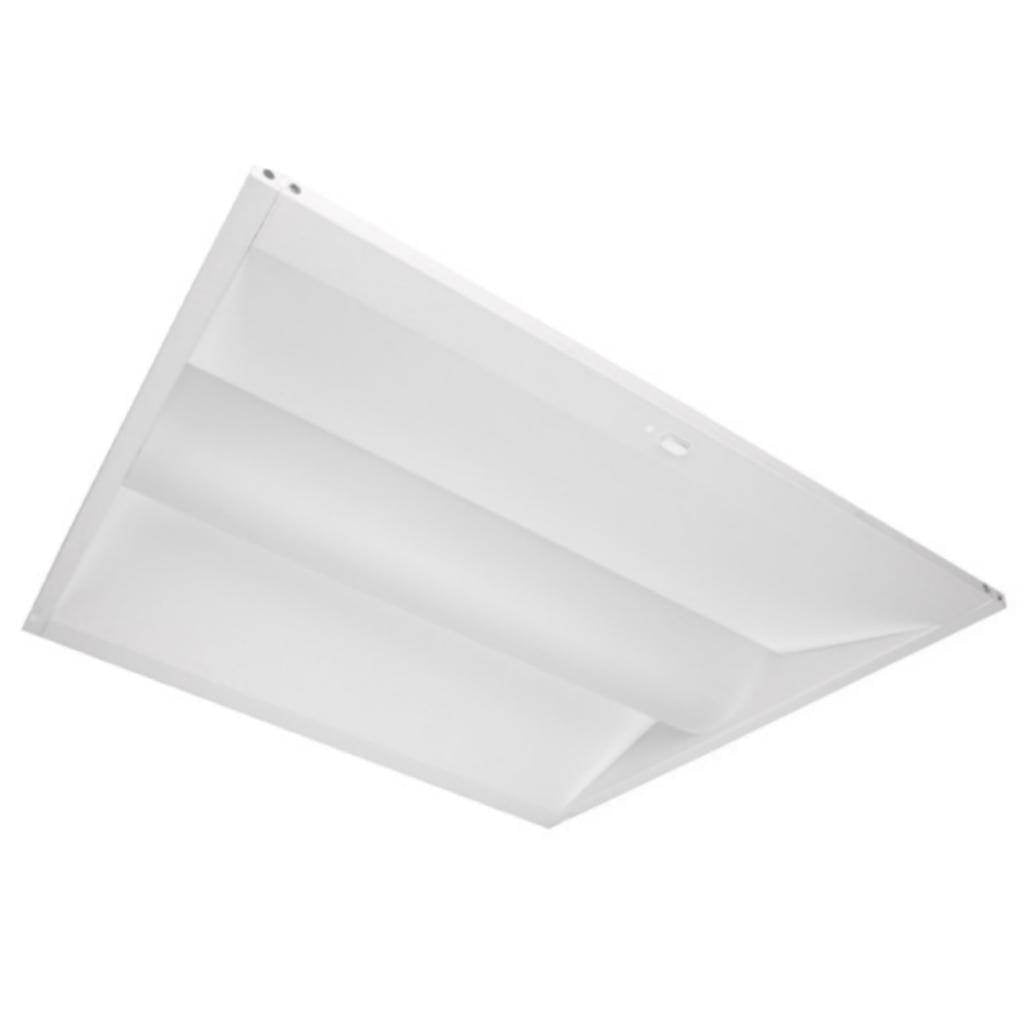

Maxlite 2' x 2' 20/25/30 watt 120/277 volt 3,500K/4,000K/5,000K White Control Ready Dimmable LED

2' x 2' - 20/25/30 watt - 120/277 volt - 3,500K/4,000K/5,000K - CCT Selectable - White - Control Ready - Dimmable

MPN#: 105571

Ships in 7 – 10 business days

$58.09
$58.09
$58.09
Shipping calculated at checkout.

Works with
approved dimmers
