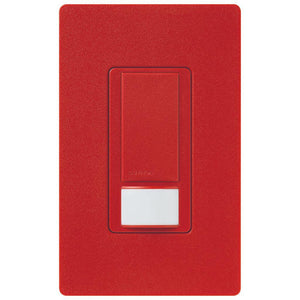

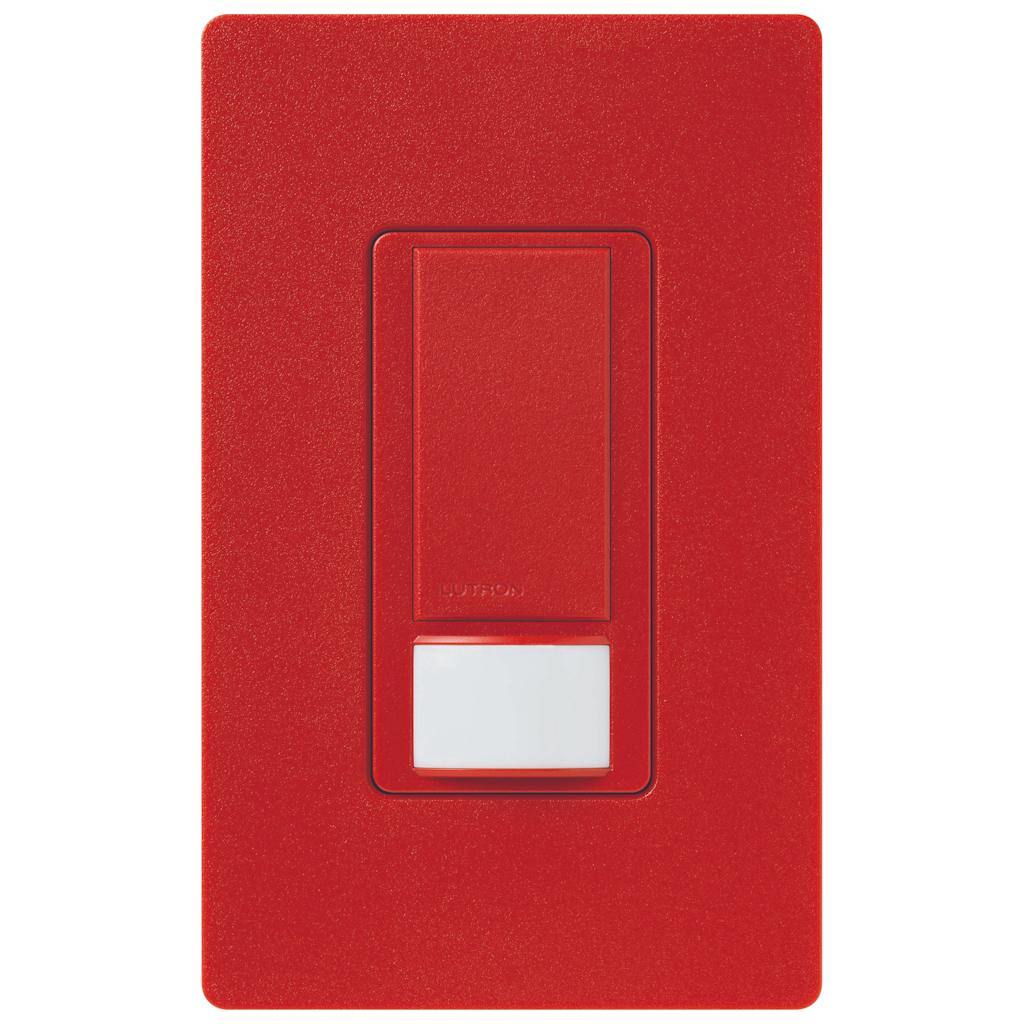

120 volt Hot Red In-Wall Switch Vacancy Sensor 1

About

Specs

SKULU98368

ManufacturerLutron

Manufacturer Part #MS-VPS5M-HT

Manufacturer DescriptionMS-VPS5M-HT MAESTRO PIR VAC 5A SWITCH HT BOX

UPC Code027557983686

Case Size5

Color FinishHot Red

Length4.7

Width2.9

Additional SpecsMaximum Load, 5 amps

FeaturesMaximum of 5 amps, Ground connection is required, Sensor can be bypassed to keep the lights on by extending the time out period up to 30 minutes. Cannot override sensor so lights stay on indefinitely, Does not detect motion through glass@Troubleshooting, Problem: Cannot switch power on or off with a newly installed sensor switch, Sensor requires a true earth ground connection in order to operate properly. First ensure that the device's green and bare wires are connected to the ground in your wallbox. If a ground is not available this device will not function properly. If you do have a ground but are still experiencing this issue it's possible that the ground wire does not directly return to the breaker panel. In that situation a true earth ground connection would need to be introduced or this device may not function properly. If you believe this is the issue please call Lutron's support line at 844-LUTRON-1, Problem: Lights do not turn on when space is occupied, If being used in a 3 or 4-way application wiring may be incorrect. If using with a 3-way mechanical switch check wiring changes were made at the mechanical switch per step 3 of the Installation Instructions, Sensor is vacancy only model, Sensor is set to one of the Ambient Light Detection (ALD) settings and the room is too bright for the current light level setting, Sensor does not have full view of the room. Move objects that may be blocking line-of-sight, Problem: Lights turn off while space is occupied, Sensor's timeout may be too short, Sensor's sensitivity may be set for low, Sensor may not have full view of the room, Problem: Lights will not turn off once space is unoccupied, Sensor's timeout may be set for too long, An external noise such as an HVAC vent may be interfering with the sensor. Try changing the sensitivity to low, Problem: 3-way switch does not turn the lights on, 3-way switch may have a locator light which can affect the sensor's performance. Lutron recommends replacing the 3-way switch with one that does not have a locator light, Check wiring in Installation Instructions, Problem: Lights turn on in vacancy mode, In vacancy mode a 15 second grace period follows the timeout where the sensor will turn back on if it senses motion

ApplicationsIn 3-way applications use sensor with either a companion switch such as model MA-AS or a mechanical switch. If using a mechanical switch the switch must be rewired. See step 3 of the 3-way wiring section in the Installation Instructions, In 4-way applications companion switches such as model MA-AS must be used

Files

Installation Instructions

0301647.pdf
