About
Specs
SKULU98259
ManufacturerLutron
Manufacturer Part #MS-OPS2-BL
Manufacturer DescriptionMS-OPS2-BL MAESTRO PIR OCC 2A SWITCH BL BOX
UPC Code027557982597
Case Size6
Color FinishBlack
FeaturesFor lighting loads only, Ground connection required, Neutral connection not required, Sensor can be bypassed to keep the lights on by extending the time out period to up to 30 minutes. Cannot override sensor so lights stay on indefinitely, Does not detect motion through glass@Troubleshooting, Problem: Lights do not turn on when space is occupied, Check sensor is not in manual-on mode (vacancy mode), Sensor may be set to auto-on daylight sensing (ALD) which will not turn the lights on if there is already a significant amount of light in the room, Problem: Lights turn off while space is occupied, Sensor's timeout may be too short, Sensor's sensitivity may be set for low, Sensor may not have full view of the room, Problem: Lights will not turn off once space is unoccupied, Sensor's timeout may be set for too long, An external noise such as an HVAC vent may be interfering with the sensor. Try changing the sensitivity sensing to low, Problem: Lights turn on in vacancy mode, In vacancy mode a 15 second grace period follows the timeout where the sensor will turn the lights back on if it senses motion
Files
Installation Instructions
0301654.pdf
Custom Settings
Single Pole Wiring Diagram
Brochure
Lutron
PART NUMBER: LU98259

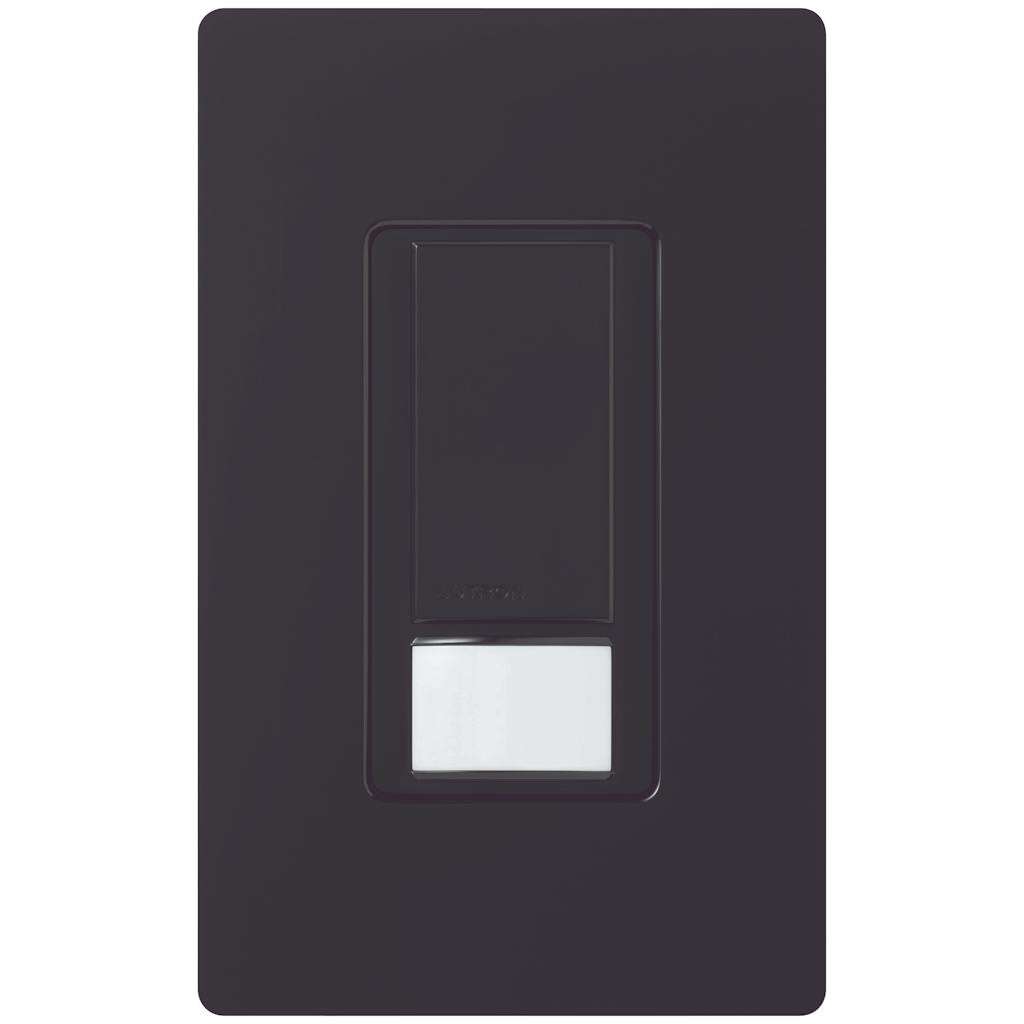

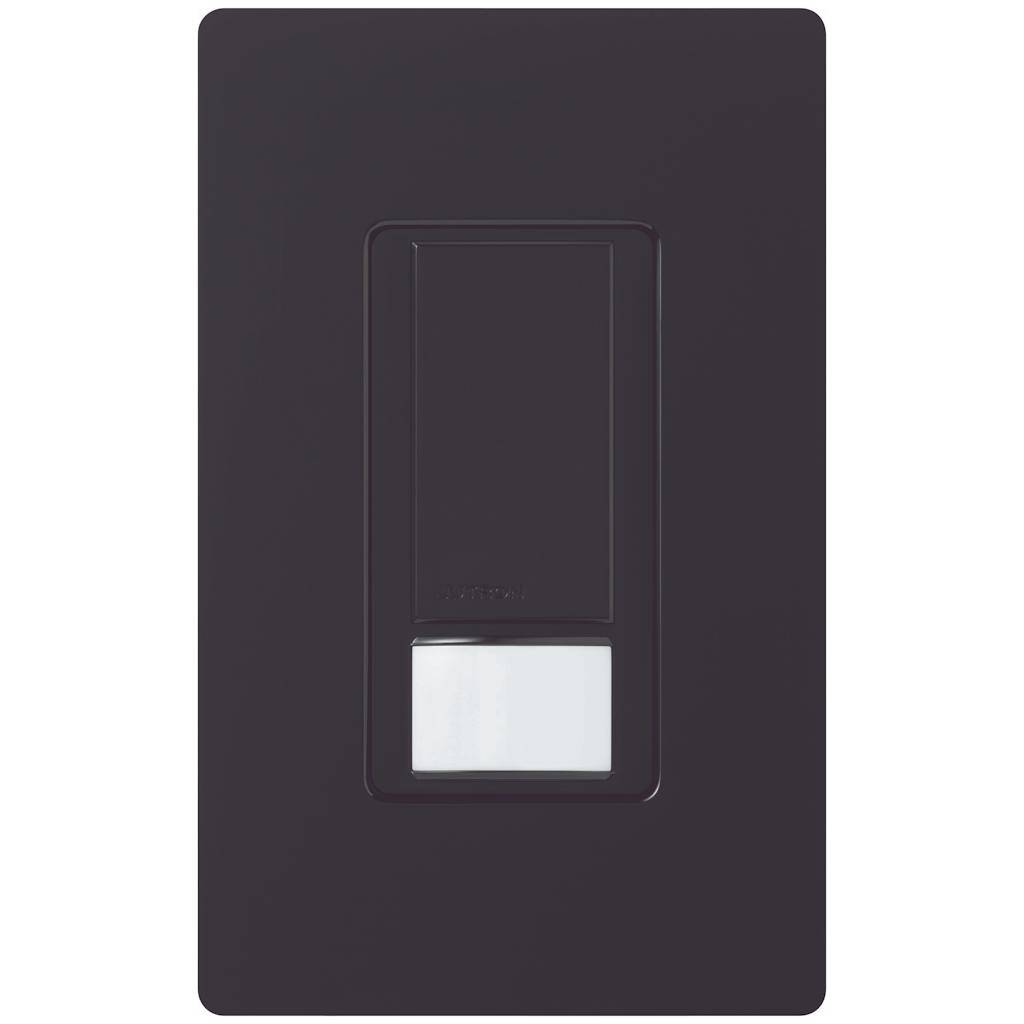

Lutron 120/277 volt Black In-Wall Switch Occupancy and Vacancy Sensor
120/277 volt - Black - In-Wall Switch - Occupancy - Vacancy - Maestro
MPN#: MS-OPS2-BL
Ships in 7 – 10 business days
- Regular price
- $22.49
- Sale price
- $22.49
- Regular price
-
$22.49
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
