About
Specs
SKULU66359
ManufacturerLutron
Manufacturer Part #DVSCTV-BI
Manufacturer DescriptionDVSCTV-BI DIVA 0-10V CLASS 2 BISCUIT
UPC Code027557663595
Case Size8
Color FinishBiscuit
Length4.7
Width2.9
Additional SpecsBulb Compatibility, Fluorescent Ballasts LED Drivers
FeaturesControl for 0-10 volt LED drivers and fluorescent ballasts, Must be used with a power pack relay model, Cannot be used with a wired occupancy sensor@Troubleshooting, Problem: Lights do not dim or remain at low light level, Remove the 0-10 volt (violet/gray) leads from the control. Lights should go to 100%. If not check the fixture wiring. Touch the violet/gray wires together on the ballast/driver and lights should dim down to low end. If not follow troubleshooting steps from the ballast/driver manufacturer, Problem: Light drops out when dimming or turns on to brightest level before reaching the highest level on the dimmer, Adjust low-end or high-end trim according to Installation Instructions, Problem: Lights do not turn on, Make sure you are using this with PP-DV power pack
ApplicationsMust be used with a power pack model PP-DV or PP-347H
Files
Installation Instructions
0301891.pdf
0-10 Volt Control Topology
Single Pole Wiring Diagram
Lutron
PART NUMBER: LU66359

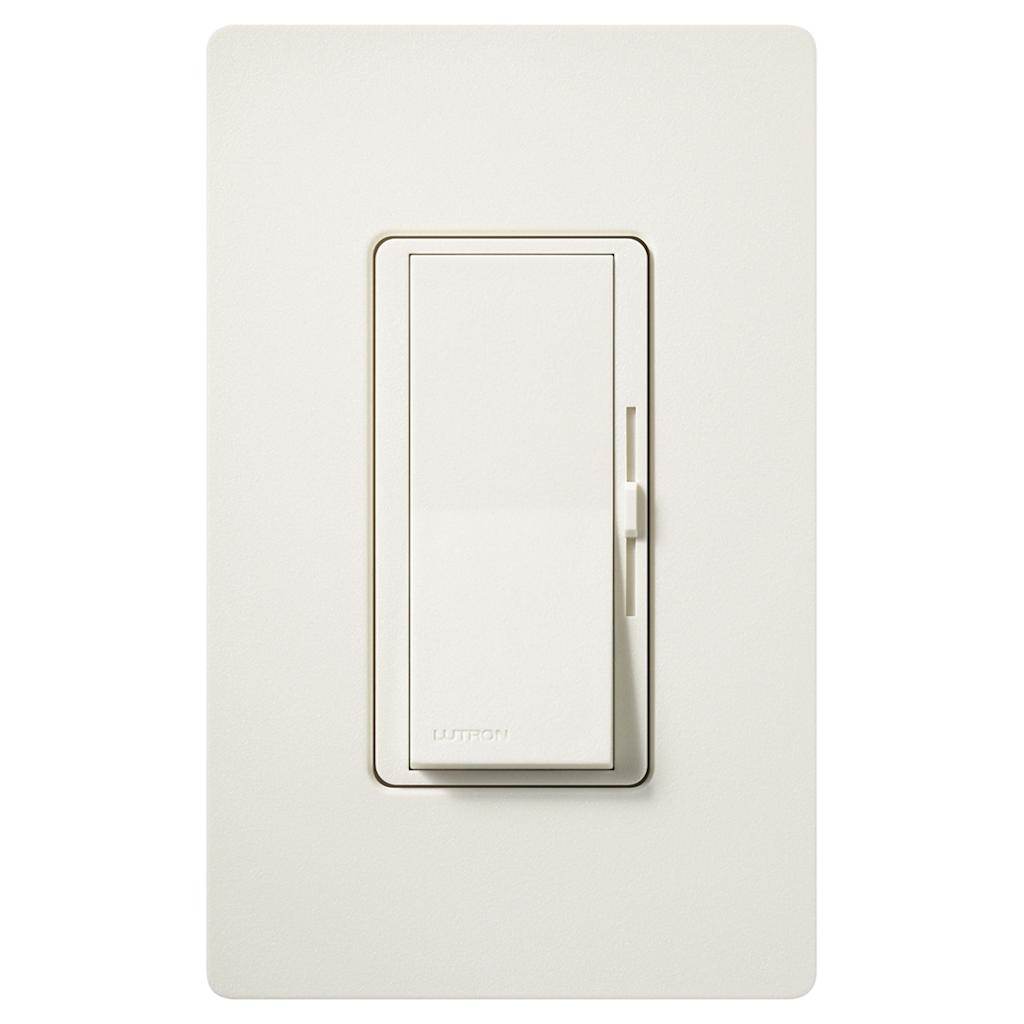

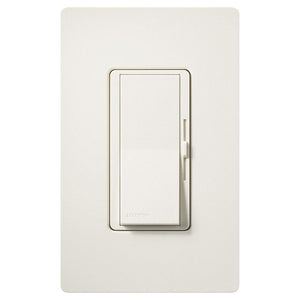

Lutron 0-10 volt 16 amp Biscuit Single-Pole Ballast / Driver Wall Dimmer Switch
0-10 volt - 16 amp - Biscuit - Wall Switch - Ballast / Driver Compatible - Single-Pole - Diva
MPN#: DVSCTV-BI
Ships in 7 – 10 business days
- Regular price
- $90.95
- Sale price
- $90.95
- Regular price
-
$90.95
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
