About
Specs
SKULU66346
ManufacturerLutron
Manufacturer Part #DVTV-IV
Manufacturer DescriptionDVTV-IV DIVA 0-10V CLASS 2 IVORY
UPC Code027557663465
Case Size8
Color FinishIvory
Length4.7
Width2.9
Additional SpecsBulb Compatibility, Fluorescent Ballasts LED Drivers
FeaturesControl for 0-10 volt LED drivers and fluorescent ballasts, Must be used with a power pack, Cannot be used with a wired occupancy sensor@Troubleshooting, Problem: Lights do not dim or remain at low light level, Remove the 0-10 volt (violet/gray) leads from the control. Lights should go to 100%. If not check the fixture wiring. Touch the violet/gray wires together on the ballast/driver and lights should dim down to low end. If not follow troubleshooting steps from the ballast/driver manufacturer, Problem: Light drops out when dimming or turns on to brightest level before reaching the highest level on the dimmer, Adjust low-end or high-end trim according to Installation Instructions, Problem: Lights do not turn off, Make sure this is being used with a power pack
ApplicationsMust be used with power pack model PP-DV (120-277 volt) or PP-347H (347 volt)
Files
Installation Instructions
0301891.pdf
Application 442 for Current Sink Only Controls
0-10 Volt Control Topology
Single Pole Wiring Diagram
CAD Block
Lutron
PART NUMBER: LU66346

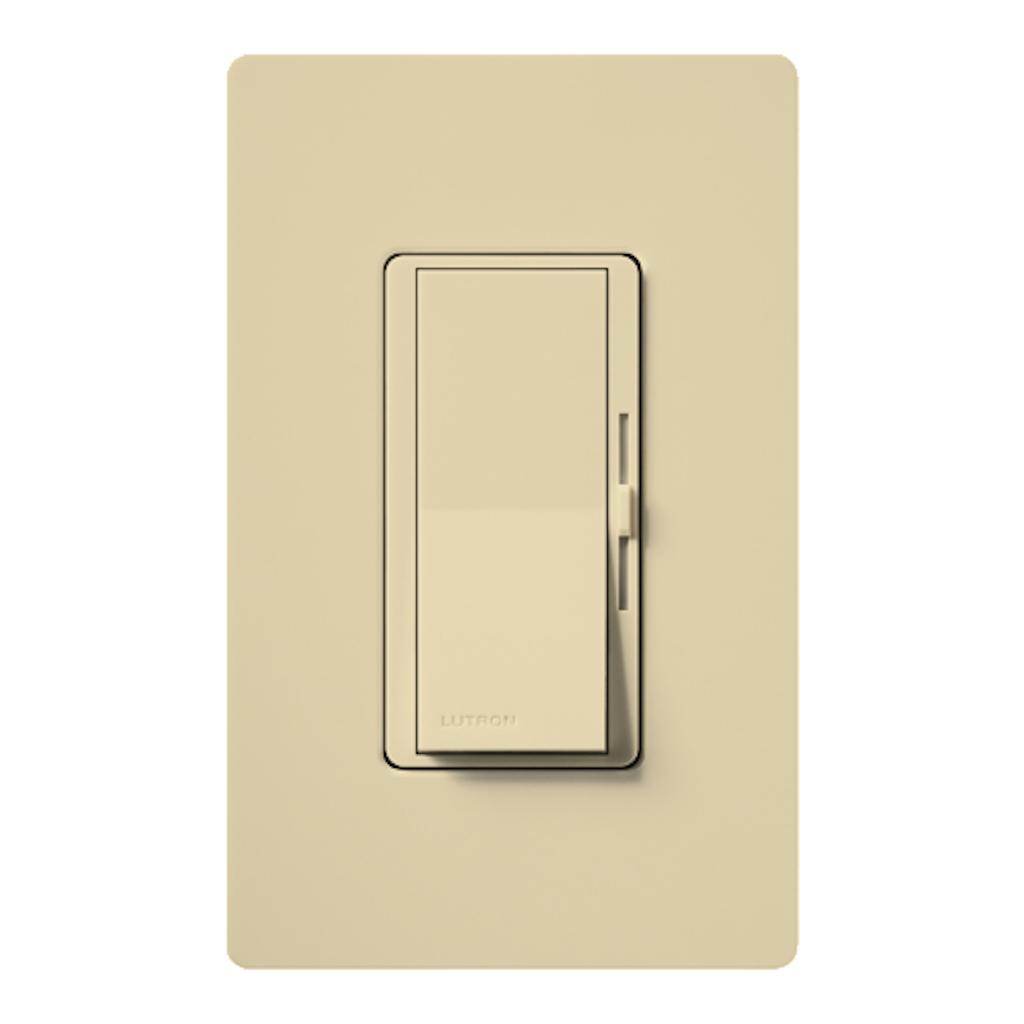

Lutron 0-10 volt 16 amp Ivory Single-Pole Ballast / Driver Wall Dimmer Switch
0-10 volt - 16 amp - Ivory - Wall Switch - Ballast / Driver Compatible - Single-Pole - Diva
MPN#: DVTV-IV
Ships in 7 – 10 business days
- Regular price
- $82.95
- Sale price
- $82.95
- Regular price
-
$82.95
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
