About
Specs
SKULU52598
ManufacturerLutron
Manufacturer Part #S2-LF-LA
Manufacturer DescriptionS2-LF-LA SKYLARK DUAL FAN/LIGHT/LIGHT ALMOND
UPC Code027557525985
Case Size12
Color FinishLight Almond
Additional SpecsApplication Type, Single-PoleBulb Compatibility, Incandescents HalogensMaximum Wattage, 300 wattsMaximum Fan Load, 2.5 amps
FeaturesLight portion can switch 40-300 watts incandescent or halogen, Controls multiple fans as long as total fan motor does not exceed 2.5 amps, Solid-state control, Will not work on a fan with a DC motor@Troubleshooting, Problem: Light does not turn on/off or flickers, Check that light pull chains are in "on" position, Make sure bulbs in use are incandescent or halogen, Ensure fan does not have a "current-limiting device" in the light kit, Problem: Fan does not come on or is stuck at low speed, Check that fan pull chains are in "on" position and set for the highest speed, Problem: Fan buzzes or hums, Make sure fan can be used with solid-state fan controls, Fully variable controls like this one can cause a fan motor to hum or buzz, Problem: Light switch controls the fan and the fan slider controls the light, Red and yellow wires are reversed, Problem: Light switch will only work if the fan slider is on or vice-versa, One of the load wires and the common wire are switched. Check Wiring Diagram for correct wiring
Files
Installation Instructions
0301276B.pdf
Dimmer Application 519
Wiring Diagram
Dimmer Application 3
Lutron
PART NUMBER: LU52598

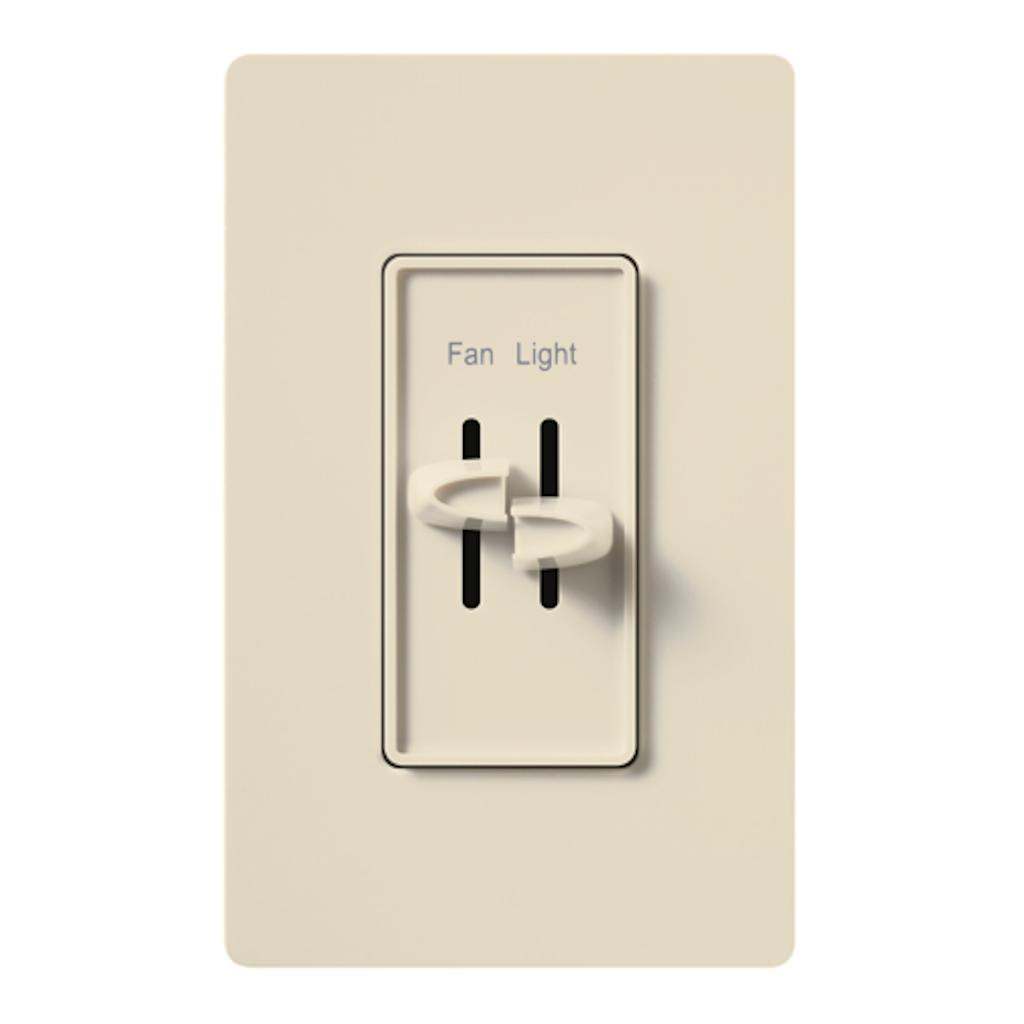

Lutron 120 volt 2.5 amp Light Almond Slider Fully Variable Fan and Light Control
120 volt - 2.5 amp - Light Almond - Wall Switch - Single-Pole - Slider - Fully Variable - Skylark
MPN#: S2-LF-LA
Ships in 7 – 10 business days
- Regular price
- $39.89
- Sale price
- $39.89
- Regular price
-
$39.89
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
