About
Specs
SKULU45010
ManufacturerLutron
Manufacturer Part #SF-12P-277-3-WH
Manufacturer DescriptionSF-12P-277-3-WH SKYLARK FLUOR 277V 1-12LP 3WY WHITE
UPC Code027557450102
Case Size6
Color FinishWhite
Additional SpecsBulb Compatibility, Fluorescents
FeaturesOn / off switch, Preset slide dimmer, Neutral connection required@Troubleshooting, Problem: Light does not turn on, Make sure control is being used with a Lutron 3-wire ballast or driver, Problem: One location will not turn on if the other location is turned off, The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control one side will only turn on if the other is in the on position.
ApplicationsUse one dimmer in a 3-way application. In the other location use a standard mechanical switch such as model CA-3PS. Because this requires a neutral connection dimmer must be placed on the load side of the 3-way
Files
Installation Instructions
032345.pdf
Single Pole Wiring Diagram
3-Way Wiring Diagram
Lutron
PART NUMBER: LU45010

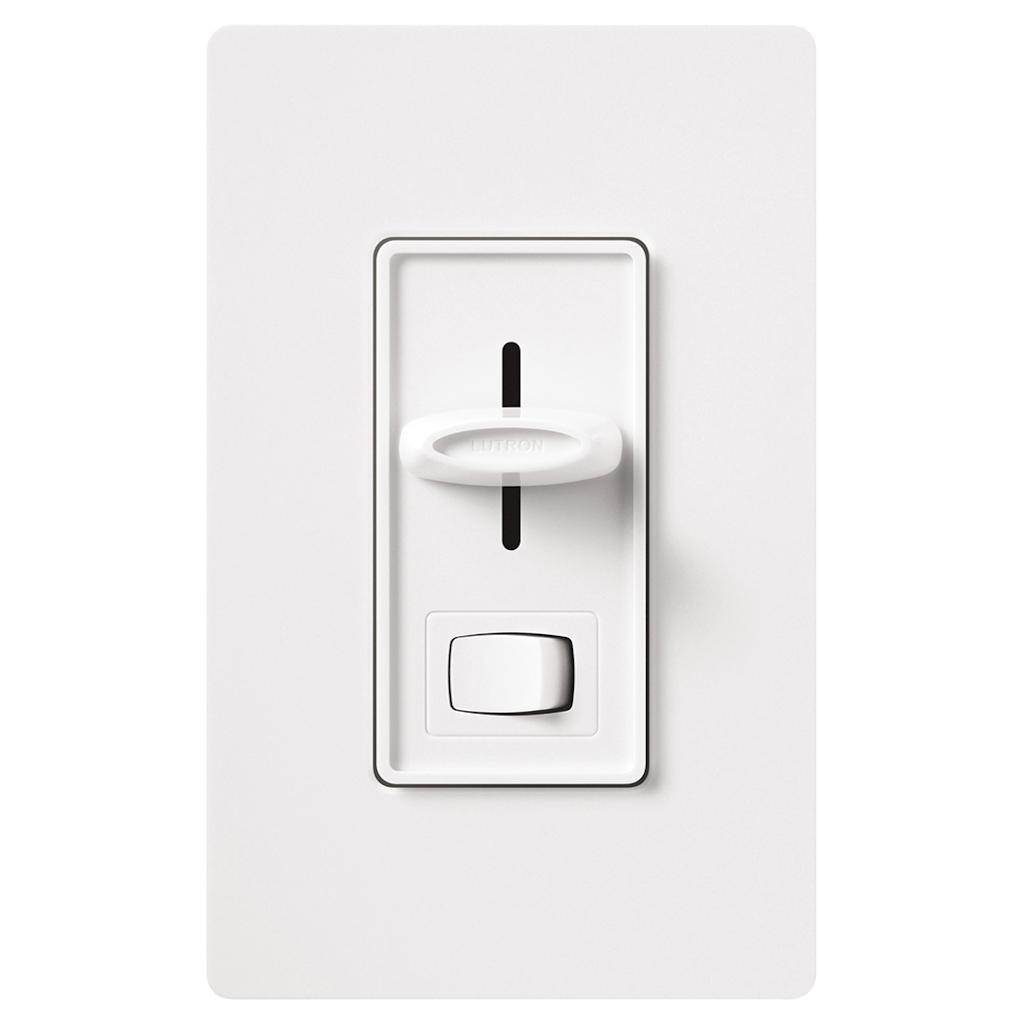

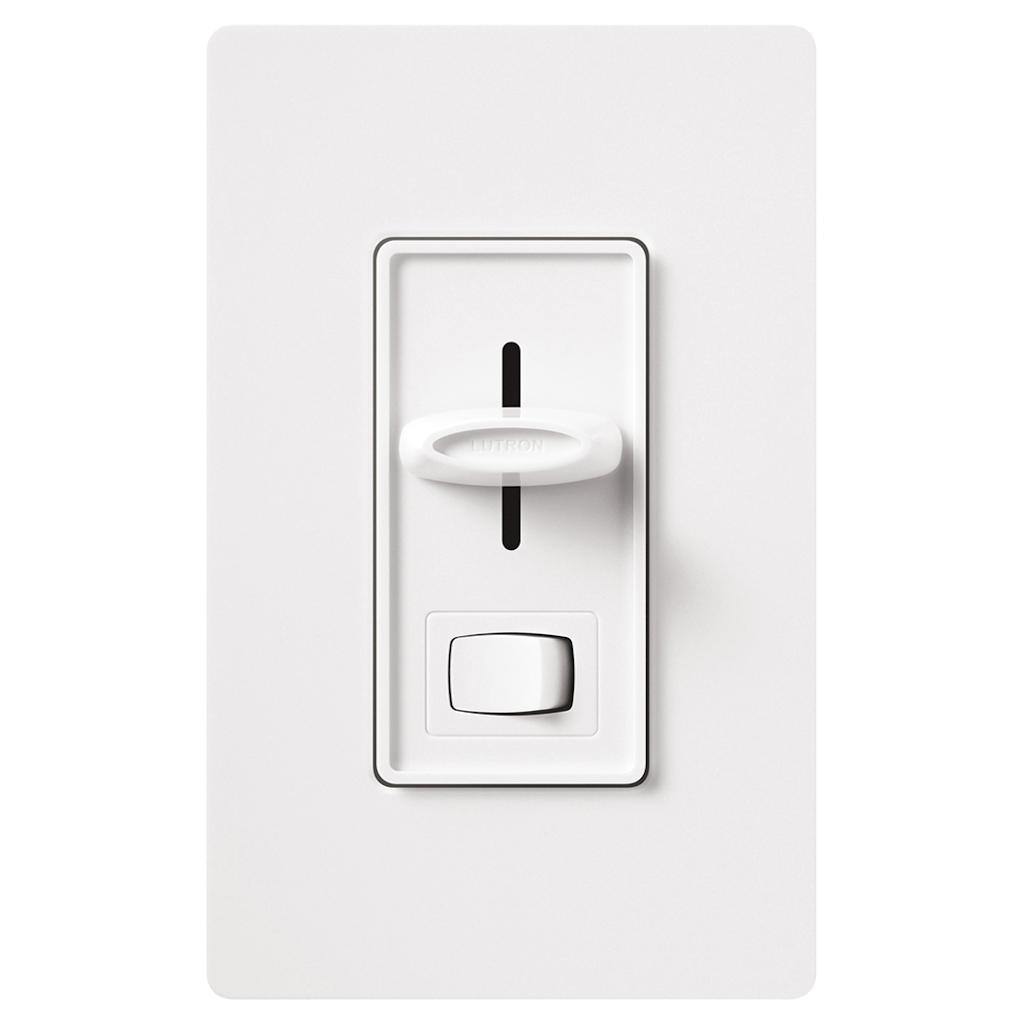

Lutron 277 volt 6 amp White Single-Pole / 3-Way 3-Wire Fluorescent Wall Dimmer Switch
277 volt - 6 amp - White - Wall Switch - Preset Dimmer - Fluorescent Compatible - Single-Pole / 3-Way - 3-Wire - Skylark
MPN#: SF-12P-277-3-WH
Ships in 7 – 10 business days
- Regular price
- $208.29
- Sale price
- $208.29
- Regular price
-
$208.29
Shipping calculated at checkout.
Product Note
This product does not include the backplate as pictured.
