About
Specs
SKULX09987
ManufacturerLutron
Manufacturer Part #MS-Z101-AL
Manufacturer DescriptionMS-Z101-AL 0-10V DIMMER SENSOR ALMOND
UPC Code784276099875
Case Size6
Color FinishAlmond
Features0-10 volt dimming, Single-pole 3-way or multi-location use, Maximum 8A, Lutron companion dimmers (model MA-R) are not compatible with this sensor. Use companion model MA-S if a companion dimmer is needed, Occupancy portion of the sensor can be disabled so the lights must manually turn on (this is vacancy mode), 2 Maestro sensors cannot be used in a 3-way application. A mechanical 3-way switch or Maestro companion switch (model MA-AS) will need to be used in the other location@Troubleshooting, Problem: Lights do not dim or remain at low light level, Remove the 0-10V (violet/gray) leads from the control. Lights should go to 100%. If they don't check the fixture wiring. Touch the violet/gray wires together on the ballast or driver. Lights should dim to low end. If not consult troubleshooting steps from the ballast/driver manufacturer., Problem: Light drops out when dimming or turns on to brightest level before reaching the highest level on the dimmer, Adjust low-end or high-end trim as per instructions in the advanced programming guide
Files
Installation Instructions
032504.pdf
Application 442 for Current Sink Only Controls
Application 536 for Maestro 0-10V Dimmer Sensor
Single Pole Wiring Diagram
3-Way Wiring (Mechanical Switch) Diagram
3-Way Wiring (Companion Switch) Diagram
4-Way Wiring (Companion Switch) Diagram
CAD Block
Lutron
PART NUMBER: LX09987

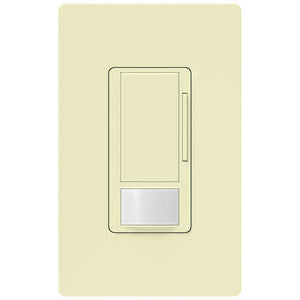

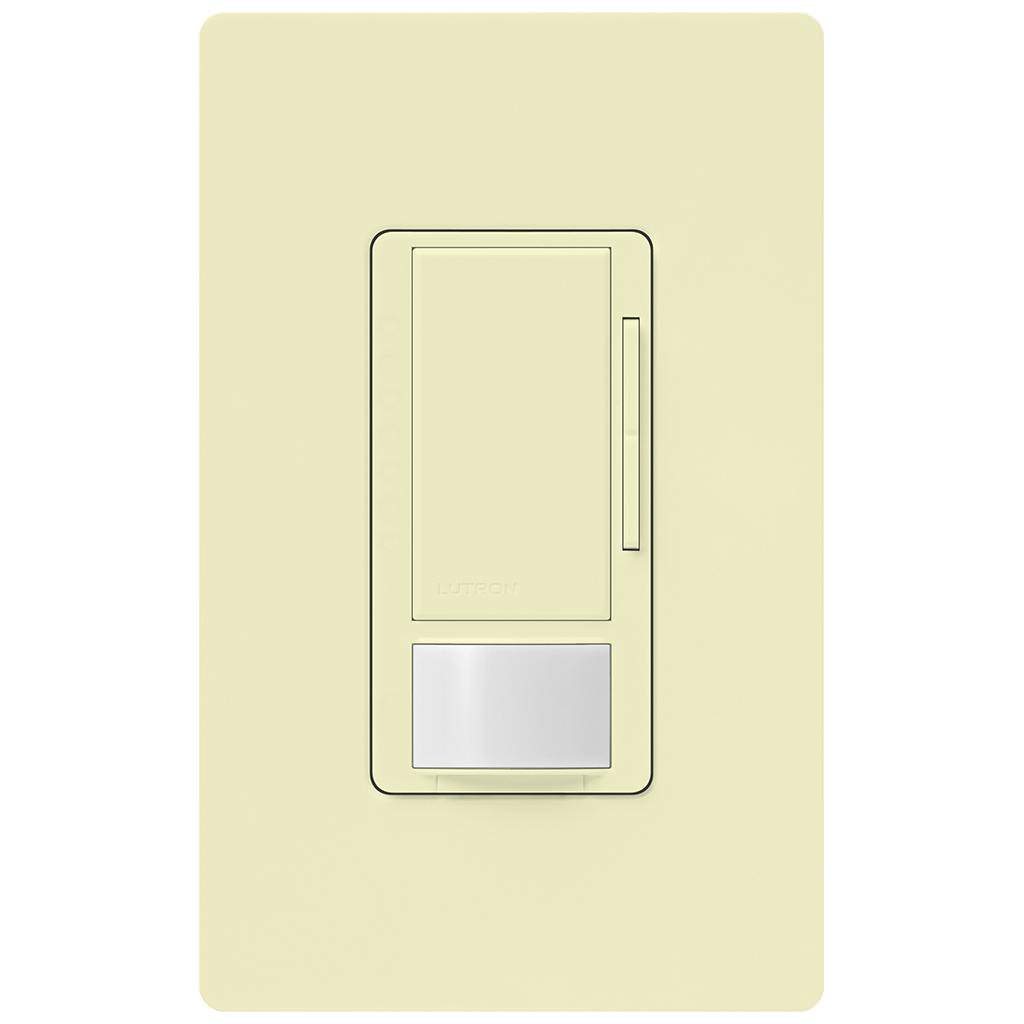

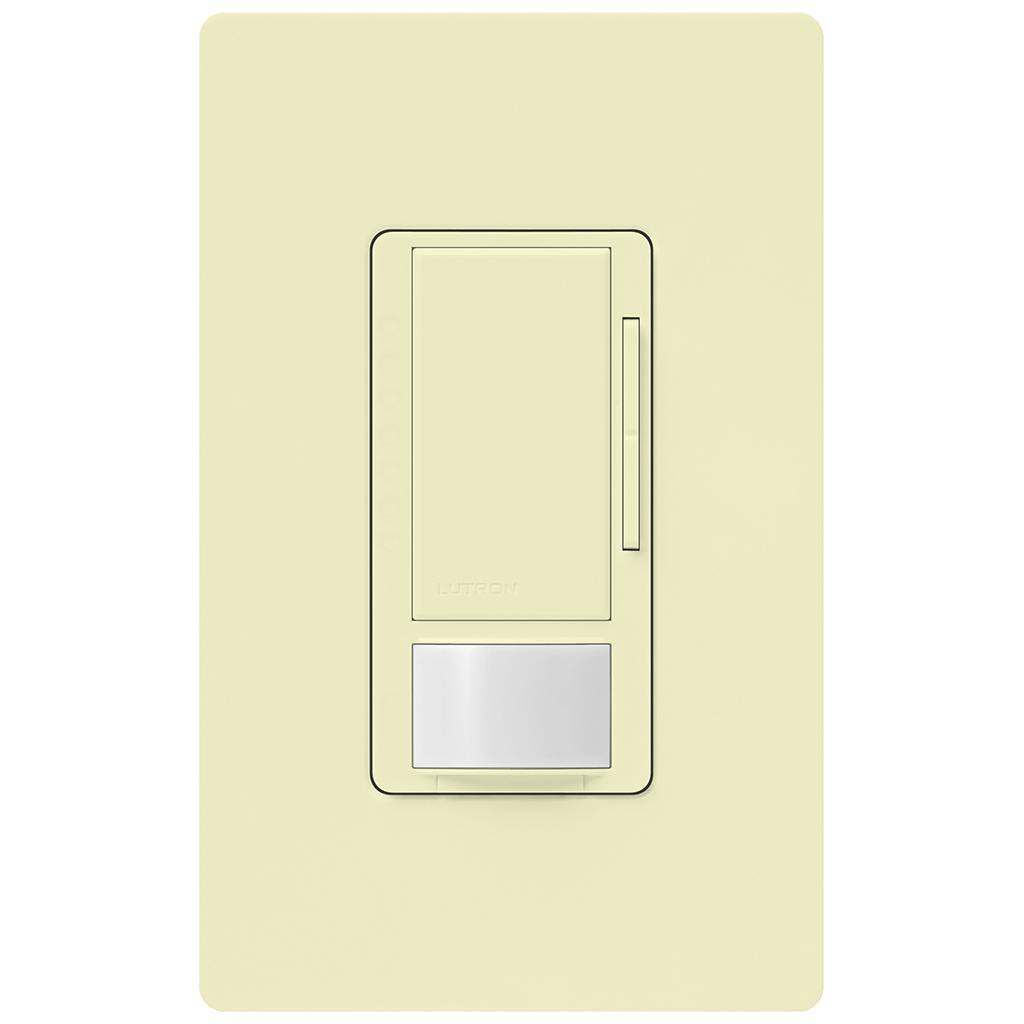

Lutron 120/277 volt Almond Wall Switch Occupancy and Vacancy Sensor/Dimmer
120/277 volt - Almond - Wall Switch - Occupancy - Vacancy - Maestro
MPN#: MS-Z101-AL
Ships in 7 – 10 business days
- Regular price
- $94.95
- Sale price
- $94.95
- Regular price
-
$94.95
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
