SKULX09979
ManufacturerLutron
Manufacturer Part #DVSCSTV-SW
Manufacturer DescriptionDVSCSTV-SW DIVA 0-10 W/SWITCHING BOX WHITE
UPC Code784276099790
Case Size8
Color FinishSnow
Length4.7
Width2.9
Additional SpecsBulb Compatibility, Fluorescent Ballasts LED Drivers
FeaturesControl for 0-10 volt LED drivers and fluorescent ballasts, Connects directly to the line voltage to switch on/off so a power pack is not needed, Cannot be used with a wired occupancy sensor@Troubleshooting, Problem: Lights do not dim or remain at low light level, Remove the 0-10 volt (violet/gray) leads from the control. Lights should go to 100%. If not check the fixture wiring. Touch the violet/gray wires together on the ballast/driver and lights should dim down to low end. If not follow troubleshooting steps from the ballast/driver manufacturer, Problem: Light drops out when dimming or turns on to brightest level before reaching the highest level on the dimmer, Adjust low-end or high-end trim according to Installation Instructions, Problem: Lights do not turn on, Make sure ballast/driver goes through the switch and is not fed with a constant hot feed
Files
Installation Instructions
0301769.pdf
0-10 Volt Control Topology
Single Pole Wiring Diagram
3-Way Wiring Diagram
Spec Sheet
Lutron
PART NUMBER: LX09979

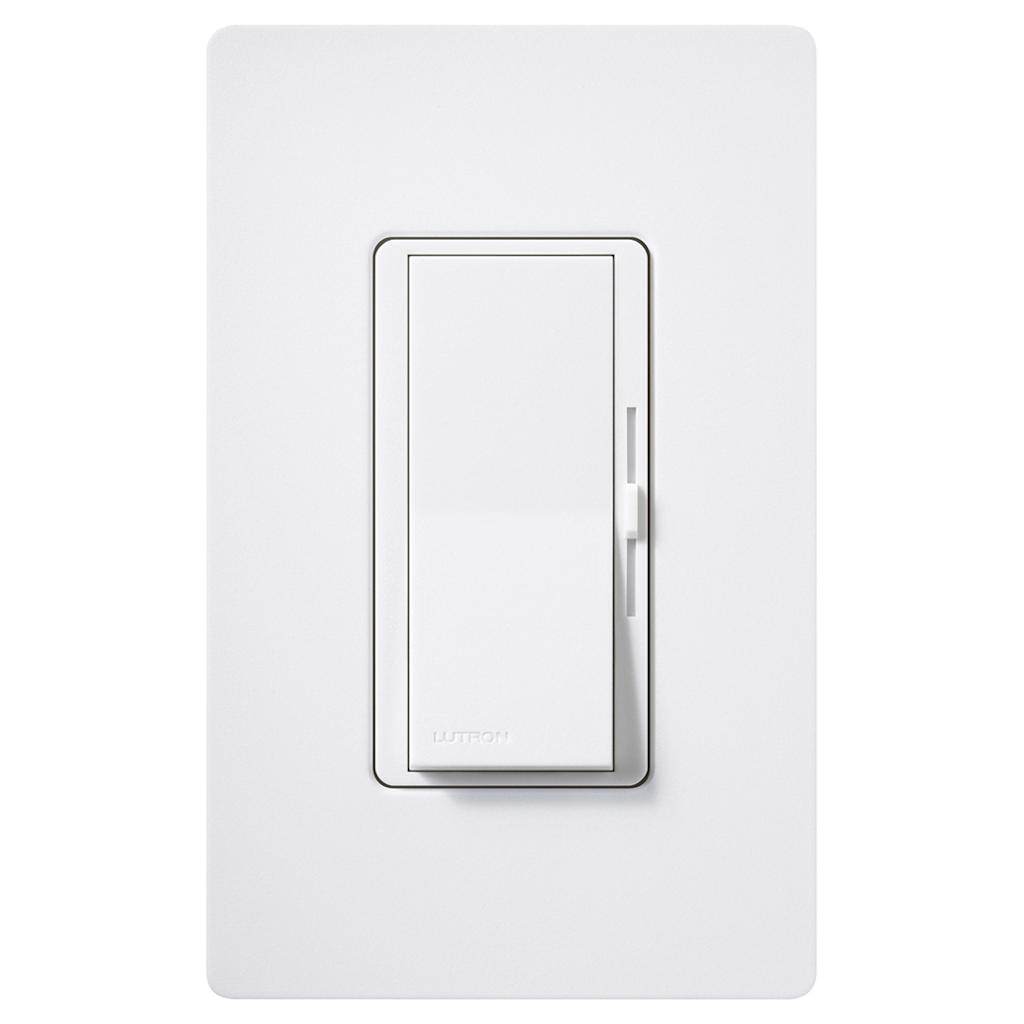

Lutron 0-10 volt 8 amp Snow Single-Pole / 3-Way Ballast / Driver Wall Dimmer Switch
0-10 volt - 8 amp - Snow - Wall Switch - Ballast / Driver Compatible - Single-Pole / 3-Way - Diva
MPN#: DVSCSTV-SW
Ships in 7 – 10 business days
- Regular price
- $86.95
- Sale price
- $86.95
- Regular price
-
$86.95
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
