SKULX08614
ManufacturerLutron
Manufacturer Part #MS-B202-LA
Manufacturer DescriptionMS-B202-LA MAESTRO 2-CIR DT OCC SENS
UPC Code784276086141
Case Size6
Color FinishLight Almond
FeaturesDual technology, Dual circuit, Neutral connection is required, Ground connection not required, Occupancy portion can be disabled so lights must be manually turned on (vacancy mode). Cannot override the sensor to keep the lights on all the time, Do not apply 120V and 277V to different circuits on the same sensor. Use two separate sensors for this kind of application@Troubleshooting, Problem: Sensing switch is unpowered or is powered but does not turn the lights on or off, If installed in a 3-way with another mechanical switch be sure to rewire the mechanical switch using Wiring Step 2B in the installation instructions, Check wiring. Neutral wire must be connected for product to function, Problem: Lights do not turn on when space is occupied, Off-While-Occupied mode may be enabled and the timeout has not expired, Sensor mode is set to vacancy, Sensor is set to one of the Ambient Light Detection (ALD) settings and the room is too bright for the current light level setting, Sensor does not have full view of the room. Move objects that may be blocking line-of-sight
Files
Installation Instructions
032445.pdf
Additional Programming and Troubleshooting
Single Pole Wiring Diagram
3-Way Wiring Diagram
Single Pole (2 Line) Wiring Diagram
3-Way (2 Line) Wiring Diagram
Brochure
CAD Block
Lutron
PART NUMBER: LX08614

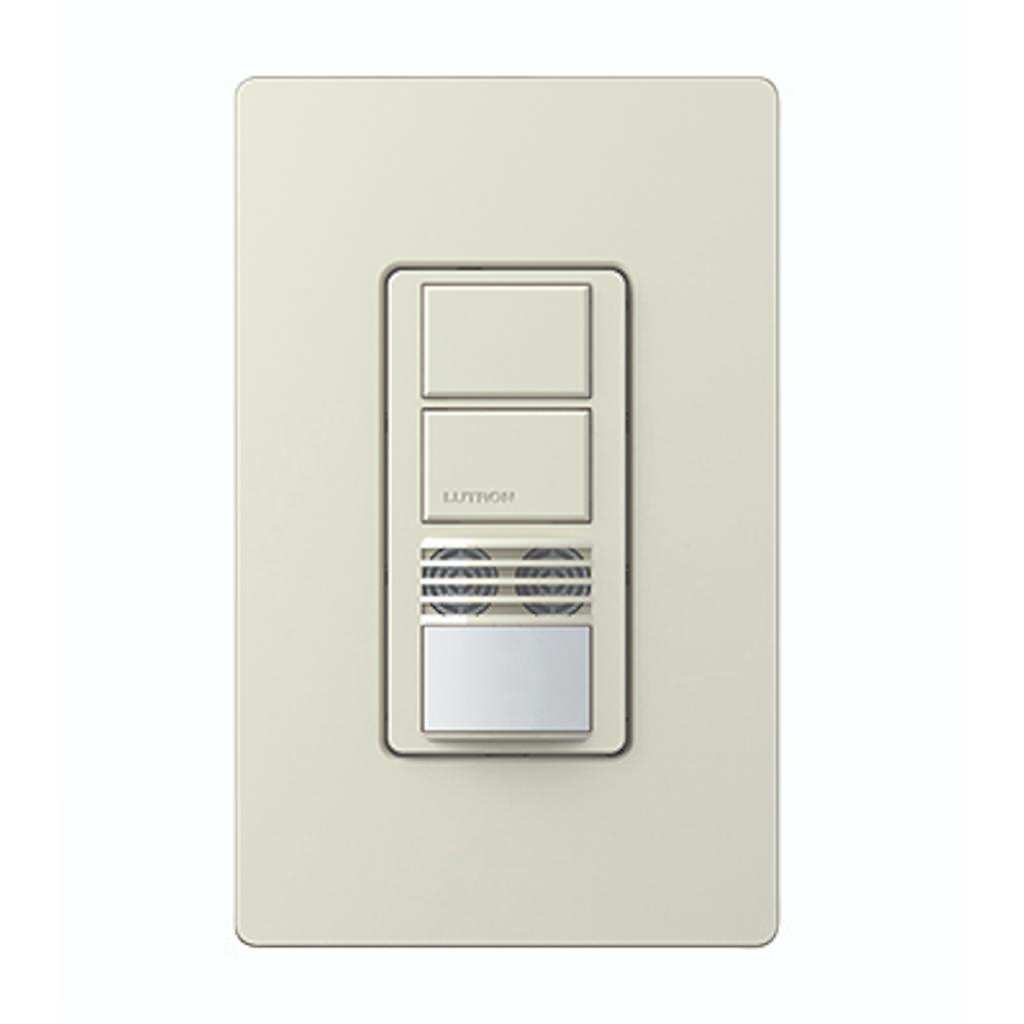

Lutron 120/277 volt Light Almond In-Wall Switch Occupancy and Vacancy Sensor
120/277 volt - Light Almond - In-Wall Switch - Occupancy - Vacancy - Maestro
MPN#: MS-B202-LA
Ships in 7 – 10 business days
- Regular price
- $104.99
- Sale price
- $104.99
- Regular price
-
$104.99
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
