About
Specs
SKULU08265
ManufacturerLutron
Manufacturer Part #MA-S8AM-GR
Manufacturer DescriptionMA-S8AM-GR MAESTRO 8 AMP SWITCH M-LOC GRAY
UPC Code027557082655
Case Size8
Color FinishGray
Additional SpecsBulb Compatibility, CFL LED
FeaturesWorks with CFL and LED lighting, Neutral connection required, Can be installed without a ground connection@Troubleshooting, Problem: Lights do not turn on, Make sure bulbs have not burned out, Check switch is wired correctly (wires connected to black and brass screws may be reversed), Ensure neutral wire is hooked up, If controlling a fan ensure pull chain is in "on" position, Ensure Front Accessible Service Switch (FASS) is not pulled out, Problem: Companion switch does not work, Make sure the master switch is installed on the load side, Check that the wire connected to the blue screw on the master dimmer is the same wire connected to the blue screw on the companion dimmer, Problem: LED on dimmer glows dimly or blinks, The blue screw terminal is miswired or connected to the ground or neutral wire
ApplicationsUse one dimmer in a 3-way or 4-way application. In the other location use a companion dimmer such as model MA-AS. Since they have a neutral wire connection the master dimmer needs to be placed on the load side of the 3 or 4 way (place companion switches in remaining locations)
Files
Installation Instructions
0301583.pdf
Single Pole Wiring Diagram
3-Way Wiring (Companion Switch) Diagram
4-Way Wiring (Companion Switches) Diagram
CAD Block
Lutron
PART NUMBER: LU08265

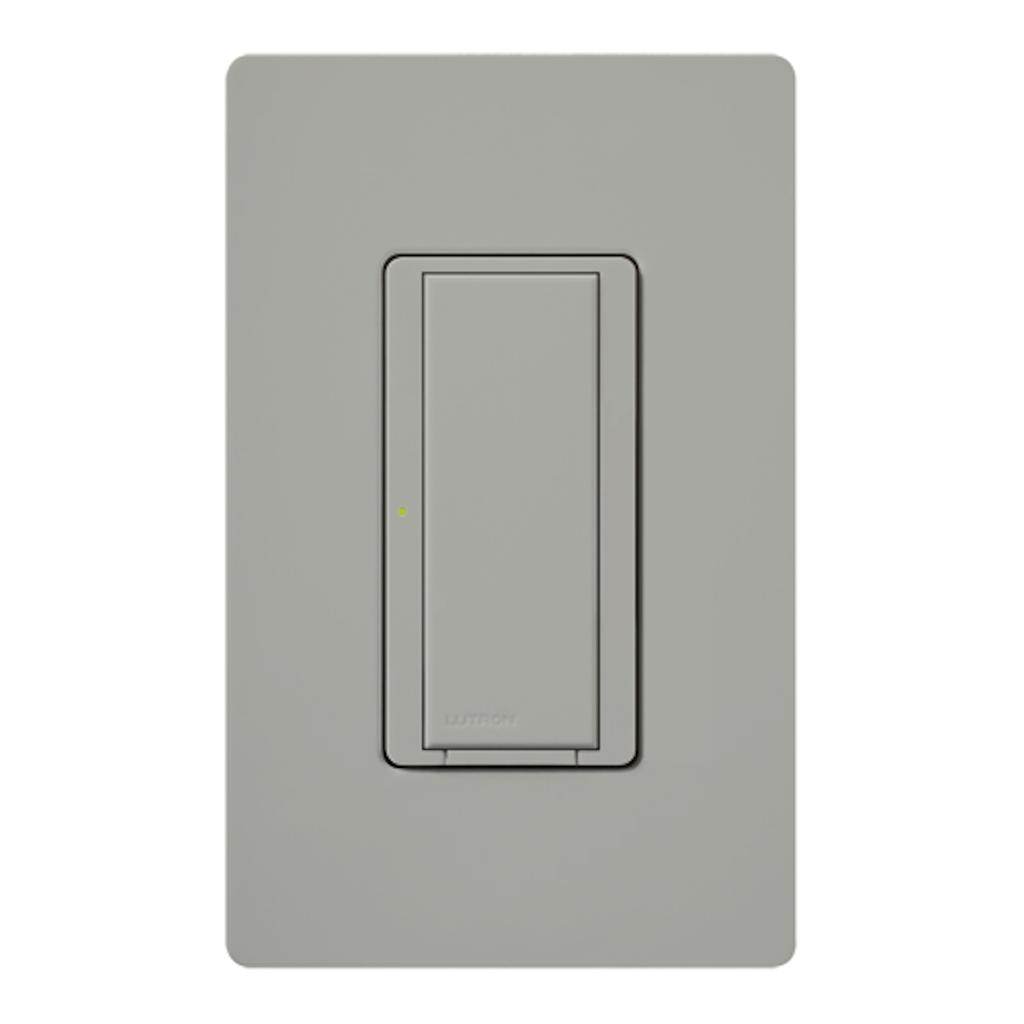

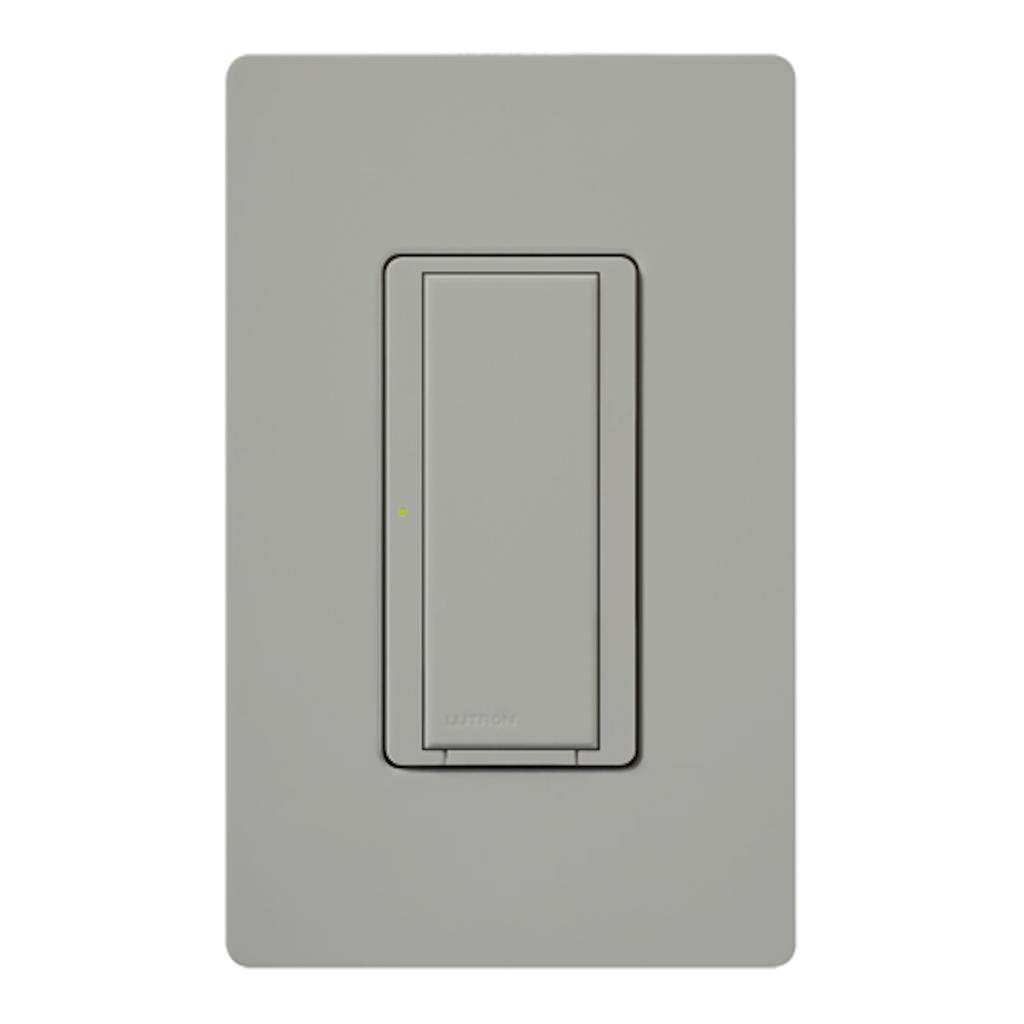

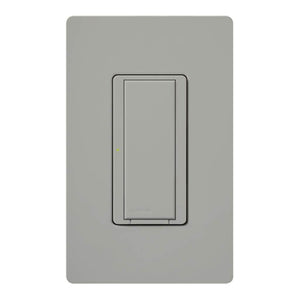

Lutron 120 volt Gray 8 amp Single-Pole / 3-Way Digital Wall Dimmer Switch
120 volt - 8 amp - Gray - Wall Switch - Digital - Single-Pole / 3-Way - Maestro
MPN#: MA-S8AM-GR
Ships in 7 – 10 business days
- Regular price
- $39.99
- Sale price
- $39.99
- Regular price
-
$39.99
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
