SKULX01070
ManufacturerLutron
Manufacturer Part #MACL-153M-GR
Manufacturer DescriptionMACL-153M-GR MAESTRO C.L MULTILOC ED BOX GRAY
UPC Code784276010702
Case Size12
Color FinishGray
Additional SpecsLED/CFL Maximum Wattage, 150 wattsIncandescent/Halogen Maximum Wattage, 600 wattsMinimum Load, 10 watts incandescent/halogenBulb Compatibility, LED CFL Incandescent Halogen
FeaturesOn / off switch, Slide dimmer, Dimmer capabilities: adjust high and low end trim enable/disable indicator lights fade on/off delayed fade to off time preset light level, Only 1 dimmer can be used in a 3-way application, Works with most incandescent and halogen bulbs; Lutron recommends if using LED or CFL bulbs to use bulbs listed in their compatibility tool, Does not work with low voltage LEDs, Check Lutron's LED compatibility tool for specific bulb compatibility@Troubleshooting, Problem: CFLs or LEDs do not dim have a poor dimming range or they flicker/flash, If using in a 3-way application check that only one master dimmer is being used. The other location must be a mechanical switch or a Lutron companion dimmer, Make sure the bulbs in use are marked as dimmable, Adjust the low-end trim by holding the lower rocker and tapswitch together for 5-6 seconds. When the LED on the dimmer goes out and then starts blinking release and adjust the low end trim until the bulbs become stable, If the bulb you are using flickers drops out or stops dimming when you reach a certain level you have reached the low end level of the bulb's dimming range, Problem: Bulbs or dimmer buzzes, CFLs and LEDs have electrical components inside them that can make noise when the bulbs are on. The noise is not anything to worry about but if the noise is bothersome the best solution is to try a different bulb, Problem: Dimmer is not working in a 3-way application when used with a 3-way mechanical switch, Make sure the mechanical switch has been properly rewired and the dimmer reprogrammed as per instructions 6A and 9 in the installation instructions
ApplicationsCan work with a standard mechanical switch in a 3-way application. The switch will need to be rewired as well as reprogram the dimmer (as shown by installation instructions), In a 4-way application companion dimmer model MA-R or MSC-AD must be used (mechanical switches will not work), In a 4-way application 2 wires will be connected to the blue screw terminal. These will be the wires that are tied to the blue screws on the other two dimmers, In order to dim from multiple locations you will need 1 MACL-153M and 1 companion dimmer (MA-R or MSC-AD), Dimmer does not require a neutral connection
Files
Installation Instructions
0301629b.pdf
Maestro Advanced Programming Mode
Dimmer Application 519
3-Way Wiring (Mechanical Switch) Diagram
4-Way Wiring (Companion Switches) Diagram
Single Pole Wiring Diagram
3-Way Wiring (Companion Switch) Diagram
Spec Sheet
Dimmer Application 3
Lutron
PART NUMBER: LX01070

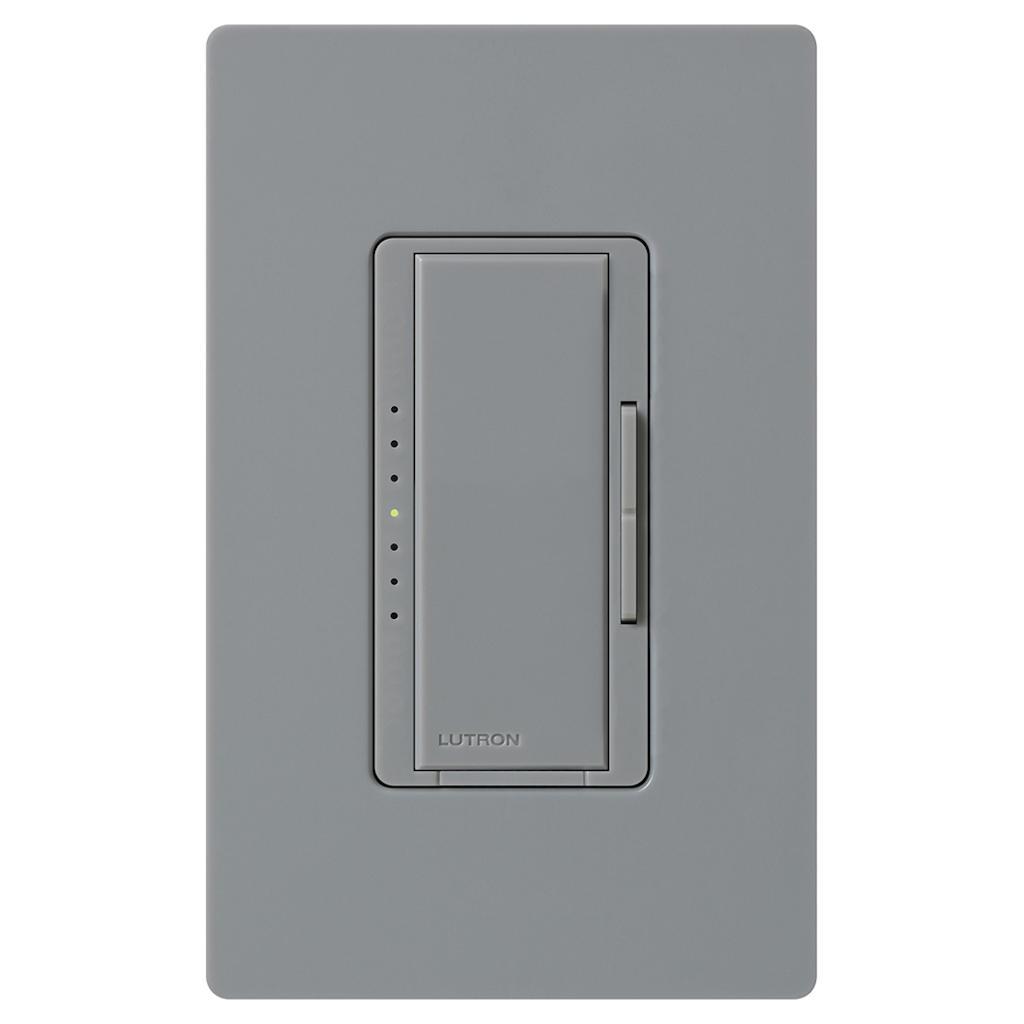

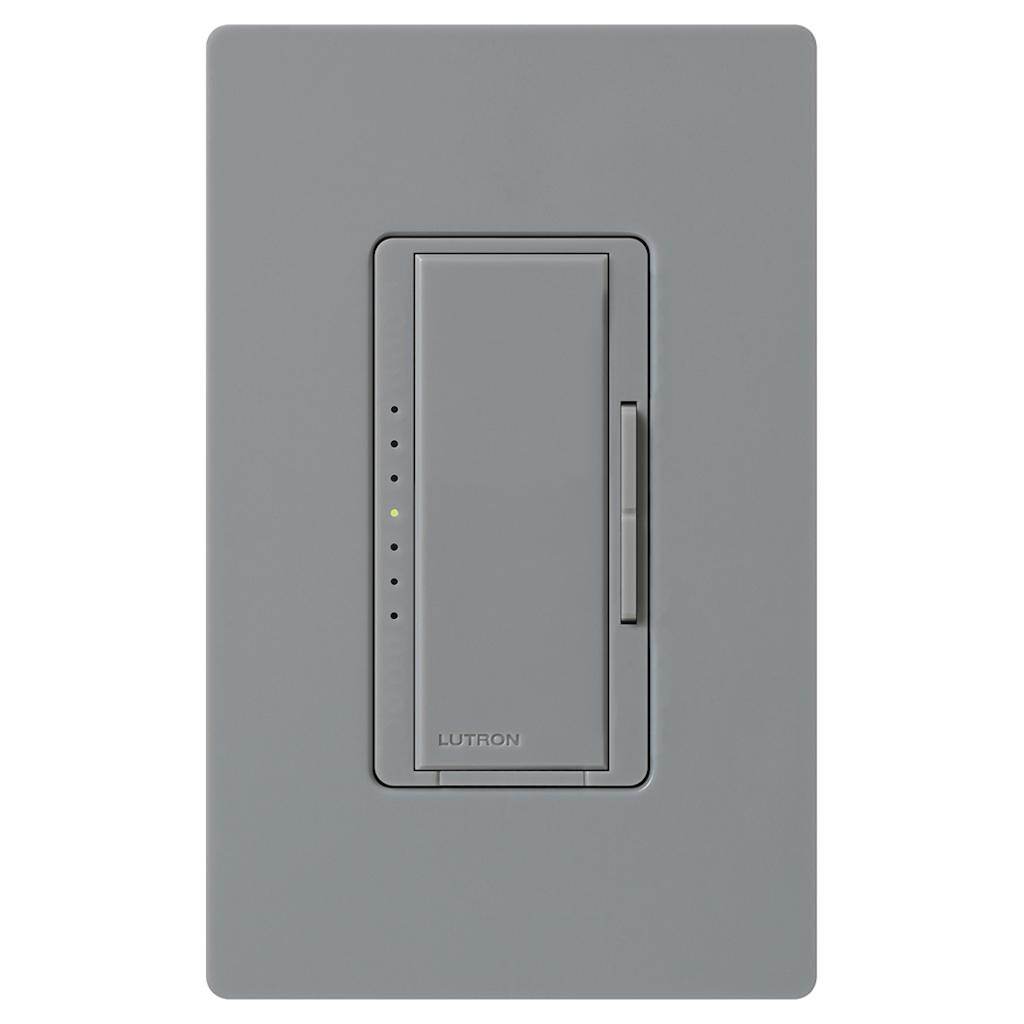

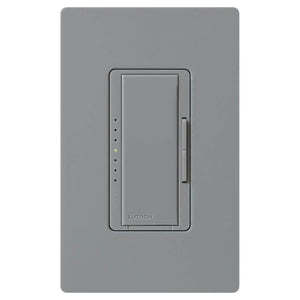

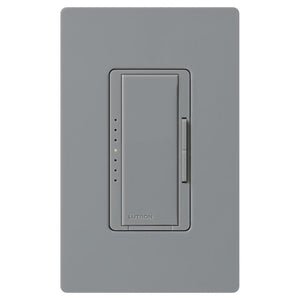

Lutron 120 volt Gray Toggler Single Pole / 3-Way LED / Incandescent Wall Dimmer Switch
120 volt - Gray - Wall Switch - Dimmer - LED / Incandescent Compatible - Single Pole / 3-Way - Toggler - Maestro
MPN#: MACL-153M-GR
Ships in 7 – 10 business days
- Regular price
- $35.89
- Sale price
- $35.89
- Regular price
-
$35.89
Shipping calculated at checkout.
Product Note
This product does not include the backplate as pictured.
