About
Specs
SKULX00898
ManufacturerLutron
Manufacturer Part #SCL-153P-BL
Manufacturer DescriptionSCL-153P-BL SKYLARK CFL/LED DIMMER BLACK BOXED
UPC Code784276008983
Case Size12
Color FinishBlack
Length4.7
Width2.9
Additional SpecsLED/CFL Maximum Wattage, 150 wattsIncandescent/Halogen Maximum Wattage, 600 wattsMinimum Load, 10 watts incandescent/halogenBulb Compatibility, LED CFL Incandescent Halogen
FeaturesOn / off switch, Slide dimmer, Works with most LED CFL incandescent and halogen bulbs, Check Lutron's LED compatibility tool for specific bulb compatibility@Troubleshooting, Problem: CFLs or LEDs do not dim have a poor dimming range or they flicker/flash, Check that two dimmers aren't being used in a 3-way application, Make sure the bulbs in use are marked as dimmable, Adjust the low-end trim dial, Bulb in use may not be compatible with this dimmer. Check Lutron's Compatibility Tool, If the bulb you are using flickers drops out or stops dimming when you reach a certain level you have reached the low end level of the bulb's dimming range, CFLs and LEDs have electrical components inside them that can make noise when the bulbs are on. The noise is not anything to worry about but if the noise is bothersome the best solution is to try a different bulb, The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control one side will only turn on if the other is in the on position.
ApplicationsUse one dimmer in a 3-way application. In the other location use a standard mechanical switch such as model CA-3PS, Can be used in a 4-way application, In this type of application three switches control the lights (two of those switches are 3-ways middle switch is a 4-way). Dimmer will need to be installed in one of the two 3-way locations and you'll need to keep switches in the other 3-way and in the 4-way location
Files
Installation Instructions
0301882.pdf
Compliance List
Dimmer Application 519
Single Pole Wiring Diagram
3-Way Wiring Diagram
Brochure
Dimmer Application 3
Lutron
PART NUMBER: LX00898

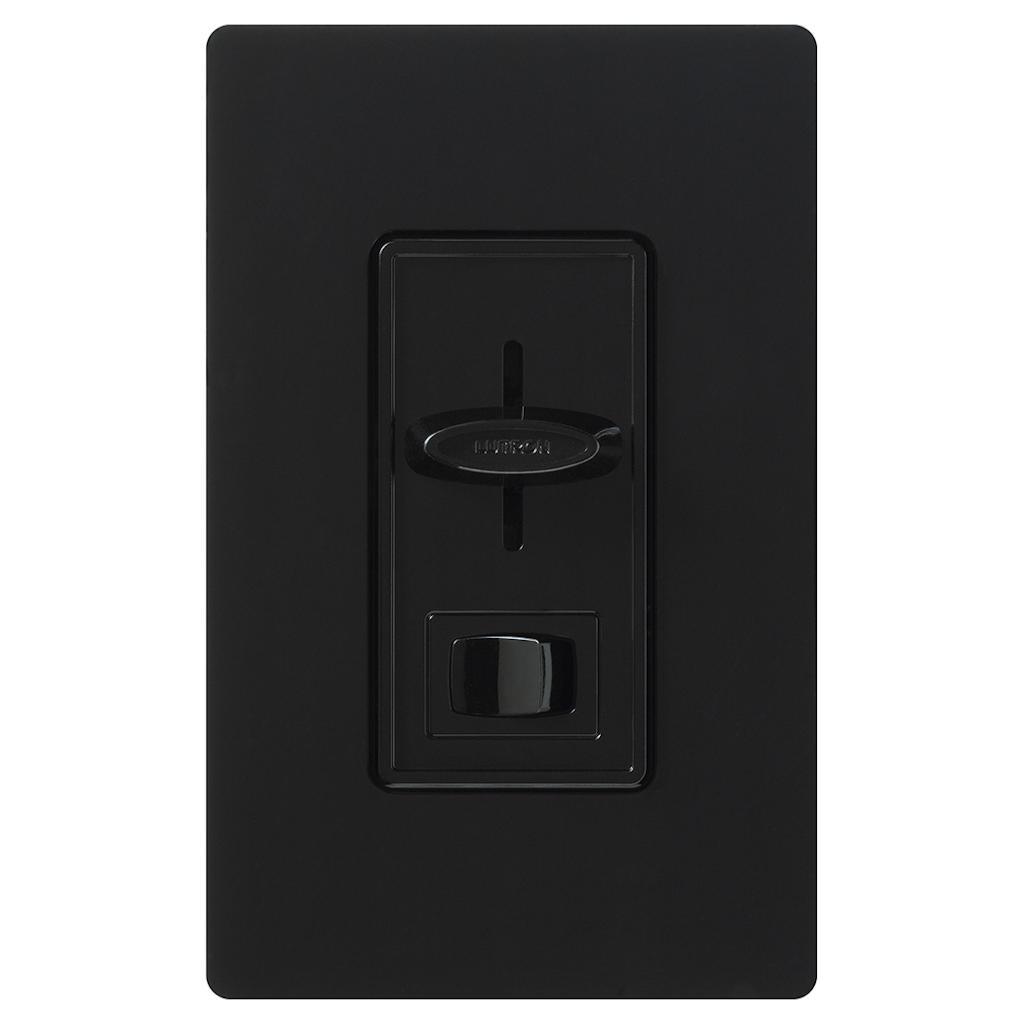

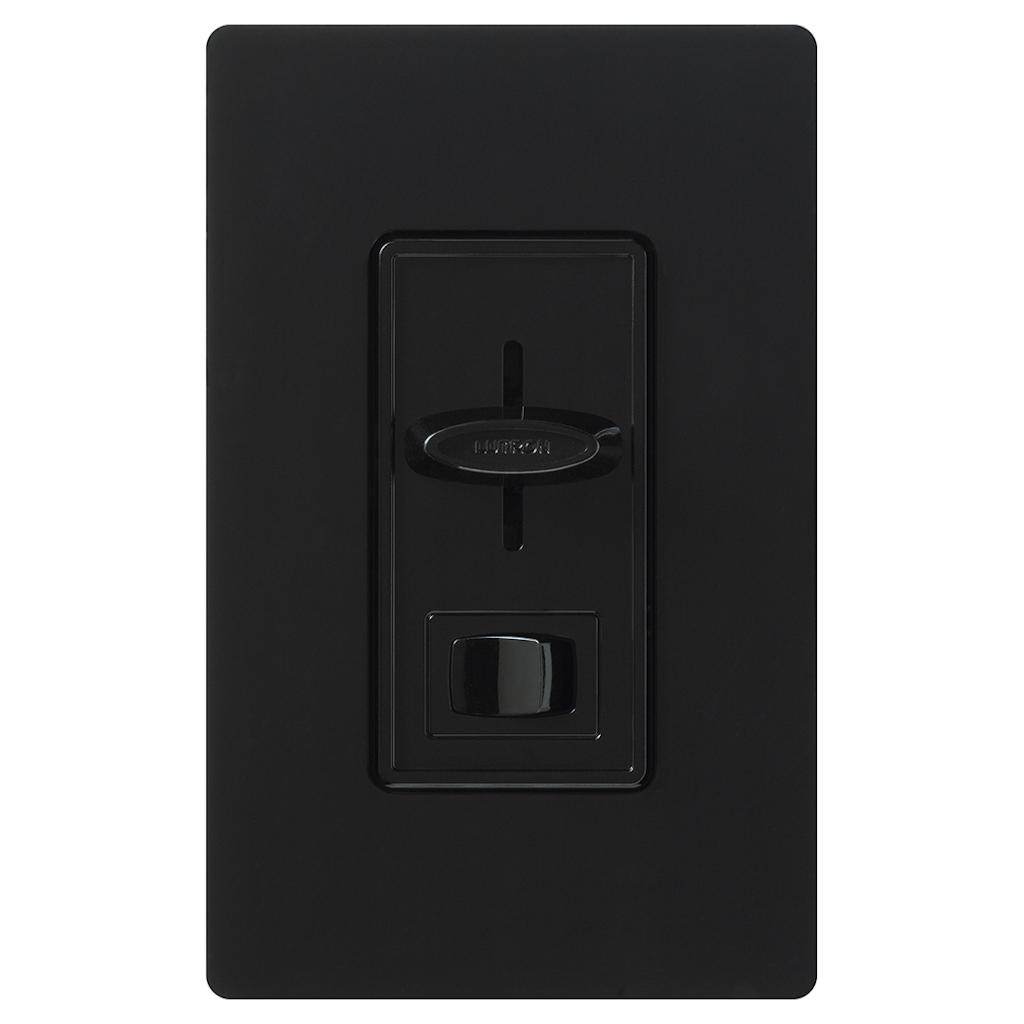

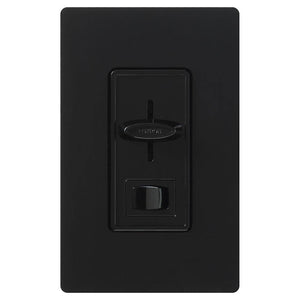

Lutron 120 volt Black Single Pole / 3-Way LED / Incandescent Wall Dimmer Switch
120 volt - Black - Wall Switch - Dimmer - LED / Incandescent Compatible - Single Pole / 3-Way - Skylark
MPN#: SCL-153P-BL
Ships within 1 – 2 business days
- Regular price
- $24.49
- Sale price
- $24.49
- Regular price
-
$24.49
Shipping calculated at checkout.
Product Note
This product does not include the wall plate as pictured.
