About
Specs
SKULU00357
ManufacturerLutron
Manufacturer Part #CTCL-153PH-IV
Manufacturer DescriptionCTCL-153PH-IV CONTOUR CFL/LED CLAM IVORY
UPC Code027557003575
Case Size12
Color FinishIvory
Additional SpecsLED/CFL Maximum Wattage, 150 wattsIncandescent/Halogen Maximum Wattage, 600 wattsMinimum Load, 10 watts incandescent/halogenBulb Compatibility, LED CFL Incandescent Halogen
FeaturesOn / off switch, Slide dimmer, Only 1 dimmer can be used in a 3-way application, Works with most LED CFL incandescent and halogen bulbs, Check Lutron's LED compatibility tool for specific bulb compatibility@Troubleshooting, Problem: CFLs or LEDs do not dim have a poor dimming range or they flicker/flash, Check that 2 dimmers aren't being used in a 3-way application, Make sure the bulbs in use are marked as dimmable, Adjust the low-end trim dial, Bulb in use may not be compatible with this dimmer. Check Lutron's Compatibility Tool, If the bulb you are using flickers drops out or stops dimming when you reach a certain level you have reached the low end level of the bulb's dimming range, Problem: Bulbs or dimmer buzzes, CFLs and LEDs have electrical components inside them that can make noise when the bulbs are on. The noise is not anything to worry about but if the noise is bothersome the best solution is to try a different bulb, Problem: One location will not turn on if the other location is turned off, The common and traveler wires are switched at one of the locations. Consult the installation guide and wiring diagram for wiring guidelines in a 3-way setup. The common wire will be identified as the "tagged" wire. This wire either brings line voltage into the wallbox or delivers voltage to your lights. Traveler wires go between 2 wallboxes and typically "travel" together in the wall. If the common and traveler wire are switched on the control one side will only turn on if the other is in the on position.
ApplicationsCan be used in a 4-way application, In this type of application 3 switches control the lights (2 of those switches are 3-ways middle switch is a 4-way), Dimmer will need to be installed in one of the two 3-way locations and you'll need to keep switches in the other 3-way and in the 4-way location
Files
Installation Instructions
0301882.pdf
Dimmer Application 519
Single Pole Wiring Diagram
3-Way Wiring Diagram
Dimmer Application 3
Lutron
PART NUMBER: LU00357

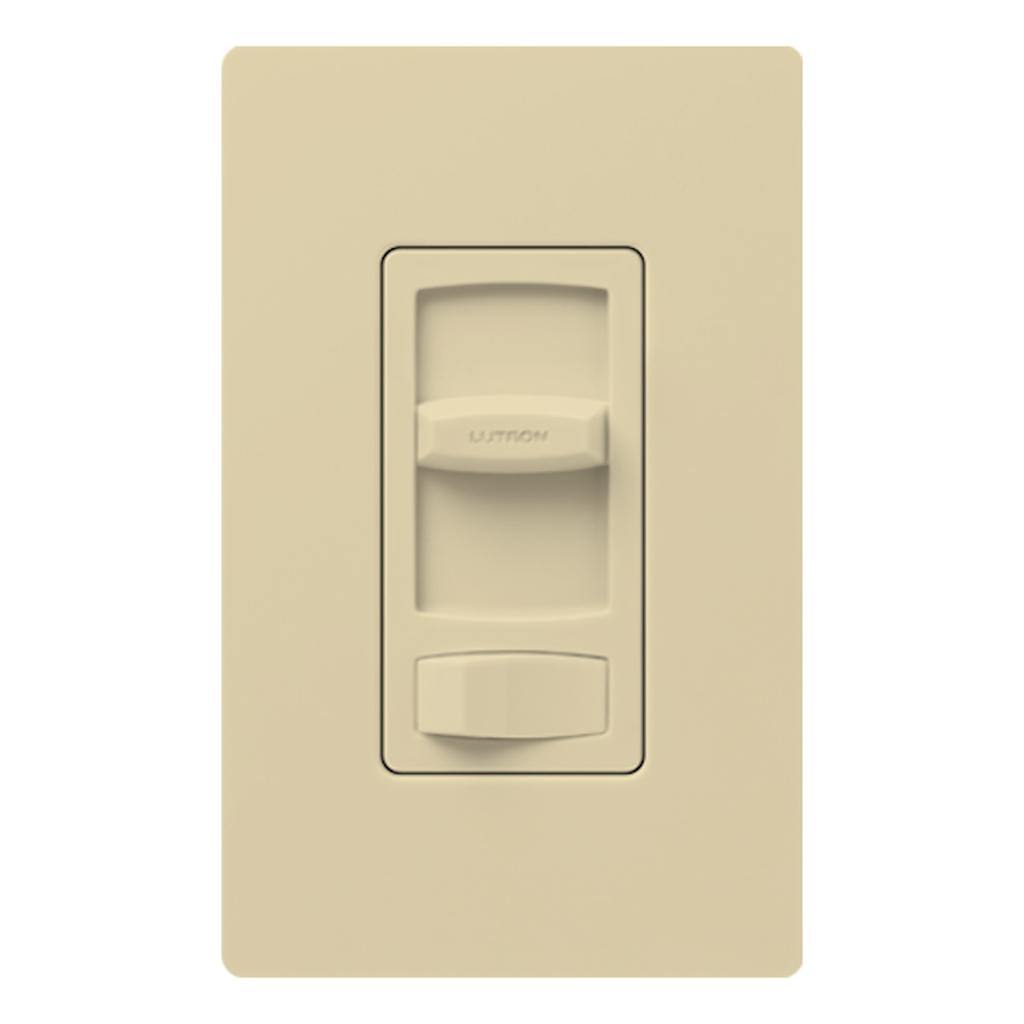

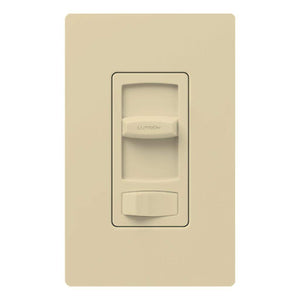

Lutron 120 volt Ivory Rocker Single Pole / 3-Way LED / Incandescent Wall Dimmer Switch
120 volt - Ivory - Wall Switch - Dimmer - LED / Incandescent Compatible - Single Pole / 3-Way - Rocker - Skylark Contour®
MPN#: CTCL-153PH-IV
Ships in 7 – 10 business days
- Regular price
- $27.99
- Sale price
- $27.99
- Regular price
-
$27.99
Shipping calculated at checkout.
Product Note
This product does not include the backplate as pictured.
