About
Specs
SKUTK00004
ManufacturerLeotek
Manufacturer DescriptionES1-48H-MV-NW-FT-DB-530-PC
UPC Code849818000044
Case Size1

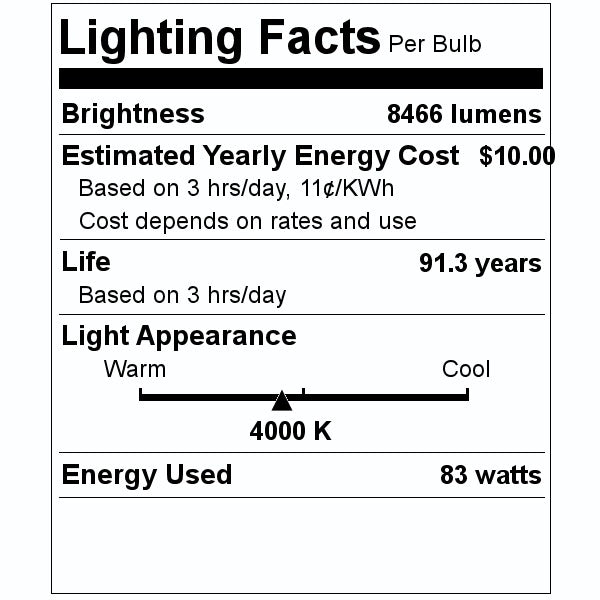

Lumens8466
Watts83
Volts120/277
Color Temp4000
Color FinishBronze
CRI70
Life100000
Length16.8
Height5.4
Weight9.9
Width12.1
Additional SpecsDistribution, Forward ThrowDrive Current, 530mAEfficacy, 102 Lm/W
Features48 LEDs, Mercury and lead free, OMNILens™ system creates a low brightness source to reduce glare, Lens cover is UV stabilized vandal-resistant polycarbonate, Integral surge protector is tested per ANSI / IEEE C62.45 procedures based on ANSI / IEEE C62.41.2 definitions for standard and optional waveforms for Location Category C High@Housing, Die cast aluminum housing with back mounting plate and outdoor-rated cable, Housing coated in fade and abrasion-resistant epoxy polyester powder coat, Finish tested to withstand 5000 hours in salt spray exposure (per ASTMB117) 5000 hours in UV exposure (per ASTM G154) and meets ASTM D523 gloss retention, Novel hanging features on back mounting plate allow 1-person installation, Knockouts on top and bottom of housing allow conduit entry, Electrical components are accessed behind gasketed optical cover
ApplicationsUL listed for use in wet locations, Operating temperature -40°F (-40°C) to 104°F (40°C), Area lighting for outdoor wall-mounts
Warranty text
Files
Spec Sheet
es-1-spec-sheet.pdf
Eseta Brochure
Leotek
PART NUMBER: TK00004

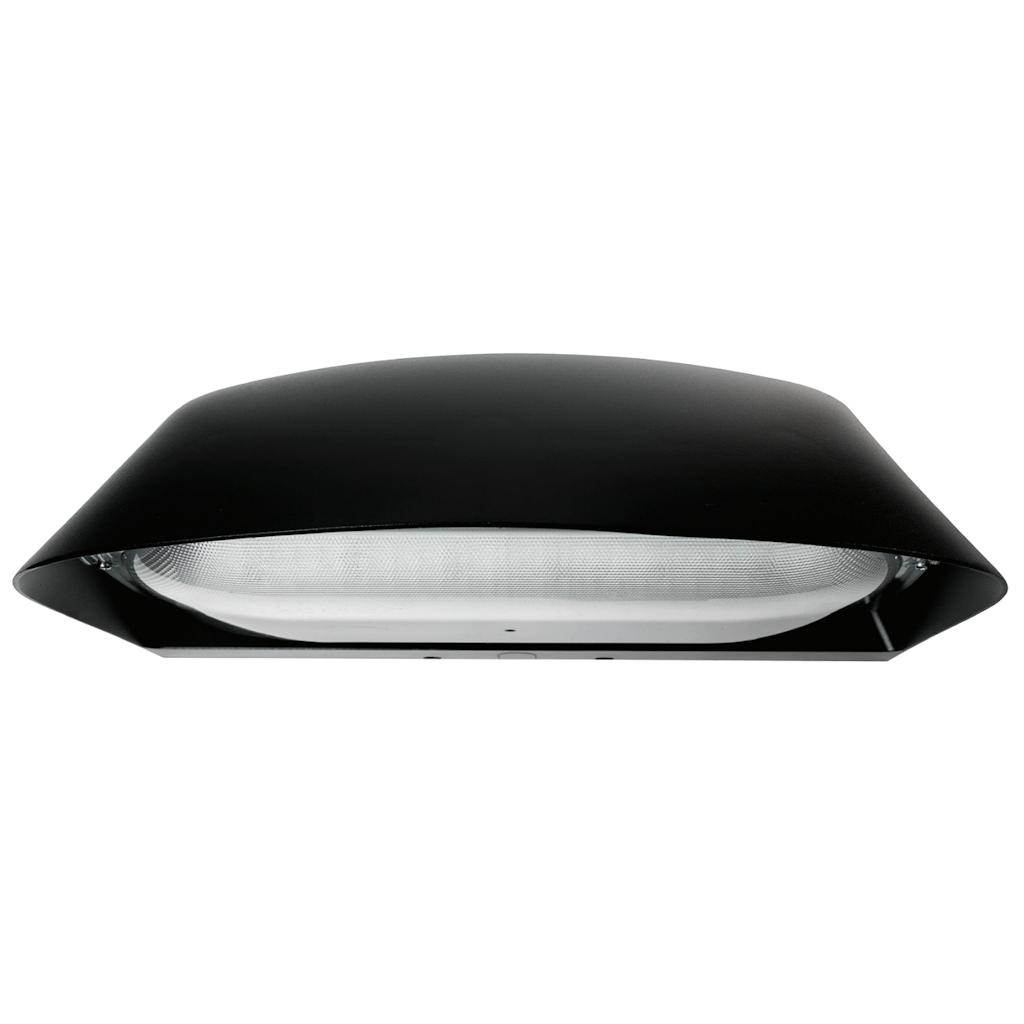

Leotek 83 watt 120/277 volt 4000K Dark Bronze LED Outdoor Wall Sconce with Photo Control
83 watt - 120/277 volt - 4,000K - Cool White - Dark Bronze - Photo Control - Architectural - OMNILens™ - Eseta™
MPN#:
Ships in 7 – 10 business days
- Regular price
- $670.99
- Sale price
- $670.99
- Regular price
-
$670.99
Shipping calculated at checkout.
