About

Specs
SKUKT13682
ManufacturerKeystone
Manufacturer DescriptionKT-HBLED80-1.5F-840-VDIM-P /G2
UPC Code843654136820
Case Size1

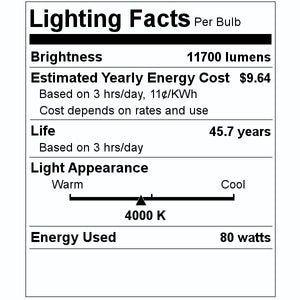

Lumens11700
Watts80
Volts120/277
Color Temp4000
Color FinishWhite
CRI80
Life50000
Length17.3
Height2.4
Weight5
Width15
Additional SpecsEfficacy, 150 LpWPower Factor, >0.90
FeaturesArchitectural grade compact design, Designed to accept easy screw-in installation of optional sensors via 1/2" threaded receptacle in driver cover, Compatible with Keystone SmartSafe emergency LED drivers (see accessories section for details), Powered by Keystone 0–10V dimming LED drivers with 12V Aux, Frosted lens eliminates glares, V-hook and chain mounting accessories included, UL Listed 1598, Ambient operating temperature: -20ºC/-4ºF to 50ºC/122ºF, THD: <20%
ApplicationsSuitable for dry and damp locations, Commercial, Industrial
Warranty text

~5 Year

Files
Spec Sheet

KT-HBLED80-1_5F-8XX-VDIM-P-G2.pdf

Keystone logo Keystone

PART NUMBER: KT13682

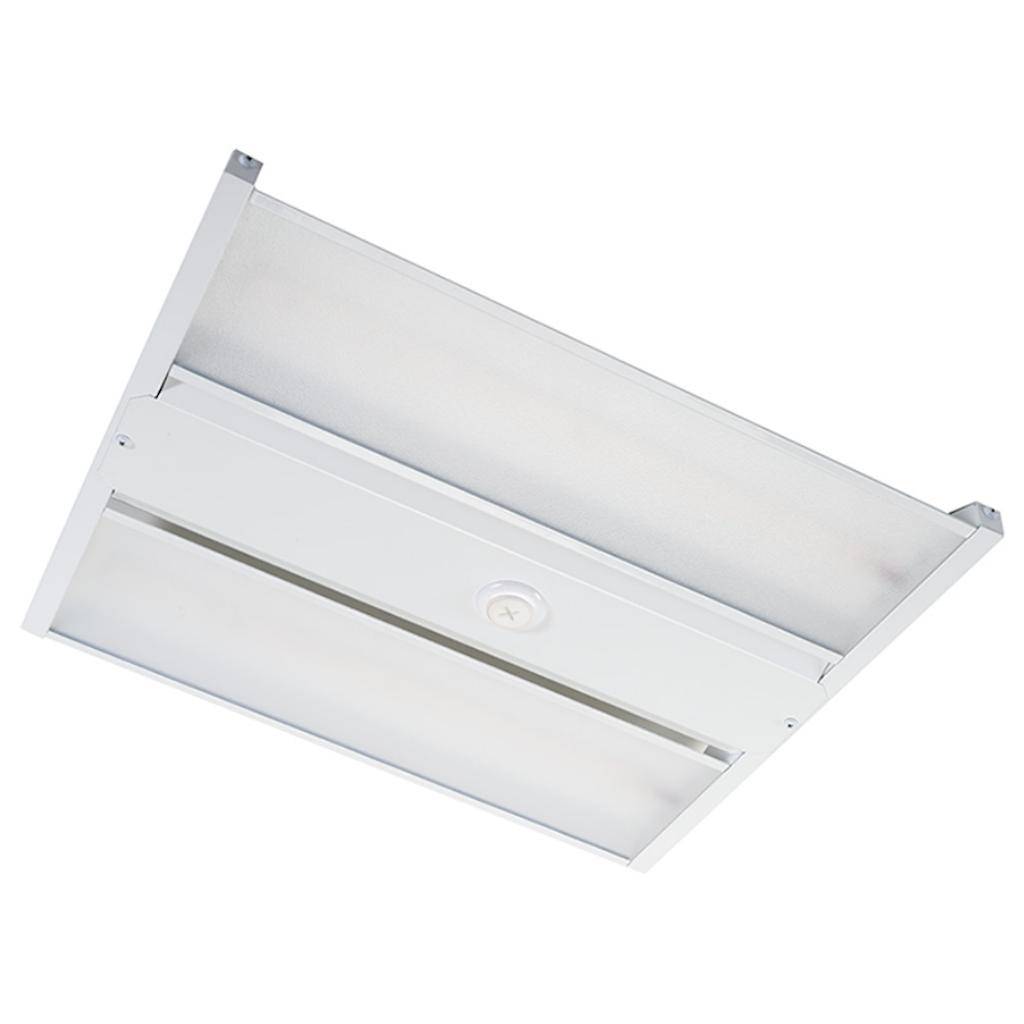

Keystone 1.25' X 1.5' 80 watt 120/277 volt 4000K Cool White Dimmable LED High Bay

1.25' X 1.5' - 80 watt - 120/277 volt - 4,000K - Cool White - White - XFit - Generation 2 - Dimmable

MPN#:

Ships in 7 – 10 business days

$112.59
$112.59
$112.59
Shipping calculated at checkout.

Works with
