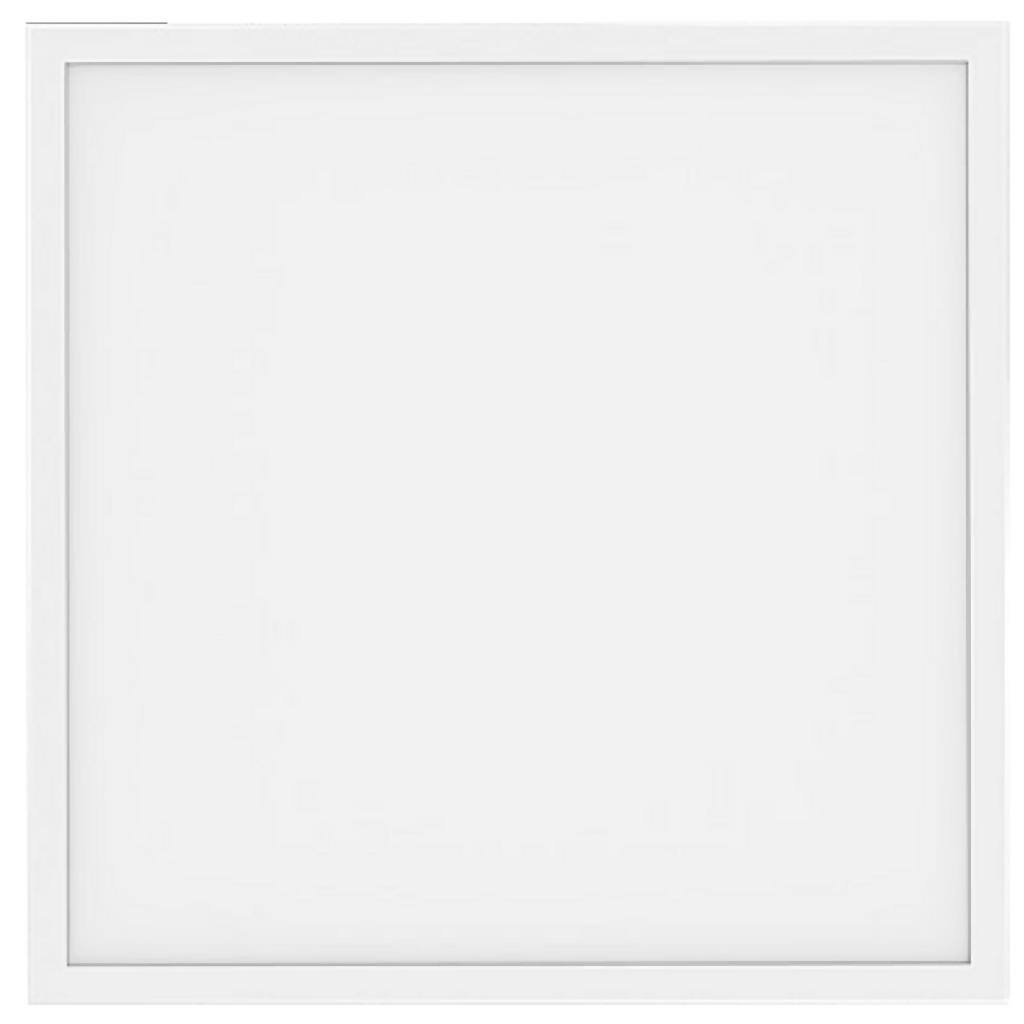

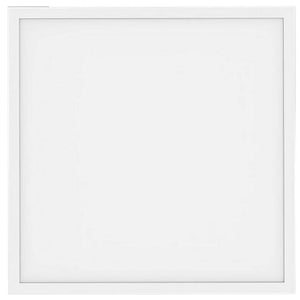

2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1

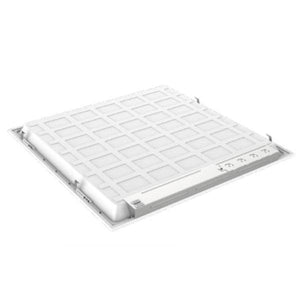

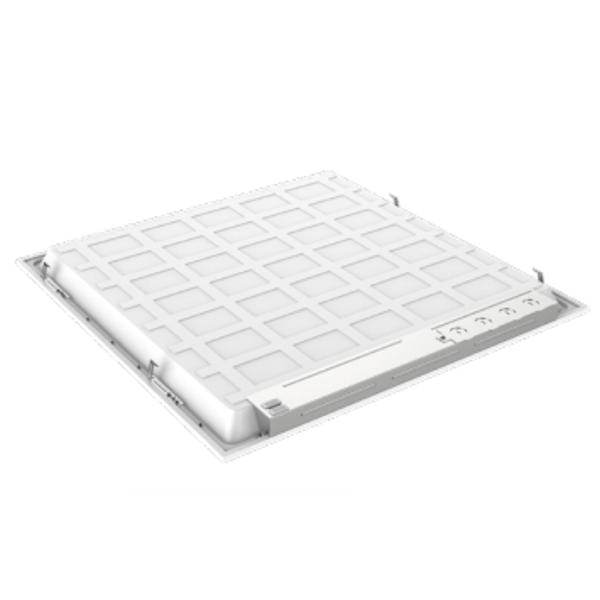

2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2
    2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1
    2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2
    2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1
    2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 1
2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel 2

About

Specs
SKUKT13339
ManufacturerKeystone
Manufacturer Part #13339
Manufacturer DescriptionKT-BPLED40PS-22-8CSA-VDIM /G2
UPC Code843654133393
Case Size2
Size2' x 2'
LumensSelectable
WattsSelectable
Volts120/277
Color TempSelectable
Color FinishWhite
CRI80
Life50000
Length23.8
Height1.4
Width23.8
Additional SpecsEfficacy, 110-125 LpWLumens, 2400-4500
FeaturesAluminum frame featuring stepped edge design detail and gloss white paint for improved aesthetics, New backlit style design; fits standard T-grid ceilings, Powered by Keystone 0-10V dimmable LED driver with built-in junction box, Compatible with Keystone SmartSafe LED emergency backup
ApplicationsSuitable for damp locations
Warranty text

~5 Year

Files
Spec Sheet

KT-BPLED40PS-22-8CSA-VDIM_G2_20_1.pdf

Keystone logo Keystone

PART NUMBER: KT13339

Keystone 2' x 2' 20/30/40 watt 120/277 volt CCT Selectable Dimmable LED Backlit Panel

2' x 2' - 20/30/40 watt - 120/277 volt - 3,500K/4,000K/5,000K - CCT Selectable - White - Power Selectable - XFit - Generation 2 - Dimmable

MPN#: 13339

Ships within 1 – 2 business days

$80.59
$80.59
$80.59
Shipping calculated at checkout.

Works with
approved dimmers
