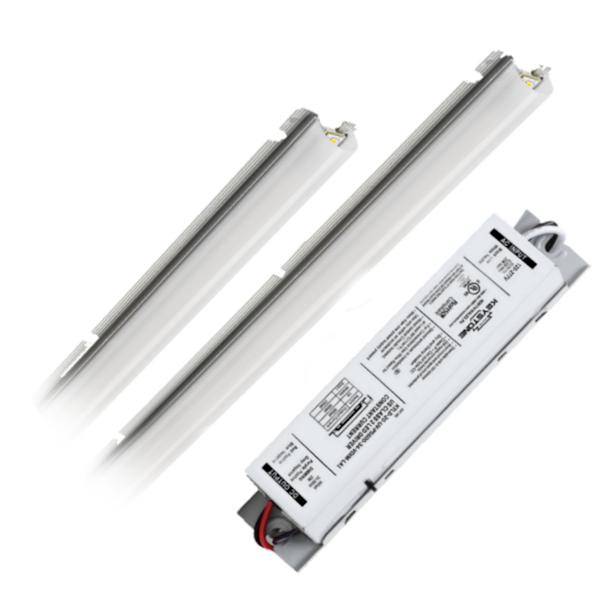

1' 11/16/20 watt 120/277 volt 5000K Daylight Dimmable LED Retrofit Troffer 1
1' 11/16/20 watt 120/277 volt 5000K Daylight Dimmable LED Retrofit Troffer 1
    1' 11/16/20 watt 120/277 volt 5000K Daylight Dimmable LED Retrofit Troffer 1
1' 11/16/20 watt 120/277 volt 5000K Daylight Dimmable LED Retrofit Troffer 1

About

Specs
SKUKT12822
ManufacturerKeystone
Manufacturer Part #12822
Manufacturer DescriptionKT-RKIT20PS-2AG11-850-VDIM
UPC Code843654128221
Case Size20
Size1'
LumensSelectable
WattsSelectable
Volts120/277
Color Temp5000
Color FinishDaylight
CRI80
Life54000
Beam Angle120
Length11
Height0.7
Width1.3
Additional SpecsLumens, 1642/2413/2837Efficacy, 155/148/143 LpW
FeaturesHigh lumen density design, Completely heatsinked no additional heat sinking needed to maintain LED lifetime, Low profile WAGO push connectors located on the bottom of modules to eliminate dark spots on end-to-end connections, 0-10V Dimming, (1) Power-Selectable LED Driver, (2) 11" Alumagroove LED Modules, (2) Lenses, (2) Lenses Mounting Accessories(Jumper Wires Tek Screws Power Quick-Disconnect)
ApplicationsFor use in Class 2 lighting systems, Suitable for use in troffers wraps strips vapor tights and other indoor fixture types.
Warranty text

~10 Years

Files
Spec Sheet

KT-RKIT20PS-2AG11-8XX-VDIM.pdf

Keystone logo Keystone

PART NUMBER: KT12822

Keystone 1' 11/16/20 watt 120/277 volt 5000K Daylight Dimmable LED Retrofit Troffer

1' - 11/16/20 watt - 120/277 volt - 5,000K - Daylight - Future Fit Series - Dimmable

MPN#: 12822

Ships in 7 – 10 business days

$69.19
$69.19
$69.19
Shipping calculated at checkout.

Works with
approved dimmers
