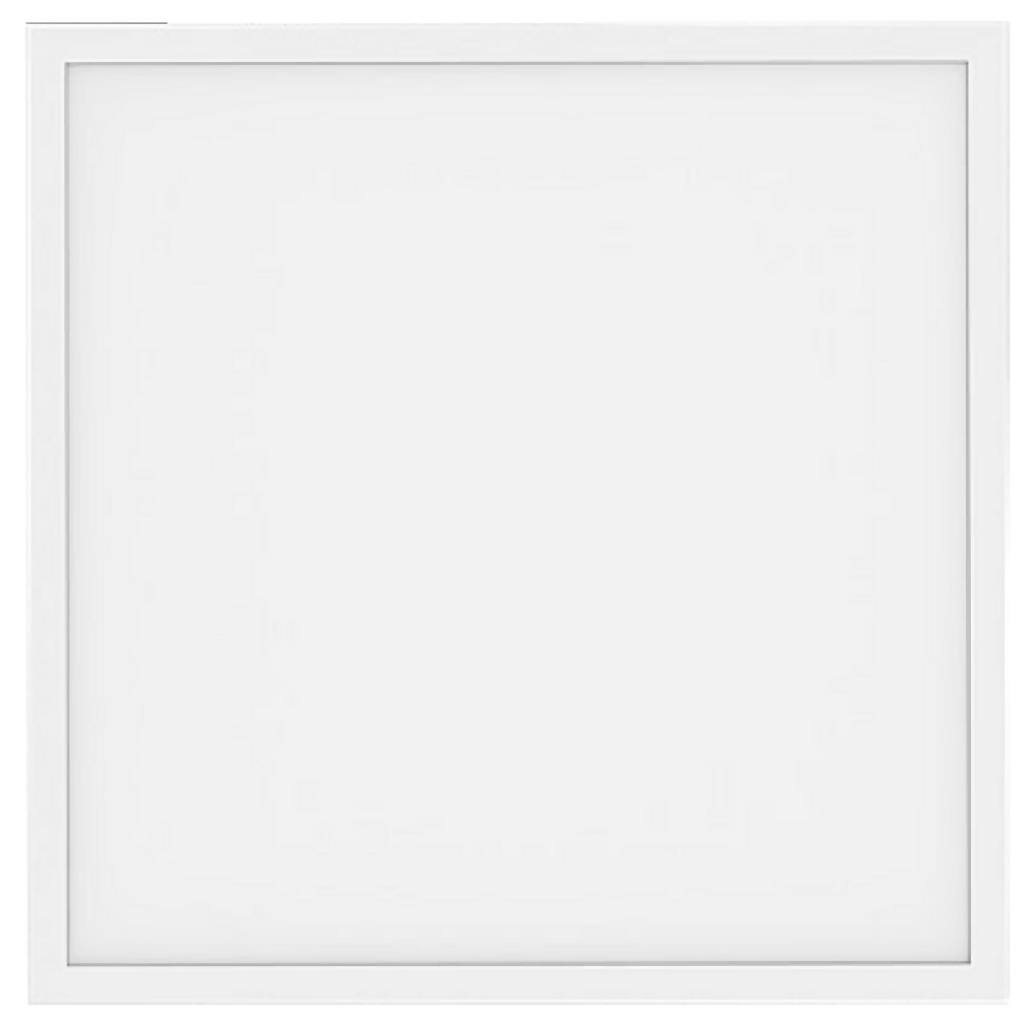

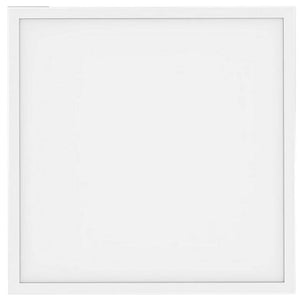

2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2

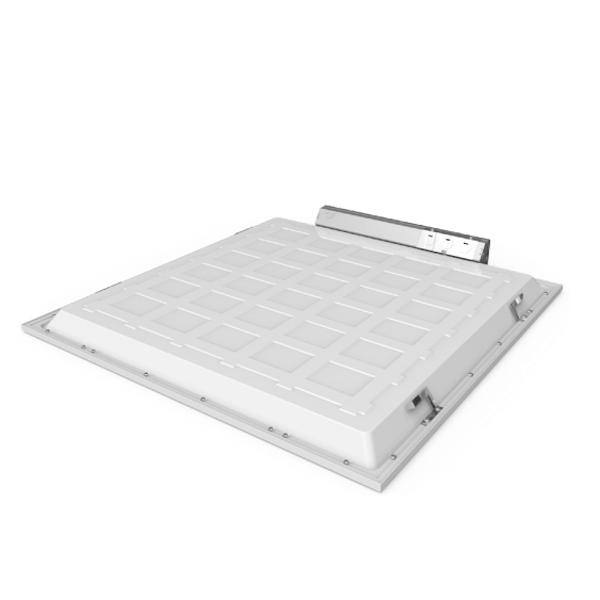

2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2
    2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 1
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 2
2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel 3

About

Specs
SKUKT12794
ManufacturerKeystone
Manufacturer Part #KT-BPLED30-22-850-VDIM-P
Manufacturer DescriptionKT-BPLED30-22-850-VDIM-P
UPC Code843654127941
Case Size2
Size2' x 2'

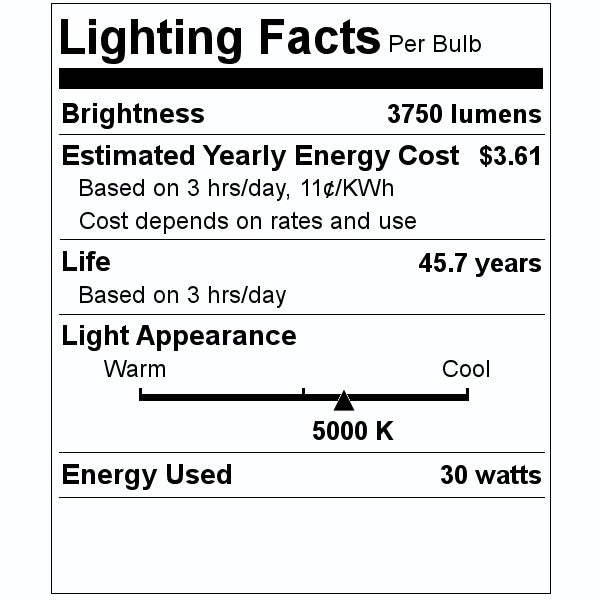

Lumens3750
Watts30
Volts120/277
Color Temp5000
Color FinishWhite
CRI80
Life50000
Length23.8
Height2.44
Width23.8
Additional SpecsEfficacy, 125 LpW
FeaturesAluminum frame featuring stepped edge design detail and gloss white paint for improved aesthetics, New backlit style design; fits standard T-grid ceilings, Suitable for recessed or surface mount (with optional accessories)*, Powered by Keystone 0-10V dimmable LED driver with built-in junction box, Compatible with Keystone SmartSafe LED emergency backup, Over 50% energy savings compared to traditional fluorescent troffers, Operating temp range -20ºC/-4ºF to 40ºC/104ºF
ApplicationsSuitable for damp locations, Conference rooms, Retail, Offices, Hospitality, Healthcare, Schools, Reception areas, Corridors, Foyer
Warranty text

~5 Year

Files
Spec Sheet

KT-BPLED30-22-8XX-VDIM-P_20_1.pdf

Keystone logo Keystone

PART NUMBER: KT12794

Keystone 2' x 2' 30 watt 120/277 volt 5000K Daylight Dimmable LED Backlit Panel

2' x 2' - 30 watt - 120/277 volt - 5,000K - Daylight - Dimmable

MPN#: KT-BPLED30-22-850-VDIM-P

Ships in 7 – 10 business days

$92.59
$92.59
$92.59
