SKUKT11017
ManufacturerKeystone
Manufacturer Part #KT-LED7T8-30P1S-840-D
Manufacturer DescriptionKT-LED7T8-30P1S-840-D
UPC Code843654110172
Case Size9
Power InputBallast Bypass / Direct Wire
Lumens800
Watts7
Volts120/277
Color Temp4000
Color FinishCool White
CRI80
Life50000
Bulb TypeT8
Base TypeRecessed Double Contact (R17d)
Beam Angle180
Length30
Width1.1
Additional SpecsLpW, 114
FeaturesInstalls using existing sockets in the sign; all necessary wiring can be done within ballast raceway, Optical lens over individual LEDs for optimal light spread within the sign, Rotatable end caps, No external driver or power supply needed, Optimized spacing 6” from the face and 12” on center, Operating temperature is -20ºC/-22ºF to 55ºC/131ºF
ApplicationsOutdoor signage, Ideal for single-sided signs
Warranty text
Files
Spec Sheet
Keystone_2011017_20Specs.pdf
Keystone
PART NUMBER: KT11017

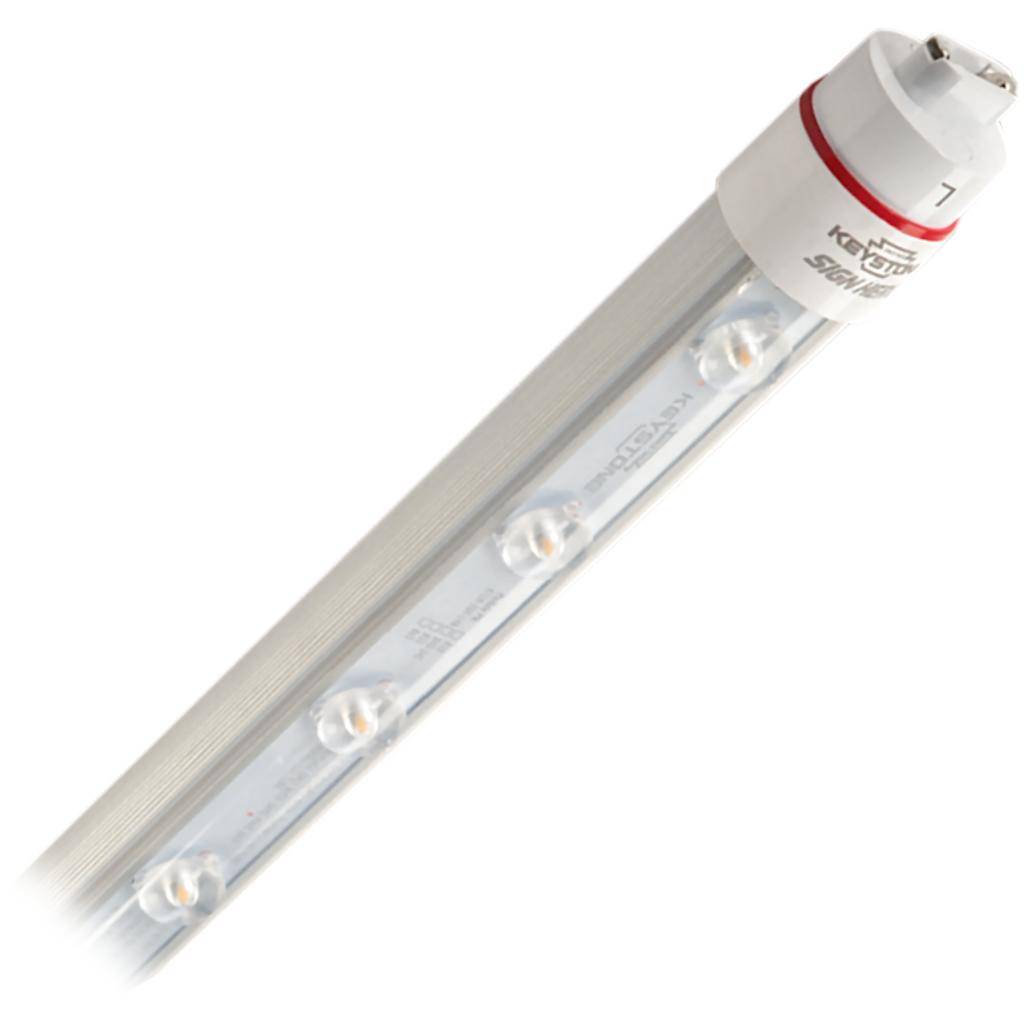

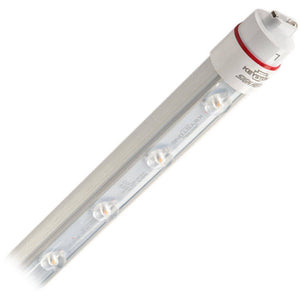

Keystone T8 30" 800 Lumens 4000K Ballast Bypass LED Tube
7 watt - 120/277 volt - 30" - T8 - Recessed Double Contact (R17d) Base - 4,000K - Cool White - Ballast Bypass - Sign Hero 180 - Non-Dimmable
MPN#: KT-LED7T8-30P1S-840-D
Ships in 7 – 10 business days
- Regular price
- $24.99
- Sale price
- $24.99
- Regular price
-
$24.99
Shipping calculated at checkout.
