SKUKT11015
ManufacturerKeystone
Manufacturer Part #KT-LED5T8-24P1S-865-D
Manufacturer DescriptionKT-LED5T8-24P1S-865-D
UPC Code843654110158
Case Size9
Power InputBallast Bypass / Direct Wire
Lumens600
Watts5
Volts120/277
Color Temp6500
Color FinishDaylight
CRI80
Life50000
Bulb TypeT8
Base TypeRecessed Double Contact (R17d)
Beam Angle180
Length24
Width1.1
Additional SpecsLpW, 120
FeaturesInstalls using existing sockets in the sign; all necessary wiring can be done within ballast raceway, Optical lens over individual LEDs for optimal light spread within the sign, Rotatable end caps, No external driver or power supply needed, Optimized spacing 6” from the face and 12” on center, Operating temperature is -20ºC/-22ºF to 55ºC/131ºF
ApplicationsOutdoor signage, Ideal for single-sided signs
Warranty text
Files
Spec Sheet
Keystone_2011014_20Specs.pdf
Keystone
PART NUMBER: KT11015

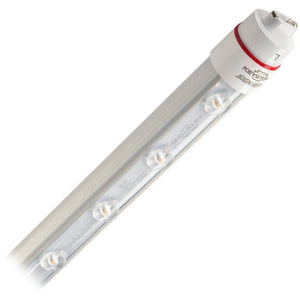

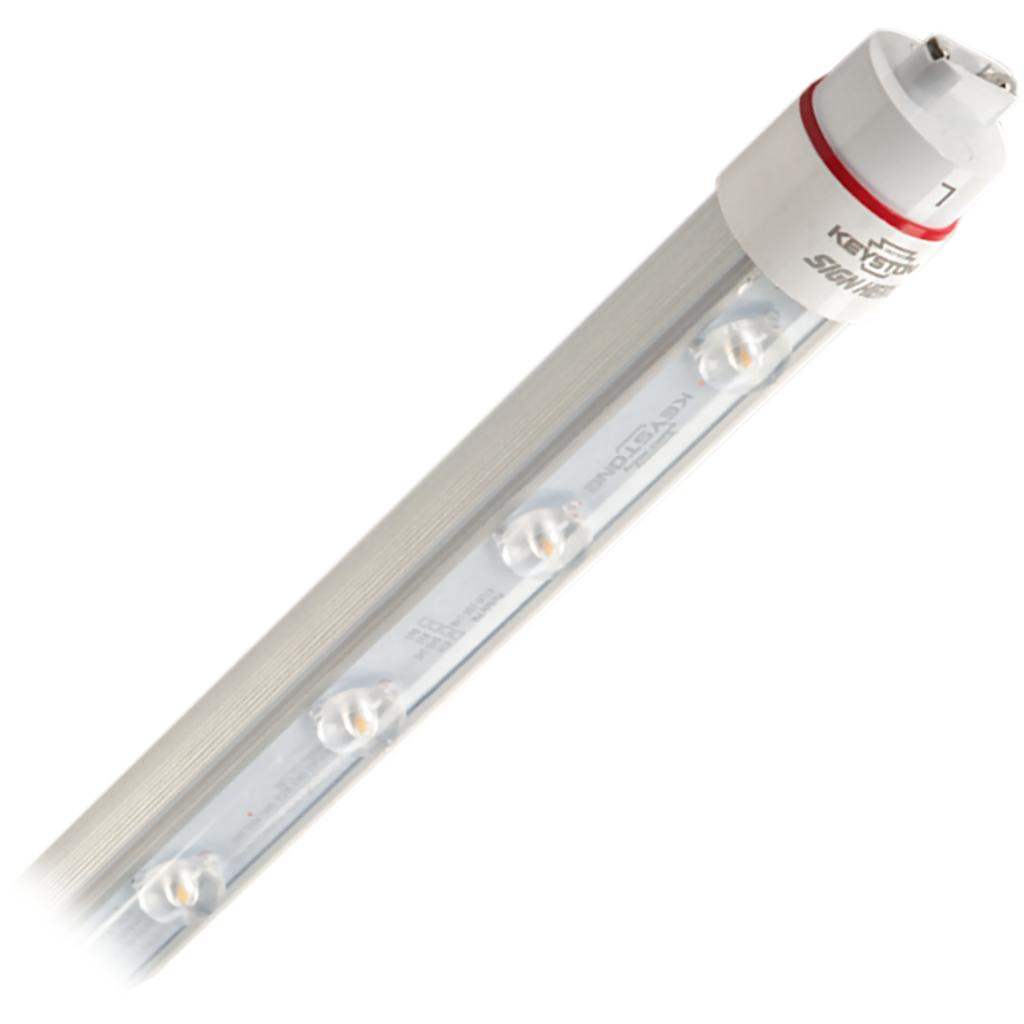

Keystone T8 24" 600 Lumens 6500K Ballast Bypass LED Tube
5 watt - 24" - 120/277 volt - T8 - Recessed Double Contact (R17d) Base - 6,500K - Daylight - Ballast Bypass - Sign Hero 180
MPN#: KT-LED5T8-24P1S-865-D
Ships in 7 – 10 business days
- Regular price
- $19.99
- Sale price
- $19.99
- Regular price
-
$19.99
Shipping calculated at checkout.
