About

Specs
SKUKT01252
ManufacturerKeystone
Manufacturer Part #KT-LED18T8-U6GC-840-D
Manufacturer DescriptionKT-LED18T8-U6GC-840-D
UPC Code890949012529
Case Size12
Power InputBallast Bypass / Direct Wire
Lumens2150
Watts18
Volts120/277
Color Temp4000
Color FinishCool White
CRI83
Life50000
Bulb TypeT8
Base TypeMedium Bi-Pin (G13)
Beam Angle220
Length22.3
Width1.6
Additional SpecsEfficacy, 119 Lm/W
FeaturesDirect-Drive series, Shatterproof coated glass, Use with only non-shunted lampholders, 6" space between each tube, Mercury free, Integral driver (isolated) eliminates need for an external ballast or driver, Instant startup, Frosted lens eliminates pixelation
Warranty text

~5 Year

Files
Spec Sheet

KT-LED18T8-U6GC-840-D.pdf

Keystone logo Keystone

PART NUMBER: KT01252

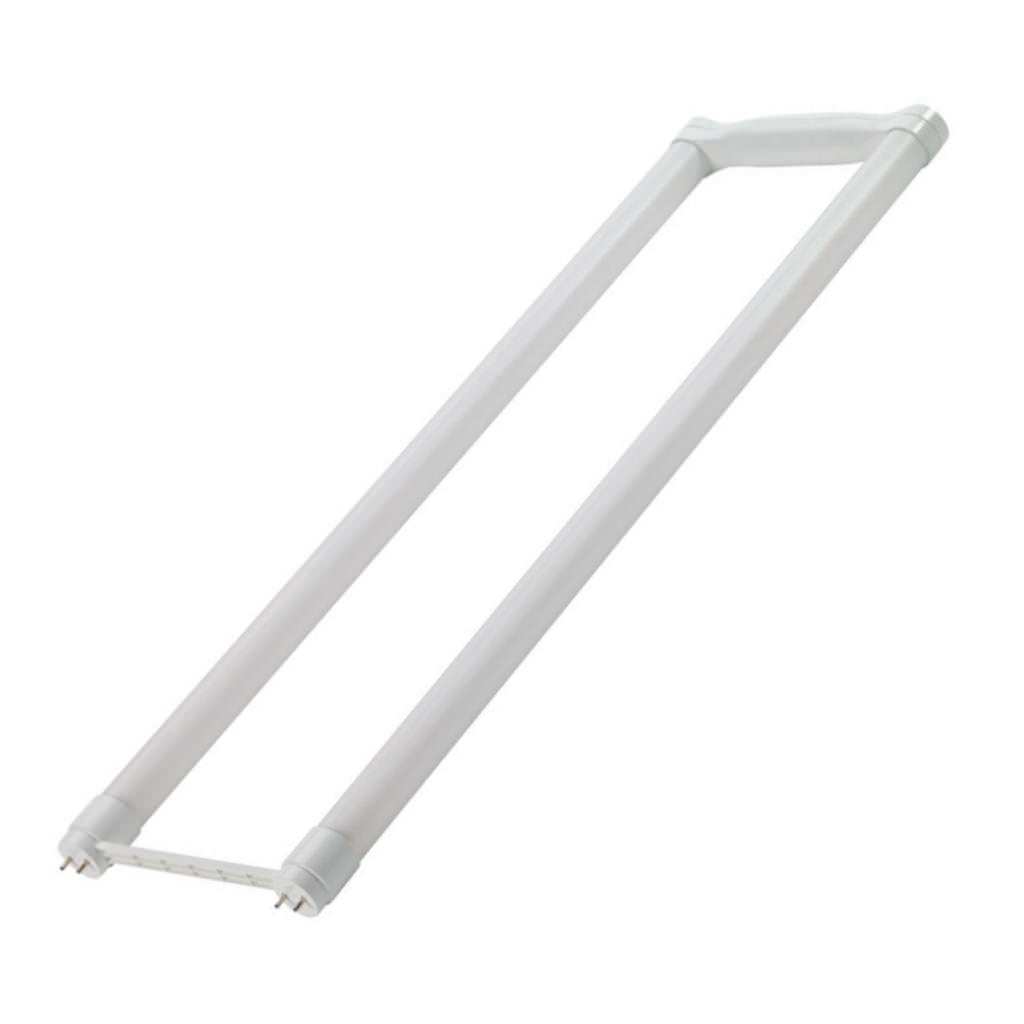

Keystone T8 22.3" 2150 Lumens 4000K Ballast Bypass LED Tube

18 watt - 120/277 volt - 22" - T8US - Medium Bi-Pin (G13) Base - 4,000K - Cool White - Frosted - Glass - Ballast Bypass - U-Bent

MPN#: KT-LED18T8-U6GC-840-D

Ships within 1 – 2 business days

$20.99
$20.99
$20.99
Shipping calculated at checkout.

Check Out These Related Products

  • 5 stars: 6 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
T
Timothy N.
18 watt 120/277 volt 22" T8US Medium Bi-Pin Base 4000K Cool White U-Bent LED

Very happy that I converted to LED. Rewiring was not complicated... If you're familiar with the terms "hot" and "neutral", you can do it.

As for the bulbs, they're great. Very bright, great quality light for the kitchen. Even though there's no u-bend, it's sized so the support clip still holds the floating end.

These are not quite instant-on. The fluorescent bulbs they replaced came on immediately, but there's about 1/8 or 1/16 second delay with these.

T
Timothy N.
Very happy that I converted to LED. Rewiring was not complicated... If you're familiar with the t...

Very happy that I converted to LED. Rewiring was not complicated... If you're familiar with the terms "hot" and "neutral", you can do it.

As for the bulbs, they're great. Very bright, great quality light for the kitchen. Even though there's no u-bend, it's sized so the support clip still holds the floating end.

These are not quite instant-on. The fluorescent bulbs they replaced came on immediately, but there's about 1/8 or 1/16 second delay with these.

F
Frederick G.K.
18 watt 120/277 volt 22" T8US Medium Bi-Pin Base 4000K Cool White U-Bent LED

Lamps easy to install, use less electricity, we got rid of the old ballasts that were leaking the potting tar and so far, they are working fine.

F
Frederick G.K.
Lamps easy to install, use less electricity, we got rid of the old ballasts that were leaking the...

Lamps easy to install, use less electricity, we got rid of the old ballasts that were leaking the potting tar and so far, they are working fine.

J
Junqing C.
18 watt 120/277 volt 22" T8US Medium Bi-Pin Base 4000K Cool White U-Bent LED

Works great.

J
Junqing C.
Works great.

Works great.
