About
Specs
SKUIN08976
ManufacturerIntermatic
Manufacturer Part #08976
Manufacturer DescriptionET8215C
UPC Code078275089761
Case Size6
Additional SpecsCircuits, 2Switch, SPSTInput Voltage, 120-277 VACResistive Rating, 30 Amps @ 120/240 VACResistive Rating, 20 Amps @ 28 VDCInductive Rating, 30 Amps @ 120/240 VACTungsten Rating, 5 Amps @ 120/240 VACBallast Rating, 20 Amps @ 120-277 VACMotor Rating, 1 HP @ 120 VACMotor Rating, 2 HP @ 240 VACEnclosure, Type 1 steel
FeaturesProgram can be repeated on a weekly basis, Multi-volt operation from 120-277 VAC 50/60 Hz, To-the-minute programming for accurate load control and reduced energy costs, Astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices, Astronomic programming can be combined with independent programs to provide a sunset ON and timed OFF program, 2-circuit models are field (jumper) configurable for: 2 independent outputs DPST output or 1 channel ON pulse OFF pulse output, Up to 14 ON/14 OFF setpoints and 4 astronomic events, Dusk/Dawn Astronomic events can be distributed throughout the days of the week, Automatic Daylight Saving Time (DST( ON/OFF adjustment (factory enabled), Non-volatile EEPROM memory protects programming indefinitely, Temporary override or permanent manual override available via control buttons
Intermatic
PART NUMBER: IN08976

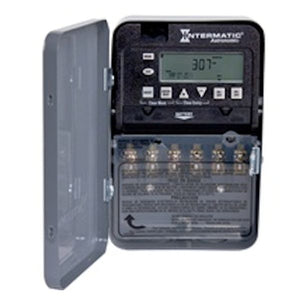

Intermatic 7 Day 30 amp 120/277 volt 2-Circuit SPST Astronomic Time Switch (Type 1 Steel Enclosure)
7 Day - 30 amp - 120/277 volt - 2-Circuit - SPST - Electronic - Astronomic
MPN#: 08976
Ships in 7 – 10 business days
- Regular price
- $351.08
- Sale price
- $351.08
- Regular price
-
$351.08
Shipping calculated at checkout.
